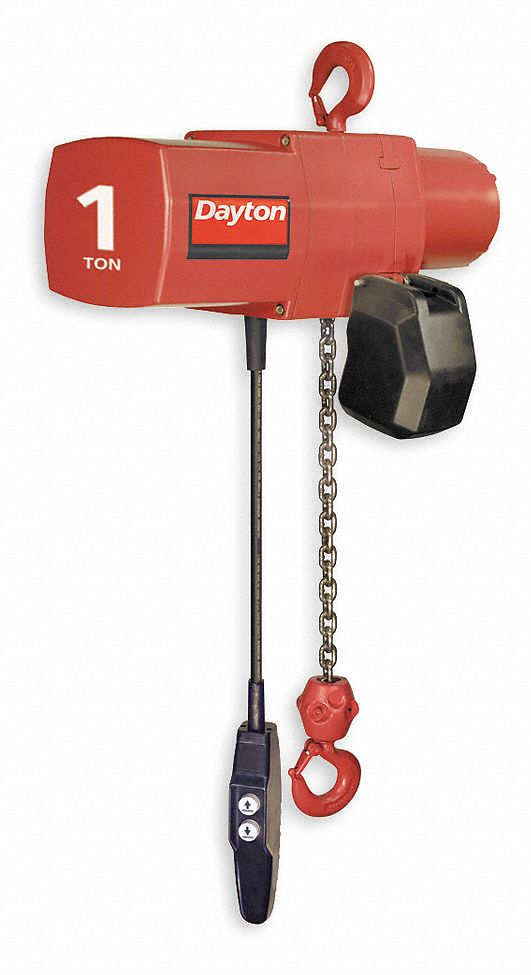

DAYTON Electric Chain Hoist, 2000 lb, 20ft, 16 fpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Chain Hoist, Capacity 2000 lb., Lift 20 ft., Number of Speeds 1, Lift Speed 16 fpm, Motor HP 1, Voltage 115/230, 1 Phase, Min. Between Hooks 18 In., 16 Amps @ Low Volts, Classification H4, Housing Depth 8-11/16, Housing Length 24-3/8 In., Housing Width 8-11/16 In.Brake Multiple Disc Motor, Clutch Overload Limiting, Control Ergonomic Nema 3R 24V Push Button Pendant w/Strain Relief, Control Cord 16 ft., Red60 Hz

Grainger Item #	3YB83
Price (ea.)	$2,364.00
Brand	DAYTON
Mfr. Model #	3YB83G
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	87.0
Availability	Typically in Stock
Catalog Page No.	1409
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Chain Hoist
Capacity		2000 lb.
Lift		20 ft.
Number of Speeds		1
Lift Speed		16 fpm
Motor HP		1
Voltage		115/230
Phase		1
Min. Between Hooks		18"
Amps @ Low Volts		16
Classification		H4
Housing Depth		8-11/16
Housing Length		24-3/8"
Housing Width		8-11/16"
Brake		Multiple Disc Motor
Clutch		Overload Limiting
Control		Ergonomic Nema 3R 24V Push Button Pendant w/Strain Relief
Control Cord		16 ft.
Color		Red
Hz		60
Lubrication		Positive, Oil Bath Gear Case, Provides Cooler Operation and Longer Gear Life
Thermal Protection		No
Standards		Metric Rated, Meets or Exceeds ASME/ANSI B30.16 Requirements
