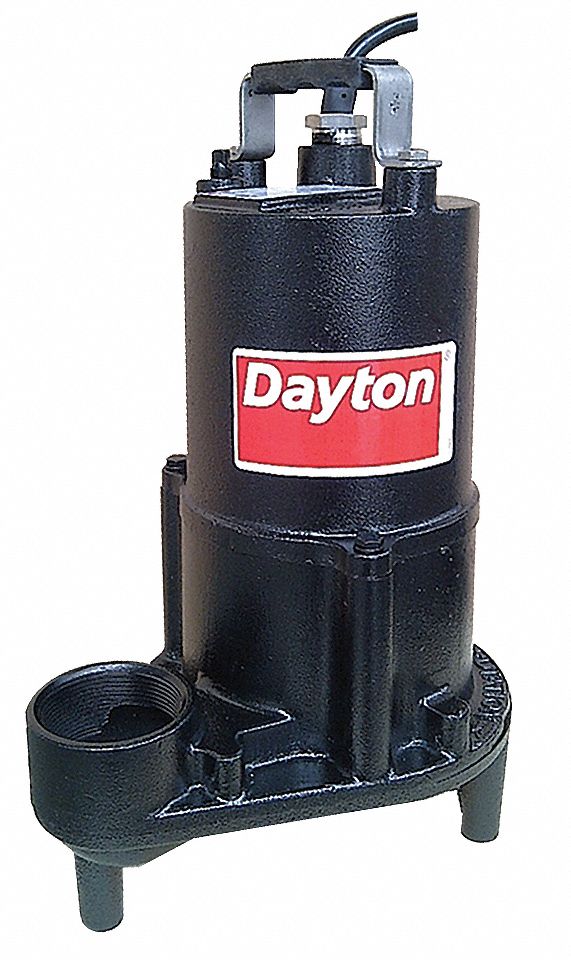

Effluent Pump, Submersible, 1/2 HP, Housing Cast Iron, Impeller Material Cast Iron, 115 Voltage, 6.4 Amps, Height 14 1/16 In., Dia. 9 5/8 In., Cord Length 20 Ft., Discharge NPT 2 In., Max. Dia. Solids 3/4 In., Max. Head 45 Ft., Max. Temp. 77 F, Phase 1, Intermittent Duty
  • Grainger Item #4HU70
    Price (ea.)$413.50
    BrandDAYTON
    Mfr. Model #4HU70
    UNSPSC #40151512
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)45.95
    Availability Typically in Stock
    Catalog Page No.4041
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemEffluent Pump, Submersible
TypeManual Operation (Switch Not Included)
HP1/2
Base MaterialCast Iron
HousingCast Iron
Top MaterialCast Iron
Mechanical SealSiC/Buna
Impeller MaterialCast Iron
Voltage115
Amps6.4
Height (In.)14-1/16
Dia. (In.)9-5/8
Cord Length (Ft.)20
Discharge NPT (In.)2
Shaft SealSilicon Carbide/Buna N
Max. Dia. Solids (In.)3/4
GPM of Water @ 5 Ft. of Head48
GPM of Water @ 10 Ft. of Head45
GPM of Water @ 20 Ft. of Head37
GPM of Water @ 40 Ft. of Head10
Max. Head (Ft.)45
GPM of Water @ 15 Ft. of Head42
GPM of Water @ 25 Ft. of Head32
GPM of Water @ 30 Ft. of Head26
Max. Temp. (F)77
Phase1
RPM3450
DutyIntermittent
Motor TypeOil Filled PSC
Bearing TypeBall
