Motors
>
HVAC Motors
>
Direct Drive Blower Motors

DAYTON Motor, Cap St, 1.5 HP, 1725, 115/208-230, 56Z

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Direct Drive Blower Motor, Capacitor-Start, 1-1/2 HP, Nameplate RPM 1725, Voltage 115/208-230, 1 Phase, Frame 56Z, Open Dripproof, Number of Speeds 1, Full Load Amps 13.2/7.2-6.6, 60 Hz, Stud Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 5/8 In., Shaft Length 2-1/4 In., Capacitor Required Included

Grainger Item #	5BE60
Price (ea.)	$607.50
Brand	DAYTON
Mfr. Model #	5BE60
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	37.6
Availability	Typically in Stock
Catalog Page No.	76
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

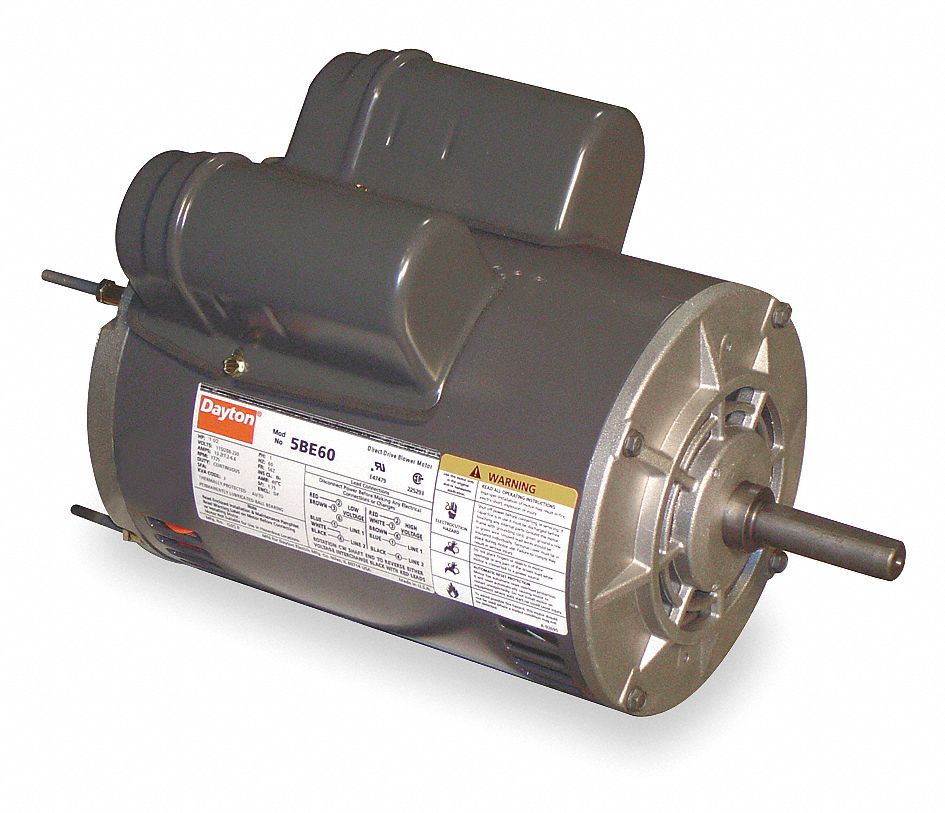

Motor, Cap St, 1.5 HP, 1725, 115/208-230, 56Z

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Direct Drive Blower Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		1-1/2
Nameplate RPM		1725
Voltage		115/208-230
Full Load Amps		13.2/7.2-6.6
Hz		60
Phase		1
Frame		56Z
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Insulation Class		B
Duty		Continuous
Number of Speeds		1
Mounting		Stud
Shaft Orientation		All Angle
Bearings		Ball
Thermal Protection		Auto
Rotation		CW/CCW
Body Dia.		6-1/2"
Length Less Shaft		10-1/16"
Shaft Dia.		5/8"
Shaft Length		2-1/4"
Capacitor Included		Yes
Capacitor Required		Included
Stud Location		Opposite Shaft End
Stud Pattern		4-9/32"
Stud Size		#10-32
Bolt Circle Dia.		6-1/16"
RPM Range		1400-1800
Application		Fan
