DAYTON Motor, 1/3 HP, 1075, 3 Spd, 115 V, 48YZ, OPAO

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Direct Drive Blower Motor, PSC, 1/3 HP, Nameplate RPM 1075, Voltage 115, 1 Phase, Frame 48YZ, Open Air-Over, Number of Speeds 3, Full Load Amps 5.5, 60 Hz, Ring/Stud Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 9-11/16 In., Shaft Dia. 1/2 In., Shaft Length 4 In., Capacitor Required 2MDV4

Grainger Item #	4M098
Price (ea.)	$75.65
Brand	DAYTON
Mfr. Model #	4M098
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	12.78
Availability	Typically in Stock
Catalog Page No.	69
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

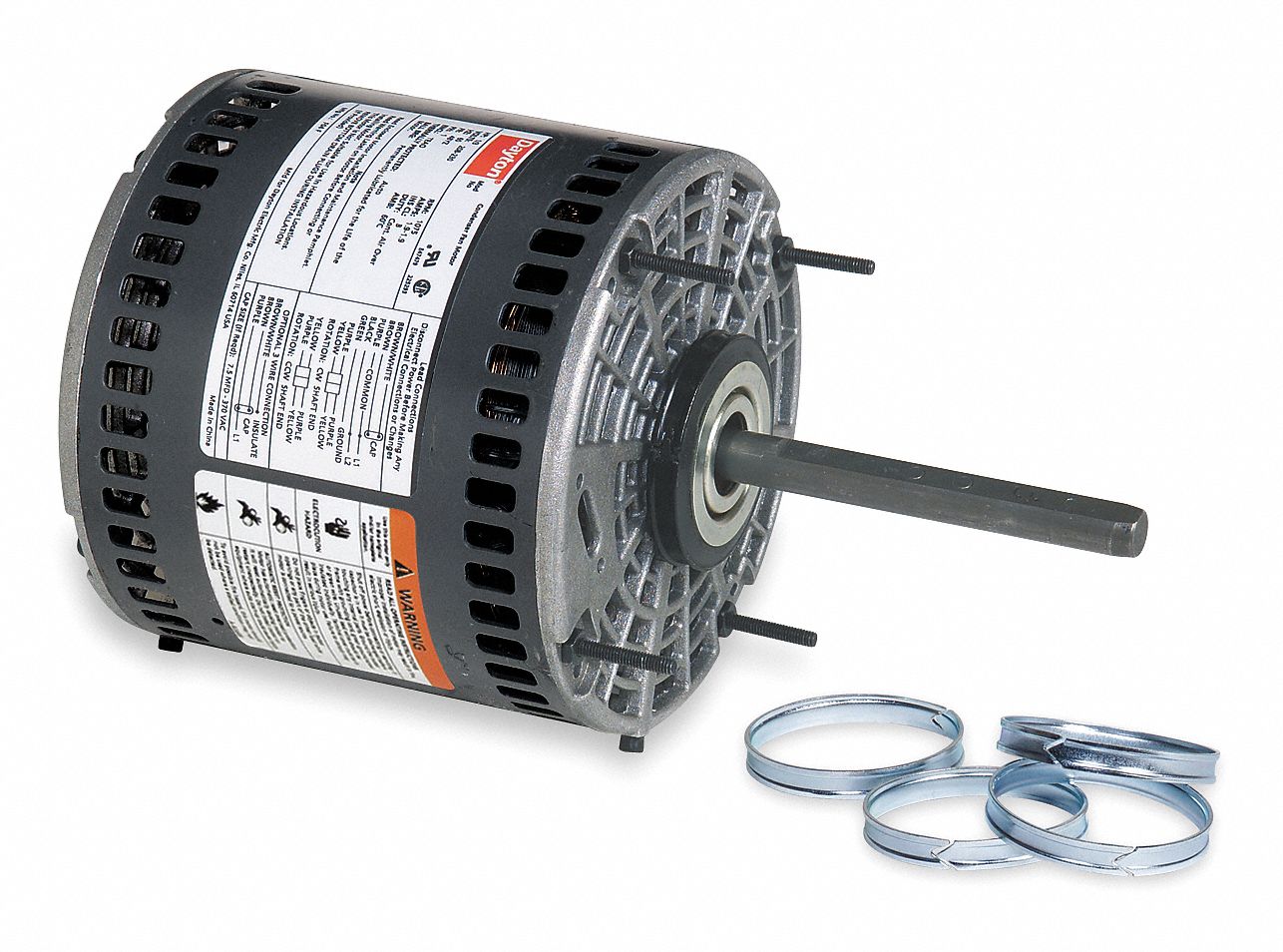

Motor, 1/3 HP, 1075, 3 Spd, 115 V, 48YZ, OPAO

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Direct Drive Blower Motor
Motor Type		PSC
Enclosure		Open Air-Over
HP		1/3
Nameplate RPM		1075
Voltage		115
Full Load Amps		5.5
Hz		60
Phase		1
Frame		48YZ
Service Factor		1.0
Max. Ambient Temp.		40 Degrees C
Insulation Class		B
Number of Speeds		3
Mounting		Ring/Stud
Bearings		Sleeve
Thermal Protection		Auto
Rotation		CW/CCW
Body Dia.		5-5/8"
Length Less Shaft		5-11/16"
Overall Length		9-11/16"
Shaft Dia.		1/2"
Shaft Length		4"
Capacitor Included		No
Capacitor Required		2MDV4
Ring to Ring Center		5-1/4"
RPM Range		1000-1380
Application		Direct-drive Furnace Blowers, Unit Heaters, Air Conditioners and many other Shaft-mounted Fan and Blower Uses
