Motors
>
HVAC Motors
>
Direct Drive Blower Motors

DAYTON DD Blower Motor, PSC, 1/3 HP, 1075, 115, 48YZ

| Write a Review
| Read all Reviews(2)
| Read all Ask & Answer

Direct Drive Blower Motor, PSC, 1/3 HP, Nameplate RPM 1075, Voltage 115, 1 Phase, Frame 48YZ, Open Air-Over, Number of Speeds 4, Full Load Amps 6.2, 60 Hz, Universal Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 11-15/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In., Capacitor Required 2MDV6

Grainger Item #	3LU79
Price (ea.)	$124.15
Brand	DAYTON
Mfr. Model #	3LU79
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.1
Availability	Typically in Stock
Catalog Page No.	69
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

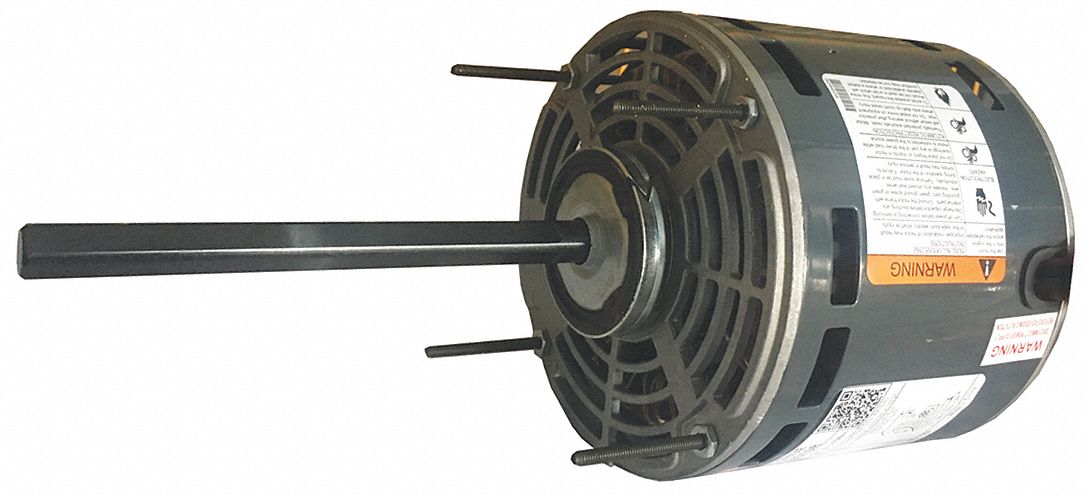

DD Blower Motor, PSC, 1/3 HP, 1075, 115, 48YZ

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Direct Drive Blower Motor
Motor Type		PSC
Enclosure		Open Air-Over
HP		1/3
Nameplate RPM		1075
Voltage		115
Full Load Amps		6.2
Hz		60
Phase		1
Frame		48YZ
Service Factor		1.0
Max. Ambient Temp.		40 Degrees C
Insulation Class		B
Duty		Continuous Air Over
Number of Speeds		4
Mounting		Universal
Bearings		Sleeve
Thermal Protection		Auto
Rotation		CW/CCW
Body Dia.		5-5/8"
Length Less Shaft		5-15/16"
Overall Length		11-15/16"
Shaft Dia.		1/2"
Shaft Length		6"
Capacitor Included		No
Capacitor Required		2MDV6
Ring to Ring Center		5-1/2"
RPM Range		1000-1380
Application		High Efficiency Performance on Furnace Blowers and Other Air-over Shaft-mounted Fan and Blower Equipment
