DAYTON AC Drive, 3 HP, NEMA 4X, 9.0A, 230V 3 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Digital AC Drive with CSP(TM), Drive Type Adjustable Frequency, Constant and Variable Torque, Max. HP 3, Max. Output Amps 9.0, 208/230 Voltage, 230 Voltage Output, Input Phase AC 3, Output Phase AC 3, Starting Torque (Percent) 200, Torque @ 1 Hz (Percent) 100, Frequency Setting (Hertz) 50/60, Output Frequency (Hertz) 0 to 240, Acceleration Adjust (Sec.) 0.1 to 180, Deceleration Adjust (Sec.) 0.3 to 180, Injection Braking, NEMA-4X / IP65 Enclosure, Height (In) 9.80, Width (In) 7.55, Depth (In.) 7

Grainger Item #	13E652
Price (ea.)	$792.00
Brand	DAYTON
Mfr. Model #	13E652
UNSPSC #	26111503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.95
Availability	Typically in Stock
Catalog Page No.	340
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

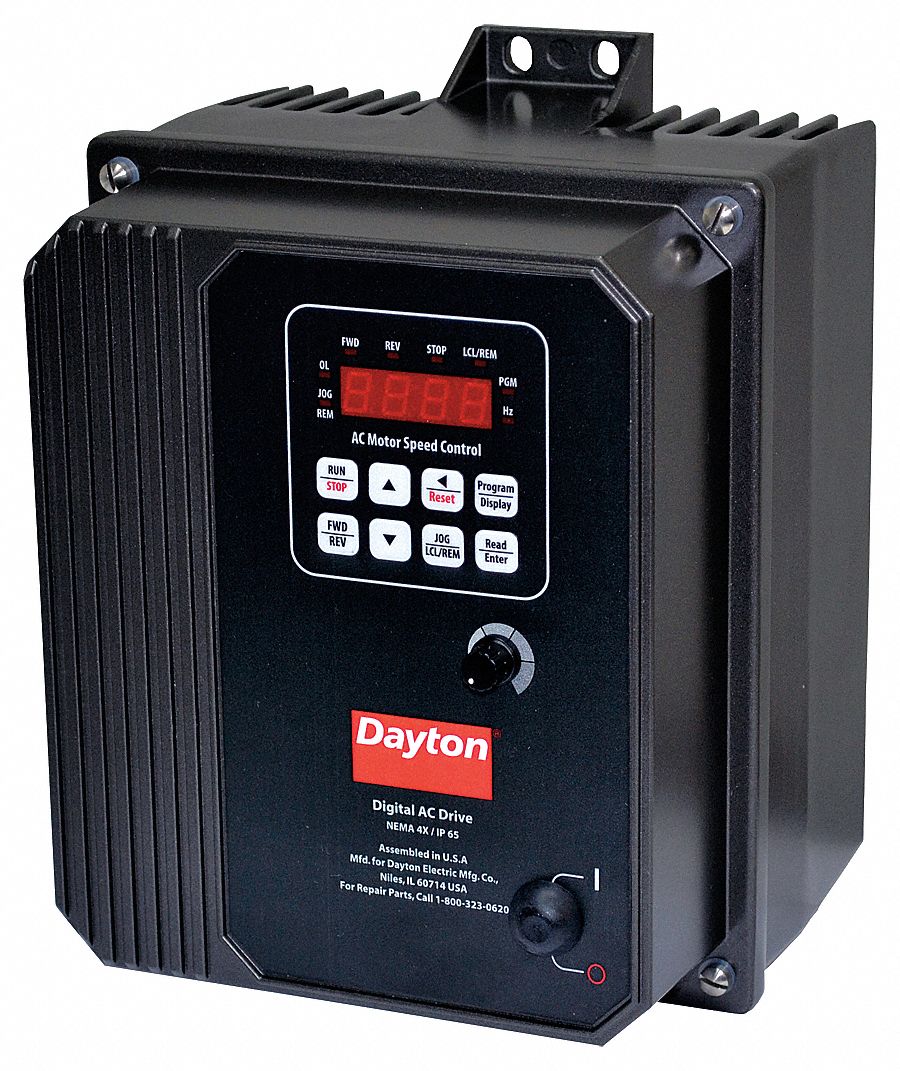

AC Drive, 3 HP, NEMA 4X, 9.0A, 230V 3 Ph

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Digital AC Drive with CSP(TM)
Drive Type		Adjustable Frequency, Constant and VariableTorque
Max. HP		3
Max. Output Amps		9.0
Voltage		208-230
Voltage Output		230
Input Phase AC		3
Output Phase AC		3
Starting Torque (%)		200
Torque @ 1 Hz (%)		100
Frequency Setting (Hertz)		50/60
Output Frequency (Hertz)		0 to 240
Acceleration Adjust (Sec.)		0.1 to 180
Deceleration Adjust (Sec.)		0.3 to 180
Dynamic Braking		Injection Braking
Enclosure		NEMA 4X
Height (In.)		9.80
Width (In.)		7.55
Depth (In.)		7.25
Functions		Frequency Setting, Torque Mode, GFCI Operation, 50/60 Hz Motor, Run/Stop, Forward/Reverse Control, Spin Start, Auto/Manual Reset, Power Dip Ride Through, Stop Mode, Holding Torque, DC Inj Braking, Jog/Local Remote, S-Curve Accel/Decel, Skip Frequency, Motor Overload, Current Limit, Switching Freq, Flux Vector, Relay Operation, Freq Reached, Fault Log
Control Type		Keypad and Digital Display
Key Pad Lockout		No
Start/Stop Control		Run/Stop Pushbutton Std
Protection		Electronic Inrush Current Limit (EICL), Ride Through, Regeneration Protection, Overload, Current Limit, Short Circuit, Overvoltage, Undervoltage, Nuisance Tripping, Phase loss, MOV Input Transient Suppression
Control Method		Sensorless Flux Vector with Static AutoTune w/ Boost, Volts per Hertz
Accepts Input Control Signal		With IODA Option
Displays		Digital Display, Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage
Digital Readout		Speed in Hertz or RPM, Motor or Buss Voltage, Motor Current, Custom Units
For Use With		3-Phase Inverter Duty or TENV Motor
Agency Compliance		UL, CSA, CE
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		RoHS Compliant
