Motors
>
DC Motors
>
DC Permanent Magnet Motors

DAYTON DC Motor, PM, TENV, 1/35 HP, 2350 rpm, 12VDC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

DC Motor, Permanent Magnet, Totally Enclosed Nonventilated, 1/35 HP, 2350 Nameplate RPM, Voltage 12VDC, Full Load Amps 3.8NEMA/IEC Frame Nonstandard, Mounting Stud, Thermal Protection None, A Insulation Class, Bearings Sleeve, Ambient Temperature 40 Degrees C, CW/CCW Rotation, Overall Length 4-7/8 In., 3-7/8 In. Length Less Shaft, Body Dia. 3-7/32 In., Shaft Dia. 1/4 In., Shaft Length 1 In.Stud Quantity (2) #8-32, Stud Location Shaft End, 2-5/16 In. OC, Sheath Dia. 1/2 In.RPM Range 2350-3600

Grainger Item #	3LCH7
Price (ea.)	$47.35
Brand	DAYTON
Mfr. Model #	CCC-003
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.69
Availability	Typically in Stock
Catalog Page No.	39
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

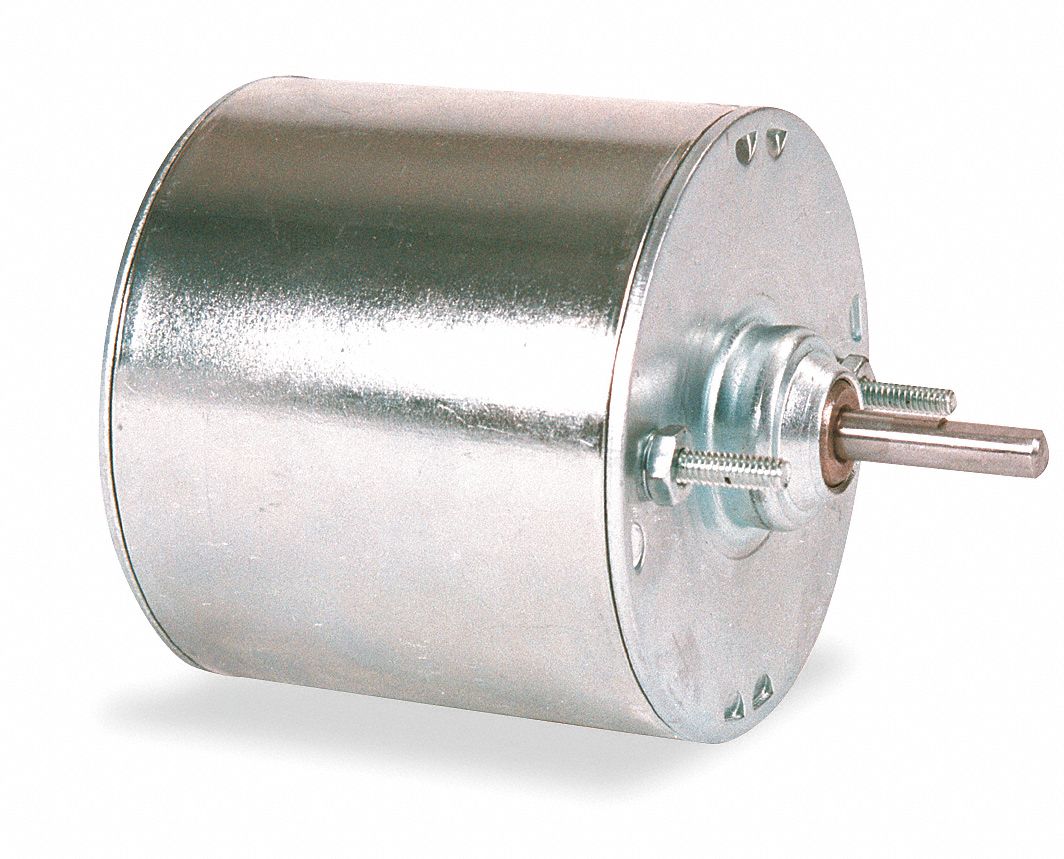

DC Motor, PM, TENV, 1/35 HP, 2350 rpm, 12VDC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Motor
Motor Type		Permanent Magnet
Enclosure		Totally Enclosed Nonventilated
HP		1/35
Nameplate RPM		2350
Voltage		12VDC
Full Load Amps		3.8
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Mounting		Stud
Thermal Protection		None
Insulation Class		A
Bearings		Sleeve
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Overall Length		4-7/8"
Length Less Shaft		3-7/8"
Body Dia.		3-7/32"
Shaft Dia.		1/4"
Shaft Length		1"
Stud Quantity		(2) #8-32
Stud Location		Shaft End, 2-5/16" OC
Sheath Dia.		1/2"
RPM Range		2350-3600
Features		8" L Positive Lead and 37" L Negative Lead, Both with Ring Terminals

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Required Accessories

More Accessories

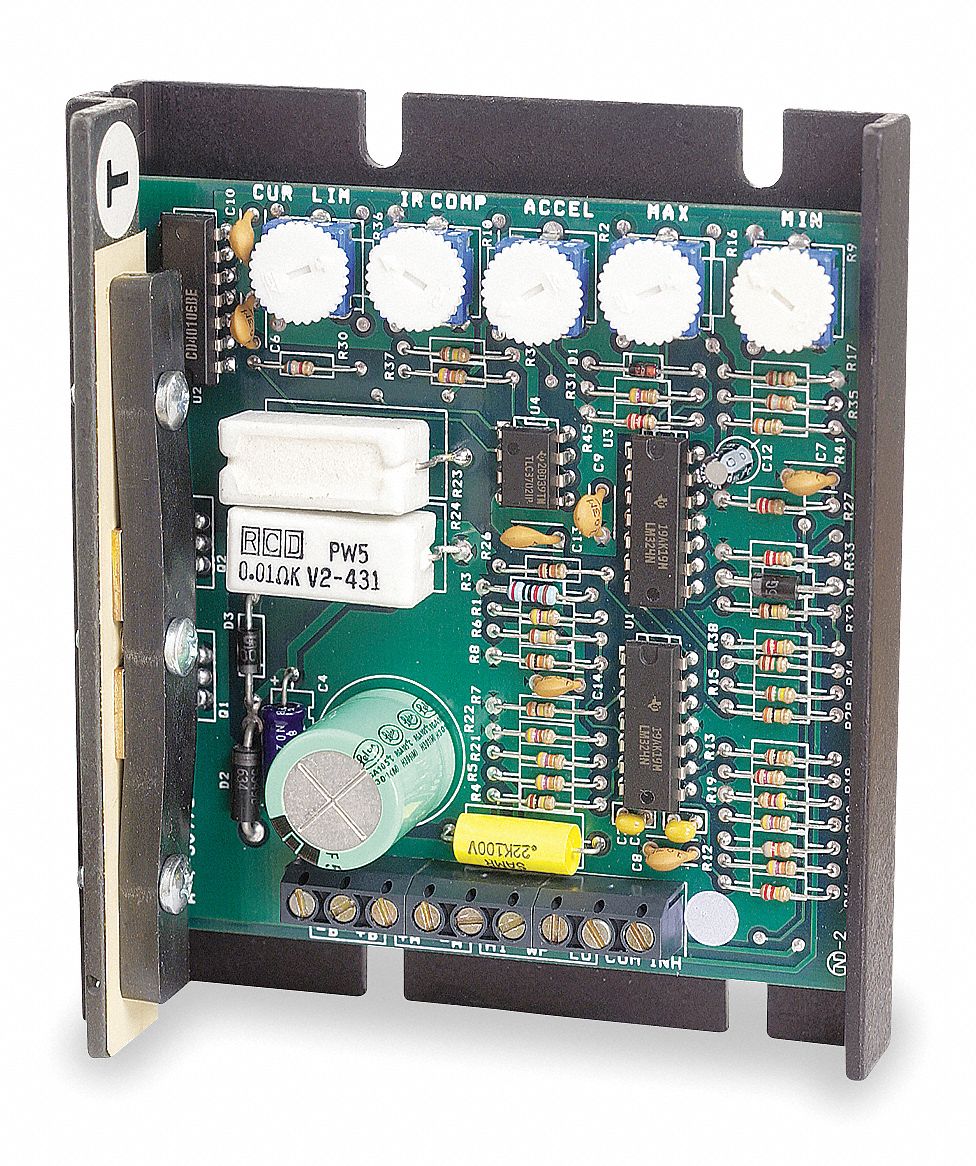

Control, DC Speed

Brand:

DART CONTROLS

Grainger Item #:

3VU56

Price (ea.):

$253.25

	Item #	Description	Brand Mfr. Model #	Availability	Price
	3VU56	Control, DC Speed >More Details... Country of Origin: USA	DART CONTROLS 65E10-12	Typically in Stock	$253.25
