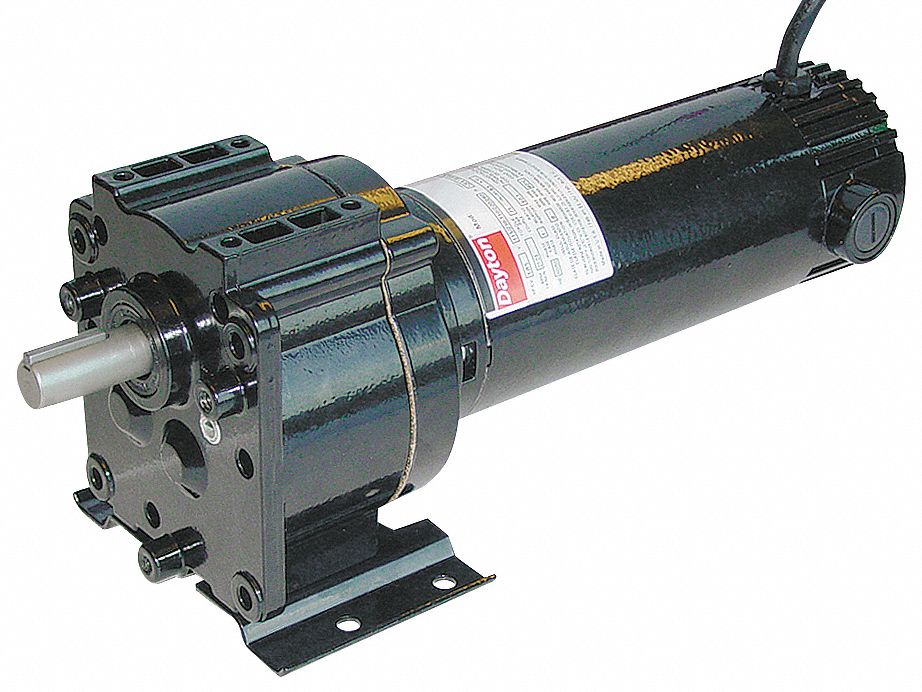

DAYTON Gearmotor, 22 RPM, 90vdc

| Write a Review
| Read all Reviews
| Read all Ask & Answer

DC Gearmotor, Parallel Shaft, Voltage Rating 90VDC, DC PhaseNameplate RPM 22, Full Load Torque (In.-Lbs.) 280.0, Overhung Load (Lb.) 150, Input HP 1/8, Gear Ratio 82:1, Full Load Amps 1.41TENV Enclosure, None Thermal Protection, All Position MountingReplacement Brushes 6YHY6

Grainger Item #	4Z130
Price (ea.)	$509.50
Brand	DAYTON
Mfr. Model #	4Z130
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	13.0
Availability	Typically in Stock
Catalog Page No.	122
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Gearmotor
Type		Parallel Shaft
Voltage Rating		90VDC
Phase		DC
Shaft Orientation		Parallel
Nameplate RPM		22
Full Load Torque (In.-Lbs.)		280.0
Overhung Load (Lb.)		150
Input HP		1/8
Gear Ratio		82:1
Full Load Amps		1.41
Enclosure		TENV
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		All Position
Length Less Shaft (In.)		10-1/8
Shaft Dimensions (In.)		5/8 x 1 1/2
Bearings		Needle Roller and Thrust Balls on Case, Ball on Motor
Lubrication		Permanent Heavy Fluid Gear Oil
Brushes		Externally Replaceable
Gear Case		Die Cast Aluminum
Gears		Hardened Steel
Seals		On Input and Output Shaft
Replacement Brushes		6YHY6
RPM Range		16 to 30

Other Popular Terms for this Product

• Gear Motors (2452)

• Parallel Shaft Gearmotors (1533)

• DC Gearmotors (774)

• Permanent Magnet Gearmotors (772)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Required Accessories

More Accessories

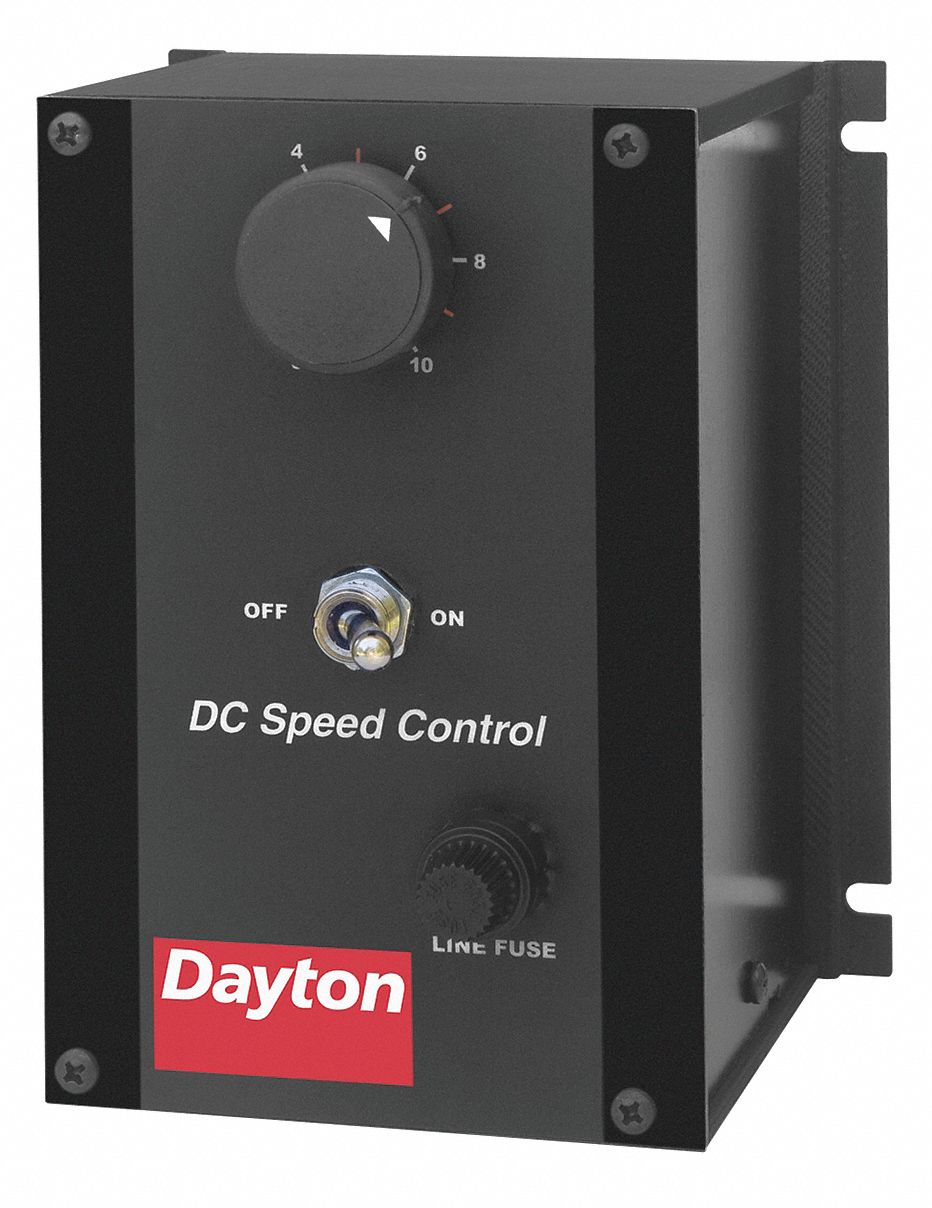

Control, DC Speed
