DAYTON Condenser Fan Motor, 1/3 HP, 1625 rpm, 60Hz

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Condenser Fan Motor, PSC, 1/3 HP, Nameplate RPM 1625, Voltage 208-230, 48YZ Frame, Open Air-Over, Number of Speeds 1, Full Load Amps 2.6-3.0, Cradle Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 60 Degrees C, CW/CCW Rotation, Overall Length 11-11/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In., Capacitor Required Included

Grainger Item #	3M265
Price (ea.)	$200.00
Brand	DAYTON
Mfr. Model #	3M265
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	15.1
Availability	Typically in Stock
Catalog Page No.	70
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

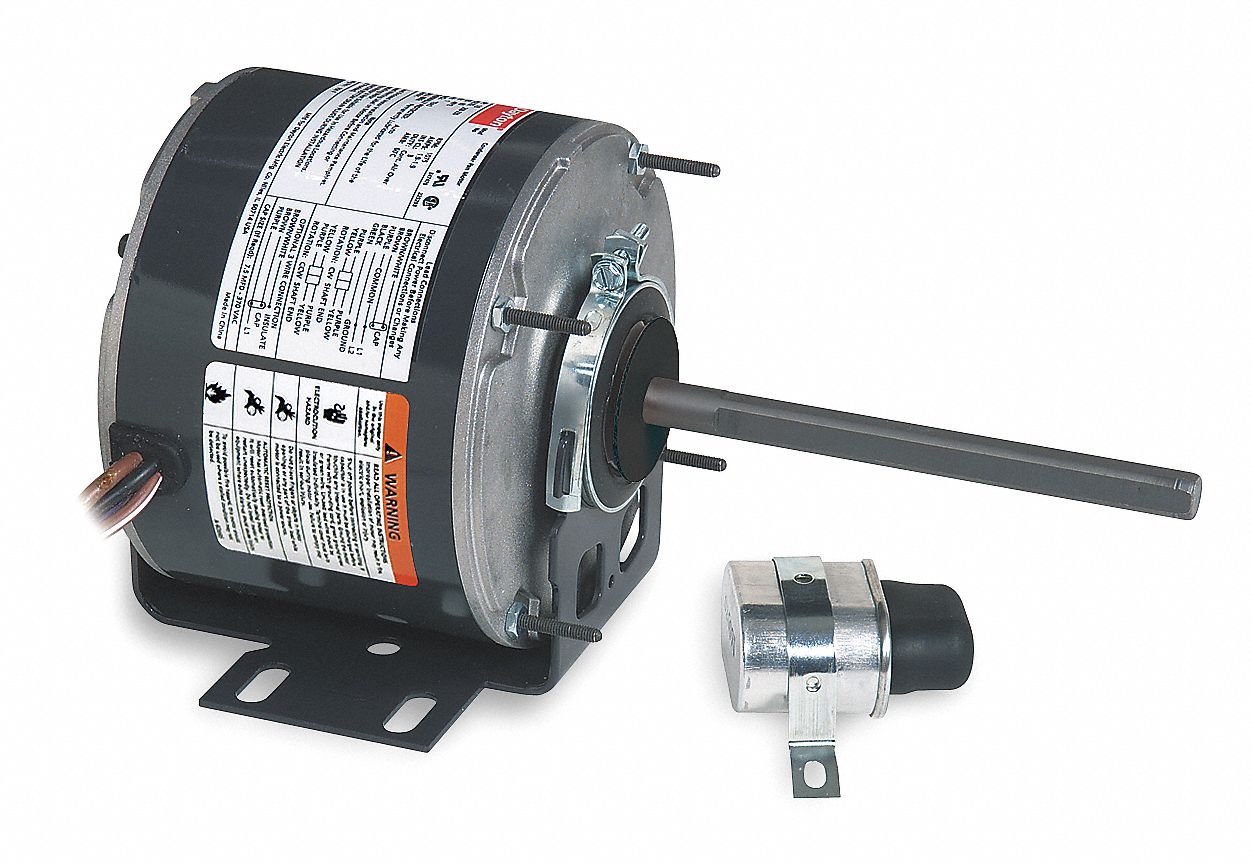

Condenser Fan Motor, 1/3 HP, 1625 rpm, 60Hz

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Condenser Fan Motor
Motor Type		PSC
Enclosure		Open Air-Over
HP		1/3
Number of Speeds		1
Nameplate RPM		1625
NEMA/IEC Frame		48YZ
Frame		48YZ
Voltage		208-230
Hz		60
Phase		1
Full Load Amps		2.6-3.0
Mounting		Cradle
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.0
Bearings		Sleeve
Max. Ambient Temp.		60 Degrees C
Rotation		CW/CCW
Overall Length		11-11/16"
Length Less Shaft		5-11/16"
Shaft Dia.		1/2"
Shaft Length		6"
Body Dia.		5-5/8"
Stud Quantity		4
Stud Pattern		3 5/8 x 3 5/8"
Stud Size		3/4"
Lead Length		30"
Shaft Type		Double Flat
Shaft Orientation		Up
Features		Reversing Plug, Totally Enclosed Shaft Endshield and Shell
Duty		Continuous Air-Over
Capacitor Required		Included
RPM Range		1400-1800
Standards		UL Recognized (E47479), CSA Certified (225293)
