DAYTON Combo Soft Starter, Bypass, 10.0HP, 16A, HOA

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Combination Soft Starter, Bypass, Max. HP 10.0, Max. Output Amps 16, Short Circuit Protection Self Protected 14 x FLA, Input Voltage 110/480VAC at 50/60Hz, Output Voltage 240/480VAC at 50/60Hz, Starting Torque Max 400% FLC Allowed, Acceleration Adjust (Sec.) 0 to 30, Deceleration Adjust (Sec.) 0 to 30, Dynamic Braking No, Enclosure Type UL Type 1, 3R, 4, 4X, 12, Height 13.3, Width 11.3, Depth 7.09, Control Type 2 Phase, Key Pad Lockout Enclosure Padlock, Start/Stop Control Hands/Off//Auto

Grainger Item #	6FDU6
Price (ea.)	$2,634.00
Brand	DAYTON
Mfr. Model #	6FDU6
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.3
Availability	Typically in Stock
Catalog Page No.	338
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

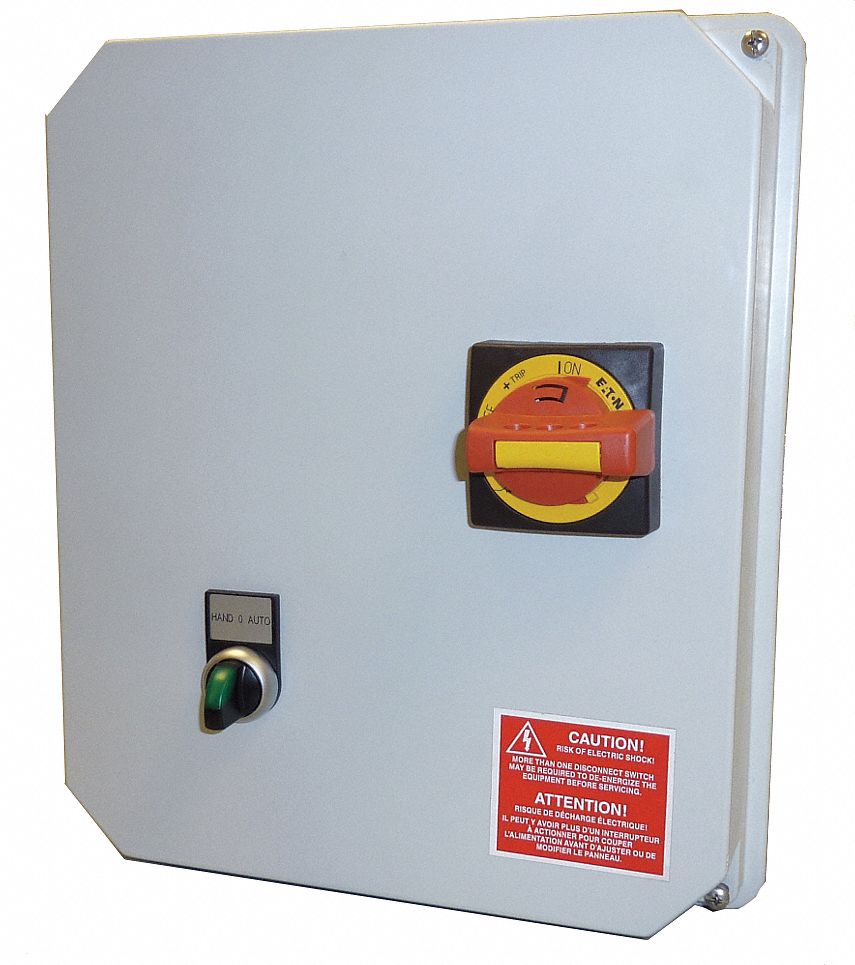

Combo Soft Starter, Bypass, 10.0HP, 16A, HOA

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Combination Soft Starter
Type		Bypass
Max. HP		10.0
Max. Output Amps		16
Short Circuit Protection		Self Protected 14 x FLA
Input Voltage		110/480VAC at 50/60Hz
Output Voltage		240/480VAC at 50/60Hz
Starting Torque		Max 400% FLC Allowed
Acceleration Adjust (Sec.)		0 to 30
Deceleration Adjust (Sec.)		0 to 30
Dynamic Braking		No
Enclosure Type		UL Type 1,3R,4,4X,12
Height		13.3"
Width		11.3"
Depth		7.09"
Control Type		2 Phase
Key Pad Lockout		Enclosure Padlock
Start/Stop Control		Hands/Off//Auto
Control Method		Adjustable Dial
Accepts Input Control Signal		Remote Contact
Display		No
Includes		Illuminated Hands/Off/Auto
For Use With		3 Phase Inverter Duty Motor
Standards		UL/CSA/CE
