Pumps
>
Centrifugal Pumps
>
Chemical-Resistant C-Face Pump Heads

4 In.

| Write a Review
| Read all Reviews
| Read all Ask & Answer

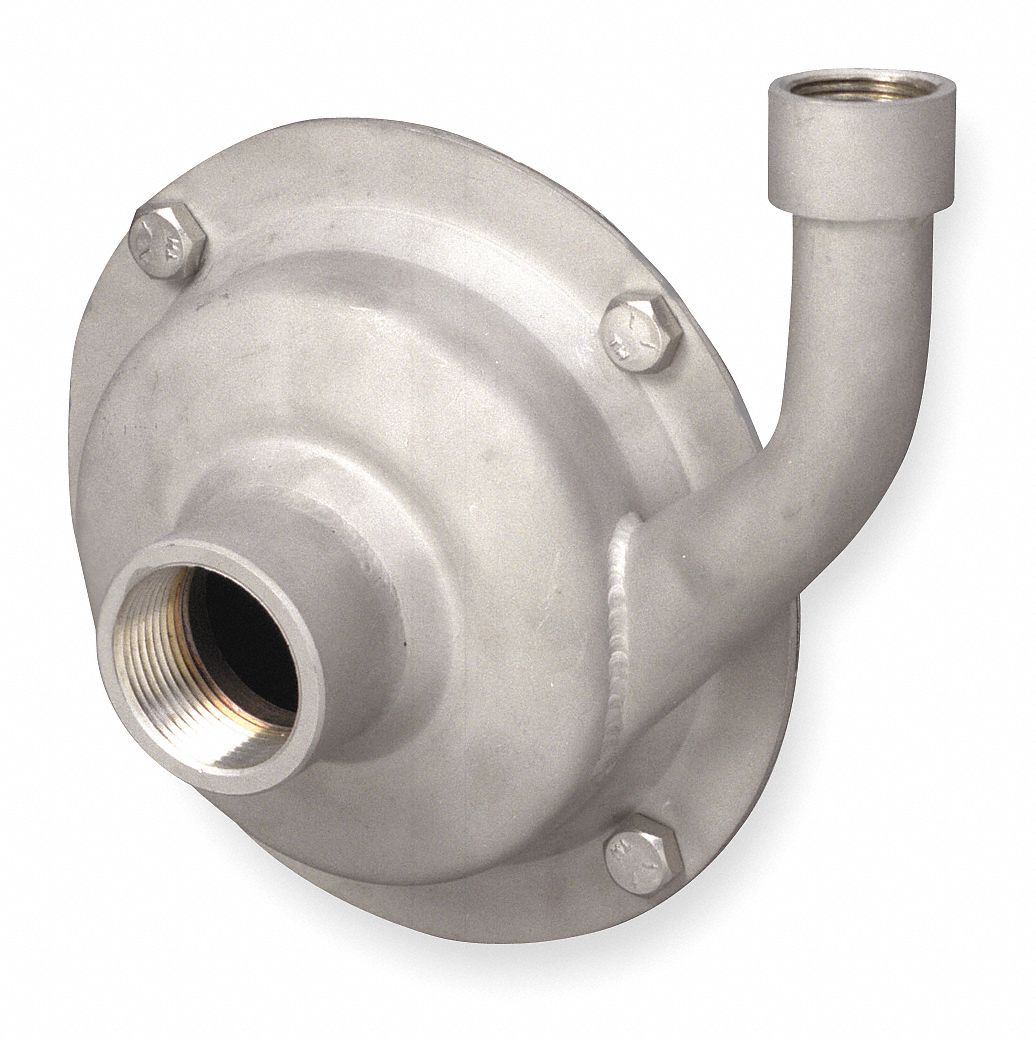

Centrifugal Pump Head, Chemical Transfer, Straight, HP Required 1, 3450 RPM, Inlet 1 1/2 In., Outlet 1 1/4 In., Use with Frame Number 56J, Impeller Material 304 SS, Housing Material 304 SS, Max. Head 65 Ft., Inlet Pressure 122 PSI, Impeller Type Closed, Max. Dia. Solids 1/8 In., Length 2 5/8 In., Width 8 5/16 In., Height 7 13/16 In., Warranty Length 1 Year, Includes Mounting Adapter, Hardware, Seal, O-ring

Grainger Item #	4JMY4
Price (ea.)	$483.00
Brand	DAYTON
Mfr. Model #	4JMY4
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.8
Availability	Typically in Stock
Catalog Page No.	4089
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump Head
Type		Chemical Transfer, Straight
HP Required		1
RPM		3450
Inlet (In.)		1-1/2
Outlet (In.)		1-1/4
Use with Frame Number		56J
Wetted Materials		Carbon, Ceramic, 304 SS, Viton
Impeller Material		304 SS
Housing Material		304 SS
Screw Material		304 Stainless Steel
Seal Type		Mechanical
Seal Material		Carbon, Ceramic, Viton
Seal Application		Nonflammable Liquids Compatible with Pump Components
Max. Liquid Temp. (F)		200
GPM of Water @ 5 Ft. of Head		90
GPM of Water @ 10 Ft. of Head		84
GPM of Water @ 15 Ft. of Head		79
GPM of Water @ 20 Ft. of Head		77
GPM of Water @ 25 Ft. of Head		70
GPM of Water @ 30 Ft. of Head		57
GPM of Water @ 40 Ft. of Head		48
GPM of Water @ 50 Ft. of Head		24
GPM of Water @ 60 Ft. of Head		8
Max. Head (Ft.)		65
Max. GPM @ Head (Ft.)		90 @ 5
Best Efficiency GPM @ Head (Ft.)		40 @ 40
Min. GPM @ Head (Ft.)		8 @ 60
Best Efficiency Range GPM @ Head (Ft.)		66 @ 20 to 21 @ 50
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		150
Max. Fluid Viscosity		31 SSU
Inlet Pressure (PSI)		122
Impeller Type		Closed
Duty		Continuous
Max. Dia. Solids (In.)		1/8
Port Rotation		90 Increments
Drain Plug		No
Manufacturers Warranty Length		1 Year
Application		Liquids Transfer, Circulation, Chemical Processing, Cooling, Pressure Boosting and Circulating
For Use With		Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
Height (In.)		7-13/16
Length (In.)		2-5/8
Width (In.)		8-5/16
Includes		Mounting Adapter, Hardware, Seal, O-ring
