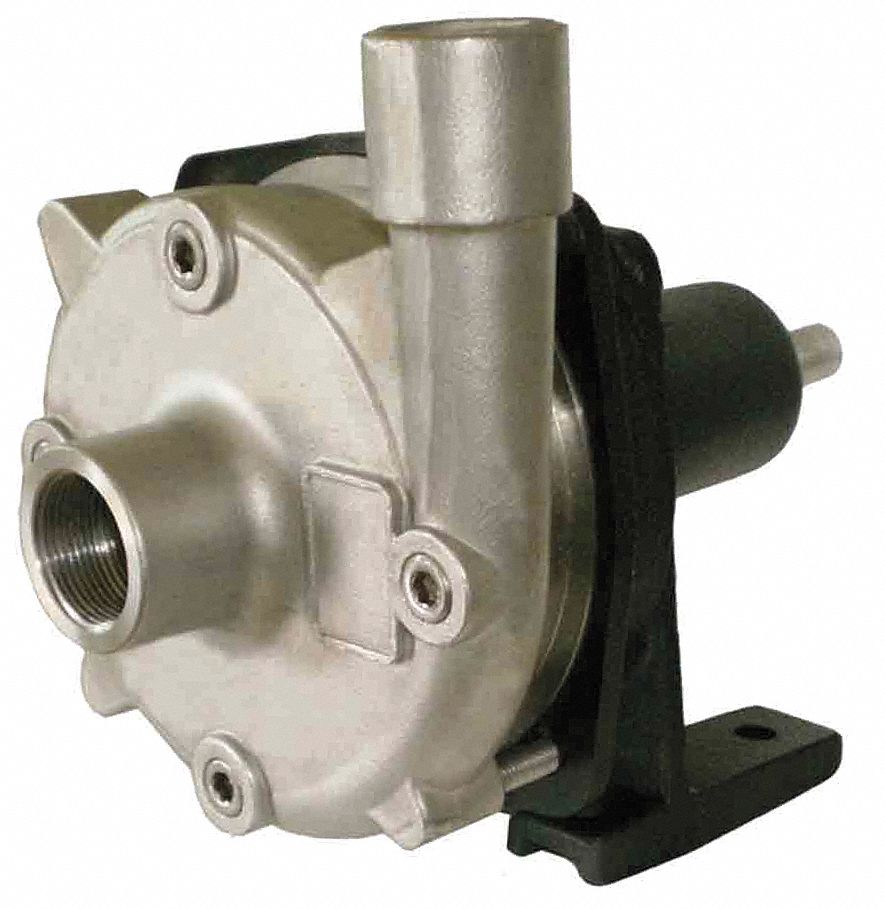

DAYTON Centrifugal Pump Head, 1-1/2 HP, SS

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump Head, Chemical Transfer, Straight, 1-1/2 HP Required, Inlet 1-1/4 In., Outlet 1 In., Wetted Materials SUS316, Carbon, Ceramic, 304 SS, Viton, Impeller Material 316 SS, Housing Material Stainless steel, Shaft Material 316 SS, Seal Type Mechanical, Seal Material Carbon, Ceramic, Viton, Stainless Steel, Max. Liquid Temp. 200 F, Max. Head 103 Ft., Max. Pressure 44 PSI, Max. Fluid Viscosity 31 SSU, Closed Impeller Type, Max. Dia. Solids 1/8 In.

Grainger Item #	10X669
Price (ea.)	$846.00
Brand	DAYTON
Mfr. Model #	10X669
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.85
Availability	Typically in Stock
Catalog Page No.	4087
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump Head
Type		Chemical Transfer, Straight
HP Required		1-1/2
Inlet (In.)		1-1/4
Outlet (In.)		1
Wetted Materials		SUS316,Carbon, Ceramic, 304 SS, Viton
Impeller Material		316 SS
Housing Material		Stainless steel
Shaft Material		316 SS
Screw Material		304 Stainless Steel
Seal Type		Mechanical
Seal Material		Carbon, Ceramic, Viton, Stainless Steel
Seal Application		Nonflammable Liquids Compatible with Pump Components
Max. Liquid Temp. (F)		200
GPM of Water @ 5 Ft. of Head		56
GPM of Water @ 10 Ft. of Head		55.7
GPM of Water @ 15 Ft. of Head		54.6
GPM of Water @ 20 Ft. of Head		53.3
GPM of Water @ 30 Ft. of Head		49.5
GPM of Water @ 40 Ft. of Head		46.3
GPM of Water @ 50 Ft. of Head		42
GPM of Water @ 60 Ft. of Head		37.6
GPM of Water @ 70 Ft. of Head		32
GPM of Water @ 80 Ft. of Head		25.8
Max. Head (Ft.)		103
Max. Pressure (PSI)		44
Best Efficiency GPM @ Head (Ft.)		37.6 @ 60
Best Efficiency Range GPM @ Head (Ft.)		46.3 @ 40 to 32 @ 70
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		150
Max. Fluid Viscosity		31 SSU
Inlet Pressure (PSI)		106
Impeller Type		Closed
Bearing Type		Ball
Duty		Continuous
Max. Dia. Solids (In.)		1/8
Drain Plug		3/8In NPT
Manufacturers Warranty Length		1 Year
Application		Liquids Transfer, Circulation, Chemical Processing, Cooling, Pressure Boosting and Circulating
For Use With		Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
Height (In.)		9.03
Length (In.)		11.65
Width (In.)		7.93
