Pumps
>
Centrifugal Pumps
>
Chemical-Resistant Pumps

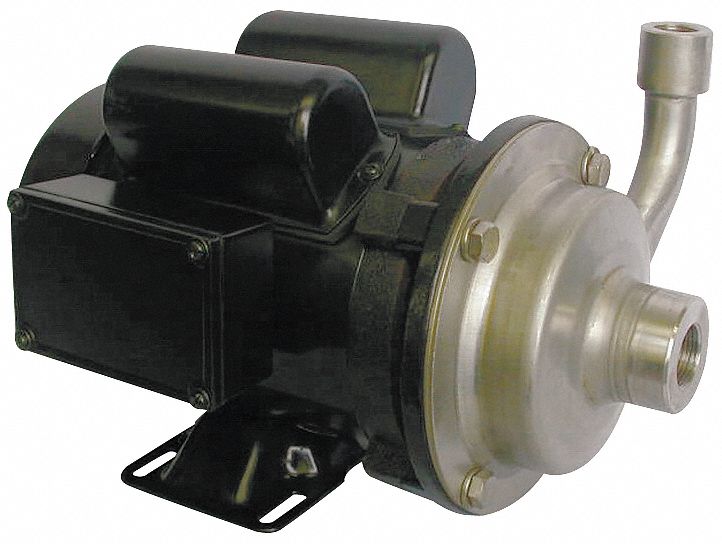

DAYTON Pump, Centrifugal, SS, 1/3 HP, 1 PH

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Chemical Resistant, 1/3 HP, 1 Phase, Stainless Steel Housing, Stainless Steel Impeller , Viton, Carbon/Ceramic Seals, Voltage 115/230, 6.8/3.4 Amps, 3/4 In Inlet, 1/2 In Outlet, Motor Enclosure TEFC, Max. Head 48 Ft., Continuous Duty, 1/8 In Max. Dia. Solids, CUS Agency Compliance, Manufacturers Warranty Length 1 Year, Includes Manual

Grainger Item #	5WXR9
Price (ea.)	$709.00
Brand	DAYTON
Mfr. Model #	5WXR9
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	29.05
Availability	Typically in Stock
Catalog Page No.	4089
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Chemical Resistant
HP		1/3
Phase		1
Inlet Type		3/4" NPT
Voltage		115/230
Amps		6.8/3.4
Housing Material		316 Stainless Steel
Impeller Material		Stainless Steel
Seal Material		Viton, Carbon/Ceramic
Seal Type		Mechanical
Outlet (In.)		1/2 NPT
Motor Enclosure		TEFC
GPM of Water @ 5 Ft. of Head		21
GPM of Water @ 10 Ft. of Head		20
GPM of Water @ 15 Ft. of Head		18
GPM of Water @ 20 Ft. of Head		15
GPM of Water @ 25 Ft. of Head		11
GPM of Water @ 30 Ft. of Head		4
GPM of Water @ 40 Ft. of Head		1
Max. Head (Ft.)		48
Max. GPM @ Head (Ft.)		21 @ 5
Best Efficiency GPM @ Head (Ft.)		10 @ 26
Min. GPM @ Head (Ft.)		1 @ 40
Best Efficiency Range GPM @ Head (Ft.)		19-6 @ 11-28
Length (In.)		12-5/8
Width (In.)		9-1/4
Height (In.)		7-7/8
Hz		60
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		Capacitor-Start, Capacitor-Run
Service Factor		1.6
Wetted Materials		316 Stainless Steel, Viton, Carbon, Ceramic
Shaft Material		Stainless Steel
Screw Material		Stainless Steel
Max. Liquid Temp. (F)		300
Max. Specific Gravity		1
Max. Case Pressure (PSI)		150
Max. Fluid Viscosity		260 SSU
Inlet Pressure (PSI)		128
Impeller Type		Closed
Bearing Type		Ball
Duty		Continuous
Max. Dia. Solids (In.)		1/8
Port Rotation		90 Degrees Increments
Drain Plug		No
Agency Compliance		CUS
Manufacturers Warranty Length		1 Year
Application		Liquid Transfer, Recirculation, Chemical Processing, Cooling, Pressure Boosting, Circulating
For Use With		Clear, Non-Flammable/Non-Abrasive Liquids, Compatible with Pump Material
Includes		Manual
