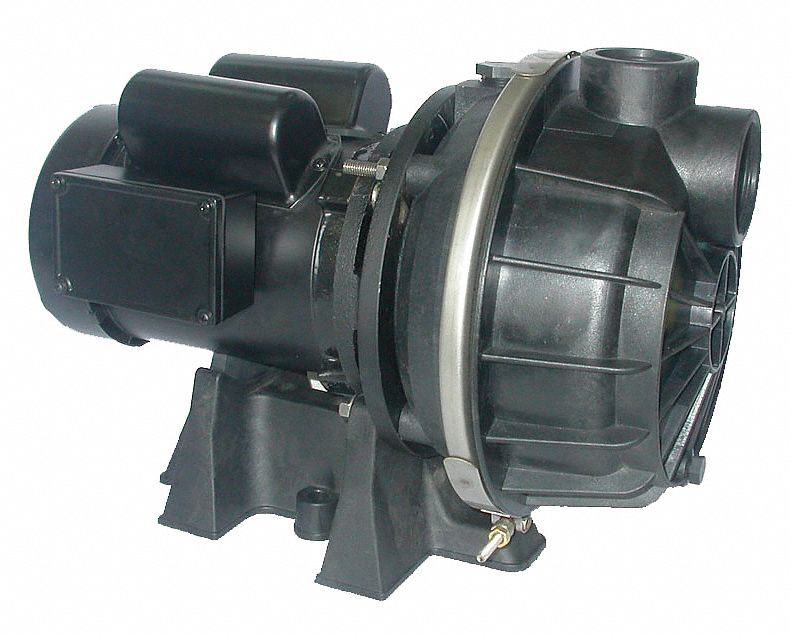

DAYTON Pump, Centrifugal, 1 HP, 1 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Self-Priming, Housing Material Thermoplastic, Inlet 2 In, Outlet 1-1/2 In, 1 HP, 1 Phase, Voltage 115/208-230, Amps 17.13/9.42-8.56, 60 Hz, Suction Lift 25 Ft., Shut-Off 106 Ft., Max. Pressure 46 PSI, Stages 1, Motor Enclosure TEFC, Motor Type Capacitor-Start, Capacitor-Run, 3450 RPM, Application Water Transfer, Dewatering and Lawn Sprinkling for Residential and Commercial Uses, Includes Manual

Grainger Item #	5RWP4
Price (ea.)	$681.50
Brand	DAYTON
Mfr. Model #	5RWP4
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	50.8
Availability	Limited quantity available
Catalog Page No.	4079
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Self-Priming
HP		1
Phase		1
Voltage		115/208-230
Amps		17.13/9.42-8.56
Hz		60
Inlet (In.)		2
Outlet (In.)		1-1/2
Suction Lift (Ft.)		25
Length (In.)		18-5/8
Width (In.)		6-9/16
Height (In.)		11-13/16
GPM @ 10 PSI		55
GPM @ 15 PSI		51
GPM @ 20 PSI		45
GPM @ 25 PSI		38
GPM @ 30 PSI		31
GPM @ 35 PSI		23
GPM @ 40 PSI		17
Shut-Off (Ft.)		106
Max. Pressure (PSI)		46
Best Efficiency GPM @ Head (Ft.)		31 @ 70
Best Efficiency Range GPM @ Head (Ft.)		16-52 GPM @ 100-53 Ft.
Stages		1
Motor Enclosure		TEFC
Motor Type		Capacitor-Start, Capacitor-Run
NEMA/IEC Frame		56J
RPM		3450
Service Factor		1.25
Wetted Materials		Thermoplastic, SS,Viton,Carbon,Ceramic.
Housing Material		Thermoplastic
Impeller Material		Noryl
Volute Material		Thermoplastic
Seal Type		Viton Fitted Mechanical Shaft
Seal Material		Viton, Carbon, Ceramic, Stainless Steel
Seal Application		Water
Shaft Material		Stainless Steel
Screw Material		Stainless Steel
GPM of Water @ 2 Ft. of Head		62
Thermal Protection		Automatic Reset
Bearing Type		Double Shielded Pre Lubricated Ball
Max. Specific Gravity		1
Max. Case Pressure (PSI)		80
Max. Fluid Viscosity		31 SSU
Inlet Pressure (PSI)		34
Impeller Type		Closed
Duty		Continuous
Port Rotation		90 Degrees Increments
Drain Plug		Yes
Agency Compliance		Motor Only CSA
Manufacturers Warranty Length		1 Year
Features		Stainless Steel Fasteners and Inserts
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Water Transfer, Dewatering and Lawn Sprinkling for Residential and Commercial Uses
Includes		Manual
