Pumps
>
Centrifugal Pumps
>
Self-Priming Pumps

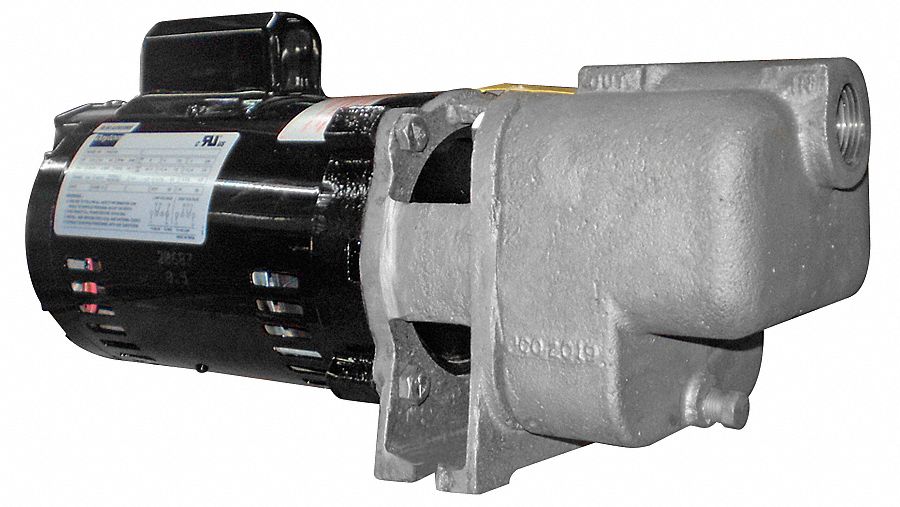

DAYTON Centrifugal Pump, 1/3 HP, ODP, 1 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Self-Priming, Housing Material Stainless Steel, 1/3 HP, Motor Enclosure ODP, 1 Phase, Voltage 115/230, Amps 7.5/3.8, Inlet 1 In., Outlet 1 In., Max. Dia. Solids 1/8 In., Max. Head 41 Ft., Motor Type Capacitor Start Induction Run, Seal Material Carbon Ceramic-Viton, Max. Liquid Temp. 200 F, Warranty Length 1 Year

Grainger Item #	5GUP0
Price (ea.)	$843.00
Brand	DAYTON
Mfr. Model #	5GUP0
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	39.98
Availability	Typically in Stock
Catalog Page No.	4078
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Self-Priming
HP		1/3
Phase		1
Voltage		115/230
Amps		7.5/3.8
Housing Material		Stainless Steel
Impeller Material		Stainless Steel
Wetted Materials		Stainless Steel, Viton, Carbon, Ceramic
Hz		60
Inlet (In.)		1
Outlet (In.)		1
Motor Enclosure		ODP
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		Capacitor Start Induction Run
Service Factor		1.75
Volute Material		Stainless Steel
Shaft Material		Stainless Steel
Screw Material		Zinc Plated
Seal Type		Mechanical
Seal Material		Carbon Ceramic-Viton
Seal Application		Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials Up to 200 F
GPM of Water @ 10 Ft. of Head		43
GPM of Water @ 15 Ft. of Head		40
GPM of Water @ 20 Ft. of Head		36
GPM of Water @ 25 Ft. of Head		32
GPM of Water @ 30 Ft. of Head		27
GPM of Water @ 40 Ft. of Head		6
Max. Head (Ft.)		41
Suction Lift (Ft.)		7
Max. GPM @ Head (Ft.)		43 @ 10
Best Efficiency GPM @ Head (Ft.)		25 @ 32
Min. GPM @ Head (Ft.)		6 @ 40
Best Efficiency Range GPM @ Head (Ft.)		18-25 GPM @ 35-32 Ft.
Max. Liquid Temp. (F)		200
Max. Specific Gravity		1
Max. Case Pressure (PSI)		165
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		100
Impeller Type		Semi Open
Bearing Type		Ball
Duty		Continuous
Max. Dia. Solids (In.)		1/8
Port Rotation		No
Drain Plug		1/4"-18 NPT
Agency Compliance		UR Approved
Manufacturers Warranty Length		1 Year
Application		For Industrial and Commercial Applications, Such as Process Applications, Dewatering, Irrigation, Chemical Transfer, Decorative Water Features
For Use With		Nonflammable and Non-abrasive Liquids Compatible with Pump Component Materials
Height (In.)		8.93
Length (In.)		17.12
Width (In.)		5.39
Includes		Manual
