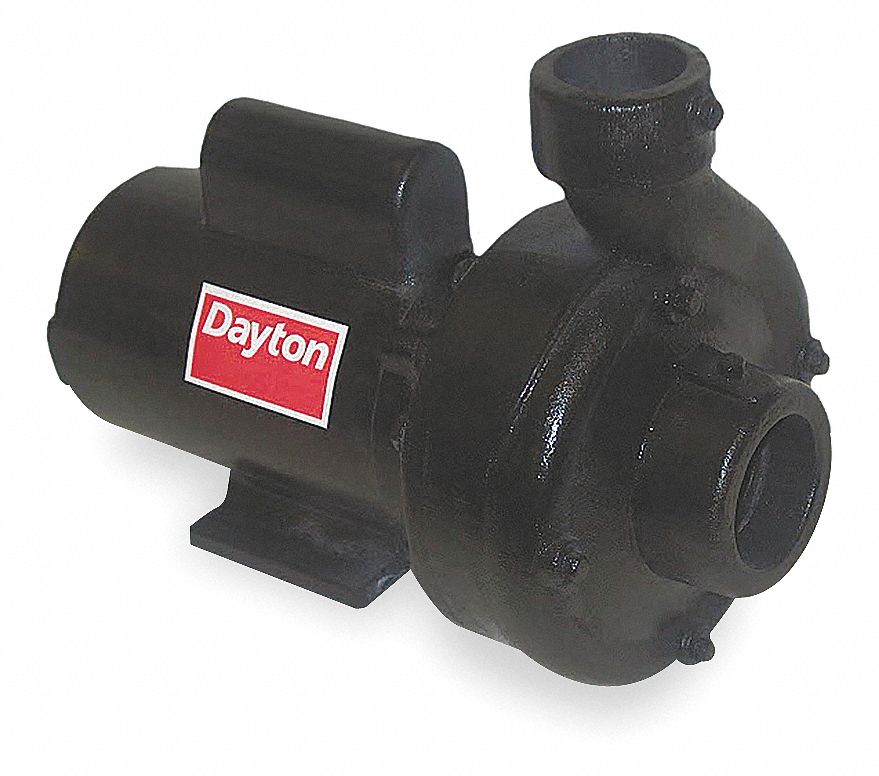

Centrifugal Pump, Straight, HP 2, Phase 1, Volts 115/230, Amps 16.6/8.3, Motor Enclosure TEFC, Impeller Type Enclosed, Impeller Material Bronze, Outlet 2 In, Inlet 2 1/2 In, Max Pressure 26.5 PSI, Cast Iron, Seals Standard, Carbon Ceramic Faces, Buna Elastomer and SS Parts, Bearings Ball, For Use With Nonflammable and Nonabrasive Liquids, Port Rotation 4 Position Increments, Max Temp 40 to 180 F, GPM of Water @5 Ft of Head Do Not Use, @40 Ft of Head 130, Max Head 61.2 Ft
  • Grainger Item #4ZA35
    Price (ea.)$1,273.00
    BrandDAYTON
    Mfr. Model #4ZA35
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)90.0
    Availability Typically in Stock
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCentrifugal Pump
TypeStraight
HP2
Phase1
Voltage115/230
Amps16.6/8.3
Hz60
Inlet (In.)2-1/2 NPT
Outlet (In.)2 NPT
Motor EnclosureTEFC
NEMA/IEC Frame56J
Motor RPM3500
Motor TypeCapacitor Start
Service Factor1.0
Wetted MaterialsCI,BR, Carbon, Ceramic, Buna N, SS
Impeller MaterialBronze
Housing MaterialCast Iron
Volute MaterialCast Iron
Shaft MaterialStainless Steel
Screw MaterialZinc Plated
Seal TypeMechanical
Seal MaterialStandard, Carbon Ceramic Faces, Buna Elastomer and SS Parts
Seal ApplicationNonflammable And Nonabrasive Liquids Compatible With Seal Component Materials Up To 180F
BearingsBall
Max. Liquid Temp. (F)180
GPM of Water @ 20 Ft. of Head168
GPM of Water @ 30 Ft. of Head153
GPM of Water @ 40 Ft. of Head130
GPM of Water @ 50 Ft. of Head96.2
Max. Head (Ft.)63
Best Efficiency GPM @ Head (Ft.)101 @ 48
Best Efficiency Range GPM @ Head (Ft.)65-33 GPM @ 90-140 Ft.
Max. Specific Gravity1.0
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)100
Impeller TypeEnclosed
Bearing TypeBall
DutyContinuous
Max. Pressure (PSI)26.5
Max. Dia. Solids (In.)0.40625
Port Rotation4 Position Increments
Drain PlugEasily Accessible
Length (In.)16.27
Height (In.)12.00
Width (In.)9.30
For Use WithNonflammable and Non-abrasive Liquids Compatible with Pump Component Materials
ApplicationFor High Volume Service, For Industrial And Commercial Applications, Such As Process Applications, Dewatering, Irrigation,Chemical Transfer, Decorative Water Features.
Manufacturers Warranty Length1 Year

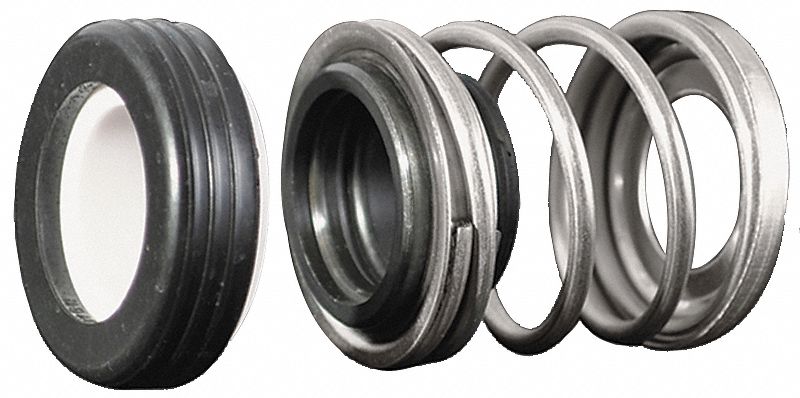

Optional Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

5DXY9

Price (ea.):

$23.61
