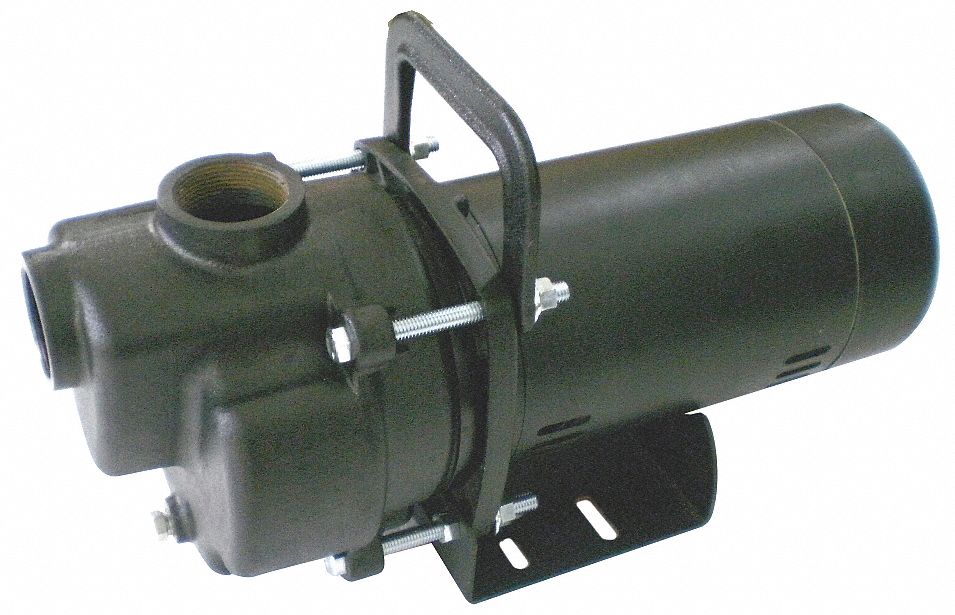

DAYTON Transfer Pump, 1 HP, Cast Iron

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Transfer, Self Priming, HP 1, Phase 1, Voltage 115/230, Amps 11.1/5.6, Housing Material Cast Iron, Impeller Material Cast Iron, Wetted Materials Cast Iron, 304 SS, Viton, Carbon, Ceramic, Hz 60, Inlet 1 1/2 In., Outlet 1 1/2 In., NEMA/IEC Frame NEMA Frame 56J, Motor Type CSCR, Seal Material 304 SS, Viton, Carbon, Ceramic, Impeller Type Semiclosed, Bearing Type Ball, Port Rotation 4 Position Increments, Height 10 In., Length 17 In.

Grainger Item #	4YKP8
Price (ea.)	$905.00
Brand	DAYTON
Mfr. Model #	4YKP8
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	25.0
Availability	Typically in Stock
Catalog Page No.	4079
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Transfer, Self Priming
HP		1
Phase		1
Voltage		115/230
Amps		11.1/5.6
Housing Material		Cast Iron
Impeller Material		Cast-Iron
Wetted Materials		Cast Iron, 304 SS, Viton,Carbon, Ceramic
Hz		60
Inlet (In.)		1-1/2
Outlet (In.)		1-1/2
Motor Enclosure		ODP
NEMA/IEC Frame		NEMA Frame 56J
Motor RPM		3450
Motor Type		CSCR
Shaft Material		Stainless Steel
Screw Material		Carbon Steel
Seal Type		Mechanical Seal
Seal Material		304 SS, Viton, Carbon, Ceramic
Seal Application		Nonflammable Liquids Compatible with Pump Components
Max. Pressure (PSI)		21
GPM of Water @ 2 Ft. of Head		72
GPM of Water @ 5 Ft. of Head		69
GPM of Water @ 10 Ft. of Head		65
GPM of Water @ 15 Ft. of Head		61
GPM of Water @ 20 Ft. of Head		55
GPM of Water @ 25 Ft. of Head		51
GPM of Water @ 30 Ft. of Head		43
GPM of Water @ 40 Ft. of Head		22
Max. Head (Ft.)		48
Suction Lift (Ft.)		25
Max. GPM @ Head (Ft.)		71 @ 2
Best Efficiency GPM @ Head (Ft.)		43 @ 30
Min. GPM @ Head (Ft.)		2 @ 47
Best Efficiency Range GPM @ Head (Ft.)		21-50 GPM @ 40-25 Ft.
Max. Liquid Temp. (F)		180
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		85
Max. Fluid Viscosity		31 SSU
Inlet Pressure (PSI)		64
Impeller Type		Semiclosed
Bearing Type		Ball
Duty		Continuous
Port Rotation		4 Position Increments
Drain Plug		Easily Accessible
Agency Compliance		CSA (C&US)
Manufacturers Warranty Length		1 Year
Application		For general purpose chemical transfer from drums or storage tanks.
For Use With		Nonflammable and Nonabrasive Liquids Compatible with Pump Wetted Materials
Height (In.)		10
Length (In.)		17
Width (In.)		7-5/16
