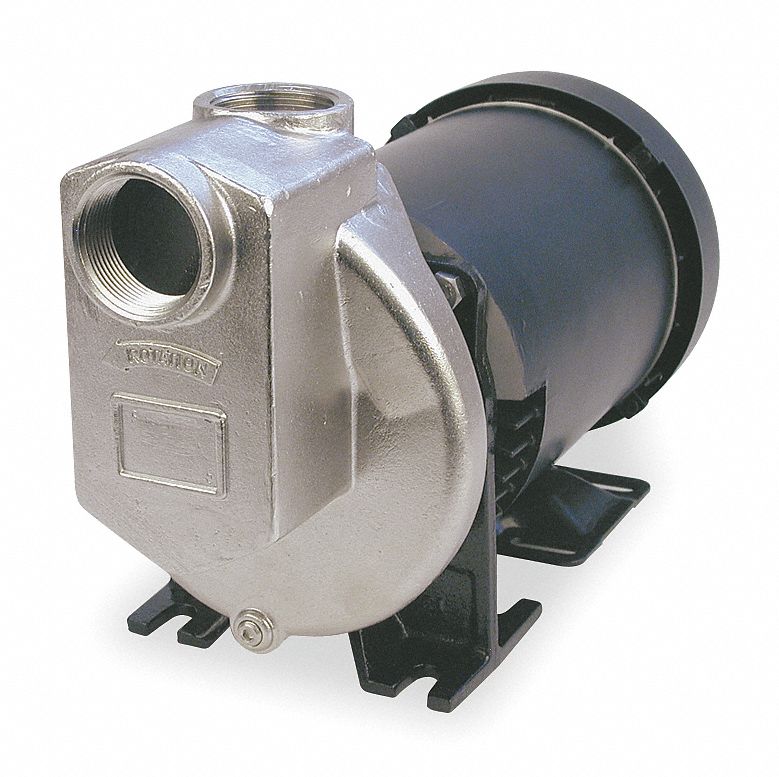

DAYTON Pump, Centrifugal, 3/4hp

Centrifugal Pump, Self Priming, HP 3/4, Phase 3, Volts 230/460, Amps 2.9/1.5, Motor Enclosure TEFC, Impeller Type Open, Impeller Material Stainless Steel, Outlet 1 1/2 In, Inlet 1 1/2 In, Max Pressure 22.51 PSI, SS, Seals Viton Elastomer, Carbon Ceramic Faces with Stainless Parts, Shaft Material 300 Series SS, For Use With Nonflammable/Nonabrasive Liquids, Port Rotation Single, Max Temp 250 F, @40 Ft of Head 24, Max Head 52 Ft
  • Grainger Item #4TE25
    Price (ea.) N/A
    BrandDAYTON
    Mfr. Model #4TE25
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)44.1
    Availability Item no longer available
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)    		China
  •   This Item no longer available and cannot be ordered online.

    Some item(s) may be available through your local branch. An alternate item(s) may be available online. See the Alternate Products tab below.
    OR

    Compare Alternate Items
  • Price shown may not reflect your price. Sign in or register.
ItemCentrifugal Pump
TypeSelf-Priming, High Volume at Low Pressure
HP3/4
Phase3
Voltage230/460
Amps3.3/1.6
Housing Material316 Stainless Steel
Impeller Material316 Stainless Steel
Wetted Materials316 Stainless Steel, Viton, Carbon and Ceramic
Hz60
Inlet (In.)1-1/2
Outlet (In.)1.5
Motor EnclosureTEFC
NEMA/IEC Frame56J
Motor RPM3450
Motor TypeAC
Volute Material316 Stainless Steel
Shaft Material303 Stainless Steel
Seal TypeMechanical Carbon on Ceramic
Seal MaterialViton with Carbon and Ceramic Faces & 316 Stainless Steel Spring
Seal ApplicationLong Life When Not Run Dry or Pumping Abrasives
GPM of Water @ 10 Ft. of Head61
GPM of Water @ 20 Ft. of Head52
GPM of Water @ 30 Ft. of Head42
GPM of Water @ 40 Ft. of Head24
GPM of Water @ 50 Ft. of Head4
Max. Head (Ft.)52
Max. GPM @ Head (Ft.)61 @ 10
Best Efficiency GPM @ Head (Ft.)24 @ 40
Min. GPM @ Head (Ft.)4 @ 50
Best Efficiency Range GPM @ Head (Ft.)14-52 GPM @ 45-20 Ft.
Max. Liquid Temp. (F)250
Max. Specific Gravity1.3
Max. Case Pressure (PSI)75
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)75 Max
Impeller TypeSemi Open
Bearing TypeBall in Motor
DutyContinuous
Port RotationSingle
Drain PlugEasily Accessible at Bottom
Manufacturers Warranty Length1 Year
ApplicationSelf-Priming to 6 ft. of Suction Lift
For Use WithNonflammable and Nonabrasive Liquids
Height (In.)9-1/2
Length (In.)17-5/16
Width (In.)6-1/8
