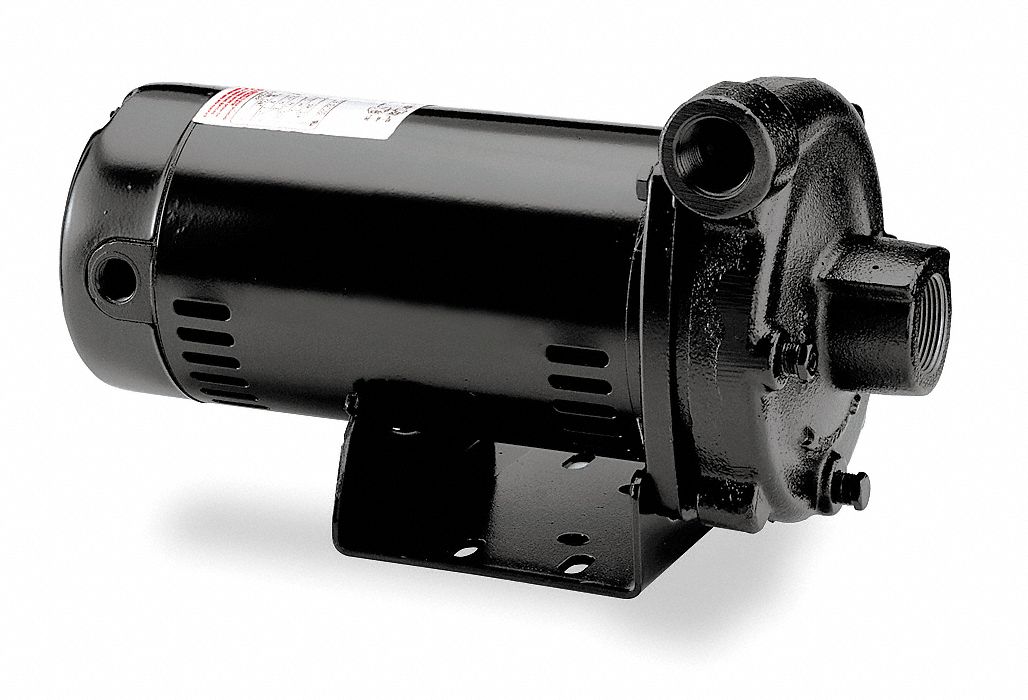

DAYTON Pump, Centrifugal, 1/2hp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Power Rating 1/2 HP, Voltage @ 60 Hz 208-230/460 Volts, Phase Three, Full Load Amps 2.3/1.15, Motor Enclosure ODP, Outlet 1 Inch, Inlet 1 1/4 Inches, Drain Port Size 1/4 Inch, Cast Iron, Plastic Impeller

Grainger Item #	4RJ71
Price (ea.)	$507.00
Brand	DAYTON
Mfr. Model #	4RJ71
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	29.65
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		High Head, Close Coupled
Housing Material		Close-Grained Cast Iron, Seal Plate
HP		1/2
Phase		3
Voltage		208-230/460
Amps		2.3/1.15
Hz		60
Inlet (In.)		1-1/4
Outlet (In.)		1
Motor Enclosure		ODP
Impeller Material		Noryl
Seal Type		21
Seal Material		Standard, Carbon Ceramic Faces, Buna Elastomer and SS Parts
Seal Application		Water
Max. Liquid Temp. (F)		140
GPM of Water @ 20 Ft. of Head		37
GPM of Water @ 40 Ft. of Head		31
GPM of Water @ 60 Ft. of Head		19
GPM of Water @ 80 Ft. of Head		3
Max. Head (Ft.)		83
Min. GPM @ Head (Ft.)		3 @ 80
Max. GPM @ Head (Ft.)		37 @ 20
Best Efficiency GPM @ Head (Ft.)		17 @ 58
Best Efficiency Range GPM @ Head (Ft.)		8-30 GPM @ 75-42 Ft.
Max. Specific Gravity		1.0
Wetted Materials		Noryl, Cast Iron, Stainless Steel, Carbon, Ceramic, Buna.
Max. Case Pressure (PSI)		100
Max. Fluid Viscosity		1.0CP
Max. Pressure (PSI)		60
Bearing Type		Sealed Ball
Port Rotation		90 Increments
Drain Plug		Easily Accessible
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Length (In.)		13-5/8
Width (In.)		7-13/16
Height (In.)		8-5/8
