Pumps
>
Centrifugal Pumps
>
Chemical-Resistant Pumps

3.4 Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

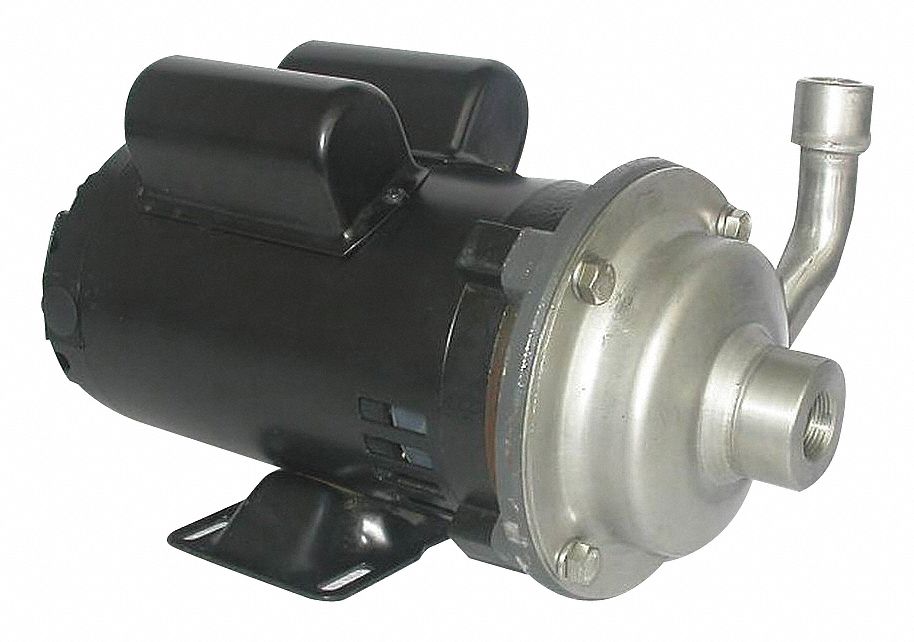

Centrifugal Pump, Chemical Resistant, 1/3 HP, 1 Phase, Housing Material 304 SS, Impeller Material 304 SS, Seal Material Viton, Voltage 115/230, Amps 6.8/3.4, Inlet (In.) 3/4 NPT, Outlet (In.) 1/2 NPT, Motor Enclosure ODP, Max. Head 48 Ft., Length 12 11/16 In., Width 6 1/2 In., Height 7 7/8 In., Warranty Length 1 Year

Grainger Item #	4JMV2
Price (ea.)	$519.50
Brand	DAYTON
Mfr. Model #	4JMV2
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.8
Availability	Typically in Stock
Catalog Page No.	4089
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Chemical Resistant
HP		1/3
Phase		1
Inlet Type		3/4" NPT
Voltage		115/230
Amps		6.8/3.4
Housing Material		304 Stainless Steel
Impeller Material		304 SS
Seal Material		Viton
Seal Type		Mechanical
Outlet (In.)		1/2 NPT
Motor Enclosure		ODP
GPM of Water @ 5 Ft. of Head		21
GPM of Water @ 10 Ft. of Head		20
GPM of Water @ 15 Ft. of Head		18
GPM of Water @ 20 Ft. of Head		15
GPM of Water @ 25 Ft. of Head		11
GPM of Water @ 30 Ft. of Head		4
GPM of Water @ 40 Ft. of Head		1
Max. Head (Ft.)		48
Max. GPM @ Head (Ft.)		21 @ 5
Best Efficiency GPM @ Head (Ft.)		10 @ 26
Min. GPM @ Head (Ft.)		1 @ 40
Best Efficiency Range GPM @ Head (Ft.)		19 @ 11 to 6 @ 28
Length (In.)		12-11/16
Width (In.)		6-1/2
Height (In.)		7-7/8
Hz		60
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		PSC
Service Factor		1.6
Wetted Materials		Carbon, Ceramic, 304 Stainless Steel, Viton
Shaft Material		Stainless Steel
Screw Material		Stainless Steel
Max. Liquid Temp. (F)		200
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		150
Max. Fluid Viscosity		31 SSU
Inlet Pressure (PSI)		128
Impeller Type		Closed
Bearing Type		Ball
Duty		Continuous
Max. Dia. Solids (In.)		1/8
Port Rotation		90 Increments
Drain Plug		No
Agency Compliance		CUS
Manufacturers Warranty Length		1 Year
Application		Liquids Transfer, Circulation, Chemical Processing, Cooling, Pressure Boosting and Circulating
For Use With		Clear, Non Abrasive, Non-Flammable Liquids Compatible with Pump Components
Includes		Manual
