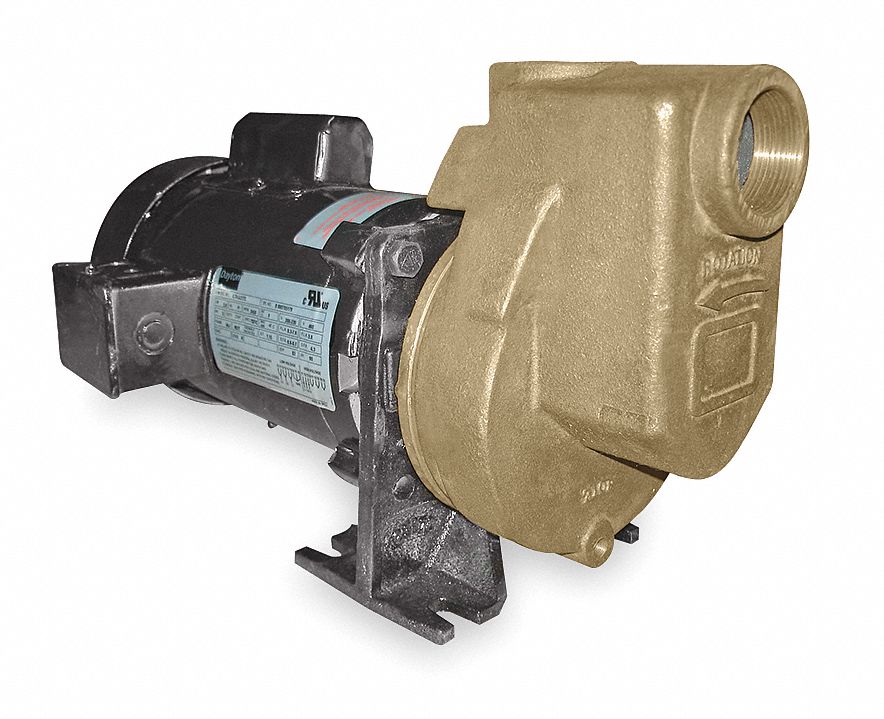

DAYTON Centrifugal Pump, 1 HP, 1 Ph, 115/230V

Centrifugal Pump, Self-Priming, HP 1, Phase 1, Voltage 115/230, Amps 12.2/6.1, Housing Material Bronze, Hz 60, Inlet 1 1/2 In., Outlet 1 1/2 In., Includes Manual
  • Grainger Item #2ZXR2
    Price (ea.)$968.00
    BrandDAYTON
    Mfr. Model #2ZXR2
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)80.0
    Availability Item ships within 4 business days from supplier
    Catalog Page No.4078
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
ItemCentrifugal Pump
TypeSelf-Priming
HP1
Phase1
Voltage115/230
Amps12.2/6.1
Housing MaterialBronze
Impeller MaterialStainless Steel
Wetted MaterialsBronze, Viton, Carbon, Ceramic, SS
Hz60
Inlet (In.)1-1/2
Outlet (In.)1-1/2
Motor EnclosureTEFC
NEMA/IEC Frame56J
Motor RPM3450
Motor TypeTEFC
Service Factor1.4
Volute MaterialBronze
Shaft MaterialStainless Steel
Screw MaterialStainless Steel
Seal TypeMechanical
Seal MaterialViton, Carbon, Ceramic, SS
Seal ApplicationLong Life When Not Run Dry or Pumping Abrasives
GPM of Water @ 2 Ft. of Head84
GPM of Water @ 5 Ft. of Head80
GPM of Water @ 10 Ft. of Head76
GPM of Water @ 15 Ft. of Head70
GPM of Water @ 20 Ft. of Head65
GPM of Water @ 25 Ft. of Head59
GPM of Water @ 30 Ft. of Head54
GPM of Water @ 40 Ft. of Head36
GPM of Water @ 50 Ft. of Head5
Max. Head (Ft.)52
Suction Lift (Ft.)6
Max. GPM @ Head (Ft.)84 @ 2
Best Efficiency GPM @ Head (Ft.)27 @ 42
Min. GPM @ Head (Ft.)5 @ 50
Best Efficiency Range GPM @ Head (Ft.)21-62 @ 45-22 Ft.
Max. Liquid Temp. (F)200
Max. Specific Gravity1.3
Max. Case Pressure (PSI)75
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)75
Impeller TypeOpen
Bearing TypeBall
DutyContinuous
Max. Dia. Solids (In.)3/8
Port RotationSingle
Drain PlugEasily Accessible at Bottom
Manufacturers Warranty Length1 Year
ApplicationSelf-Priming to 6 ft. of Suction Lift
For Use WithNonflammable and Nonabrasive Liquids
Height (In.)9-1/2
Length (In.)17-5/16
Width (In.)6-1/8
IncludesManual
