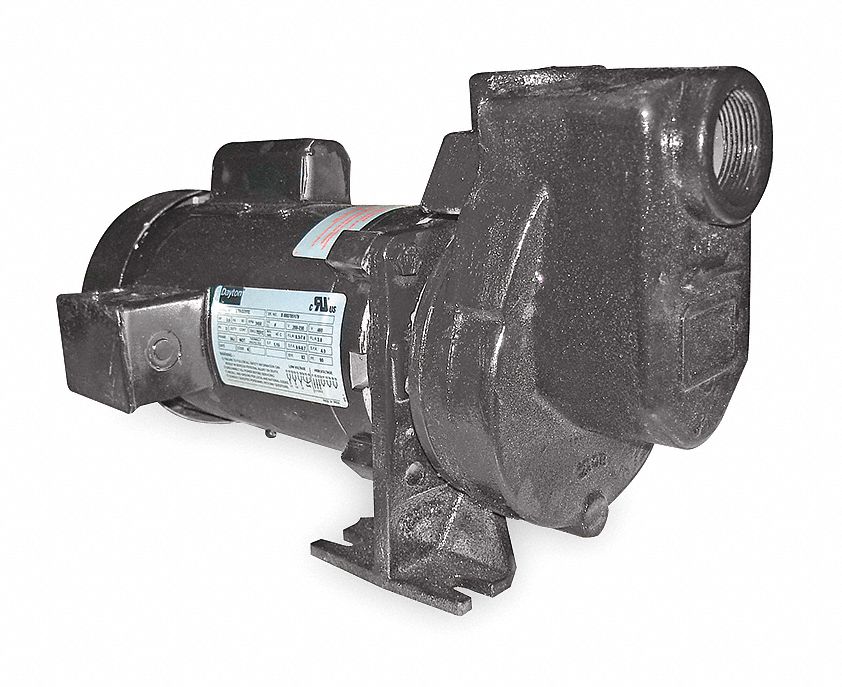

DAYTON Centrifugal Pump, 1 HP, 1 Ph, 115/208-230

Centrifugal Pump, Self-Priming, HP 1, Phase 1, Voltage 115/208-230, Amps 12.2/6.3-6.1, Housing Material Cast Iron, Hz 60, Inlet 1 1/2 In., Outlet 1 1/2 In., Includes Manual
  • Grainger Item #2ZXP3
    Price (ea.)$821.50
    BrandDAYTON
    Mfr. Model #2ZXP3
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)75.0
    Availability Limited quantity available
    Catalog Page No.4078
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCentrifugal Pump
TypeSelf-Priming
HP1
Phase1
Voltage115/208-230
Amps12.2/6.3-6.1
Housing MaterialCast Iron
Impeller MaterialCast-Iron
Wetted MaterialsCast Iron, Buna-N, Carbon, Ceramic, SS
Hz60
Inlet (In.)1-1/2
Outlet (In.)1-1/2
Motor EnclosureTEFC
NEMA/IEC Frame56J
Motor RPM3450
Motor TypeTEFC
Service Factor1.4
Volute MaterialCast Iron
Shaft MaterialStainless Steel
Screw MaterialZinc Plated
Seal TypeMechanical
Seal MaterialBuna-N, Carbon, Ceramic, SS
Seal ApplicationLong Life When Not Run Dry or Pumping Abrasives
GPM of Water @ 2 Ft. of Head84
GPM of Water @ 5 Ft. of Head80
GPM of Water @ 10 Ft. of Head76
GPM of Water @ 15 Ft. of Head70
GPM of Water @ 20 Ft. of Head65
GPM of Water @ 25 Ft. of Head59
GPM of Water @ 30 Ft. of Head54
GPM of Water @ 40 Ft. of Head36
GPM of Water @ 50 Ft. of Head5
Max. Head (Ft.)52
Suction Lift (Ft.)6
Max. GPM @ Head (Ft.)84 @ 2
Best Efficiency GPM @ Head (Ft.)27 @ 42
Min. GPM @ Head (Ft.)5 @ 50
Best Efficiency Range GPM @ Head (Ft.)21-62 @ 45-22 Ft.
Max. Liquid Temp. (F)200
Max. Specific Gravity1.3
Max. Case Pressure (PSI)75
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)75
Impeller TypeOpen
Bearing TypeBall
DutyContinuous
Max. Dia. Solids (In.)3/8
Port RotationSingle
Drain PlugEasily Accessible at Bottom
Manufacturers Warranty Length1 Year
ApplicationSelf-Priming to 6 ft. of Suction Lift
For Use WithNonflammable and Nonabrasive Liquids
Height (In.)9-1/2
Length (In.)17-5/16
Width (In.)6-1/8
IncludesManual

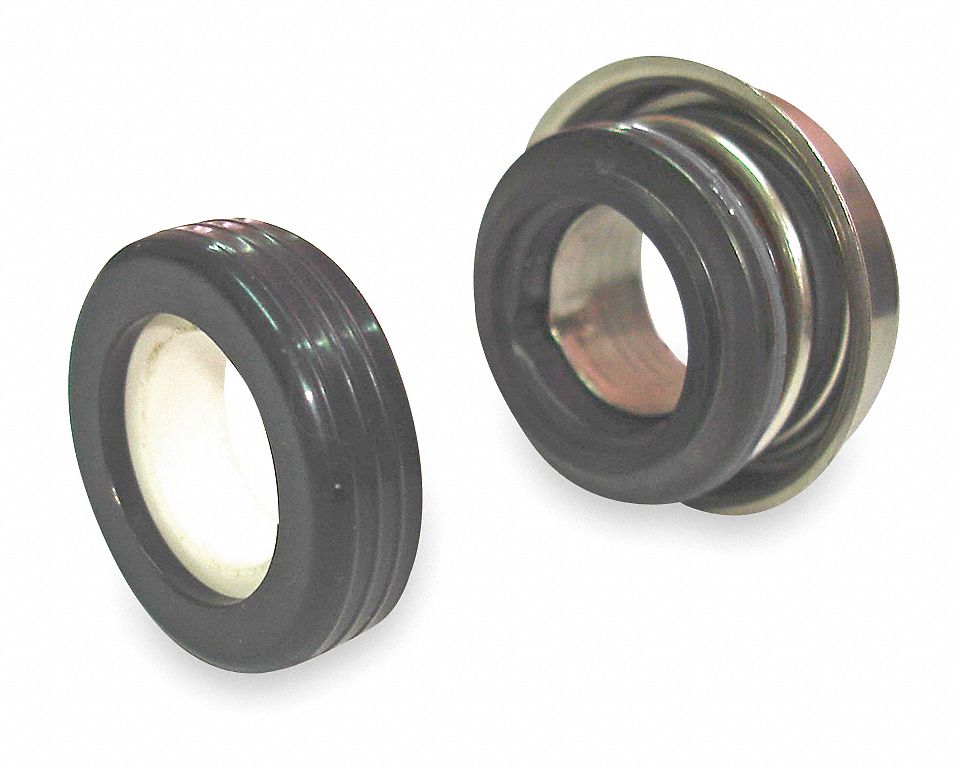

Optional Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

3ACF4

Price (ea.):

$22.36
