Pumps
>
Centrifugal Pumps
>
Straight Pumps (Above 80' of Max. Head)

460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, High Head, Housing Material Cast Iron, 3/4 HP, 3 Phase, Voltage 208-230/460, Amps 2.7-2.5/1.2, 60 Hz, Inlet 1 1/4 In., Outlet 1 In., Motor Enclosure ODP, Service Factor 1.5, Impeller Type Closed, Impeller Material Brass, Seal Material Viton, Max. Head 98 Ft., Length 13 3/4 In., Width 10 In., Height 8 1/2 In.

Grainger Item #	2ZXN1
Price (ea.)	$531.00
Brand	DAYTON
Mfr. Model #	2ZXN1
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	41.3
Availability	Typically in Stock
Catalog Page No.	4075
Country of Origin (Country of Origin is subject to change.)	India
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

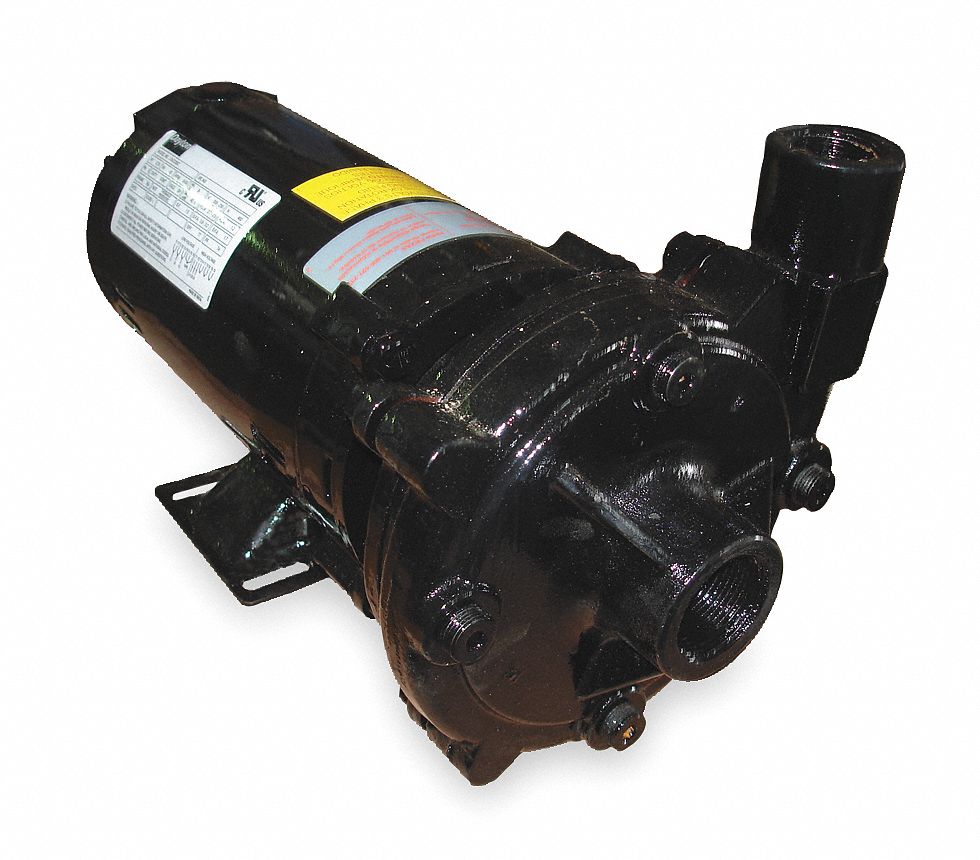

Centrifugal Pump, 3/4 HP, 3Ph, 208-230/460V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		High Head
Housing Material		Cast Iron
HP		3/4
Phase		3
Voltage		208-230/460
Amps		2.7-2.5/1.2
Hz		60
Inlet (In.)		1-1/4
Outlet (In.)		1
Motor Enclosure		ODP
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		ODP
Service Factor		1.5
Impeller Type		Closed
Impeller Material		Brass
Volute Material		Cast Iron
Shaft Material		Stainless Steel
Screw Material		Zinc Plated
Seal Type		Mechanical Carbon on Ceramic
Seal Material		Viton
Seal Application		Long life When Not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)		200
GPM of Water @ 10 Ft. of Head		53
GPM of Water @ 15 Ft. of Head		51
GPM of Water @ 20 Ft. of Head		49
GPM of Water @ 25 Ft. of Head		47
GPM of Water @ 30 Ft. of Head		46
GPM of Water @ 40 Ft. of Head		42
GPM of Water @ 50 Ft. of Head		37
GPM of Water @ 60 Ft. of Head		32
GPM of Water @ 70 Ft. of Head		27
GPM of Water @ 80 Ft. of Head		19
GPM of Water @ 90 Ft. of Head		12
Max. Head (Ft.)		98
Min. GPM @ Head (Ft.)		12 @ 90
Max. GPM @ Head (Ft.)		53 @ 10
Best Efficiency GPM @ Head (Ft.)		33 @ 59
Best Efficiency Range GPM @ Head (Ft.)		20-44 @ 80-35 Ft.
Max. Specific Gravity		1.0
Wetted Materials		Cast Iron, Brass, Viton, Carbon, Ceramic, SS
Max. Case Pressure (PSI)		200
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		200
Bearing Type		Ball
Duty		Continuous
Port Rotation		4 Position Increments
Drain Plug		Easily Accessible
Manufacturers Warranty Length		1 Year
Application		Rugged Close-Coupled Pumps Continuously Produce High Head Condition
For Use With		Nonflammable and Nonabrasive Liquids
Length (In.)		13-3/4
Width (In.)		10
Height (In.)		8-1/2
Includes		Manual
