DAYTON Centrifugal Pump, 1 HP, 3 Ph, 208-230/460V

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Centrifugal Pump, High Head, Housing Material Stainless Steel, 1 HP, 3 Phase, Voltage 208-230/460, Amps 3.7-3.2/1.6, 60 Hz, Inlet 1 1/4 In., Outlet 1 In., Motor Enclosure ODP, Service Factor 1.4, Impeller Type Closed, Impeller Material Stainless Steel, Seal Material Viton, Max. Head 112 Ft., Length 15 3/4 In., Width 10 In., Height 8 1/2 In.

Grainger Item #	2ZXK9
Price (ea.)	$1,055.00
Brand	DAYTON
Mfr. Model #	2ZXK9
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	45.16
Availability	Typically in Stock
Catalog Page No.	4075
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

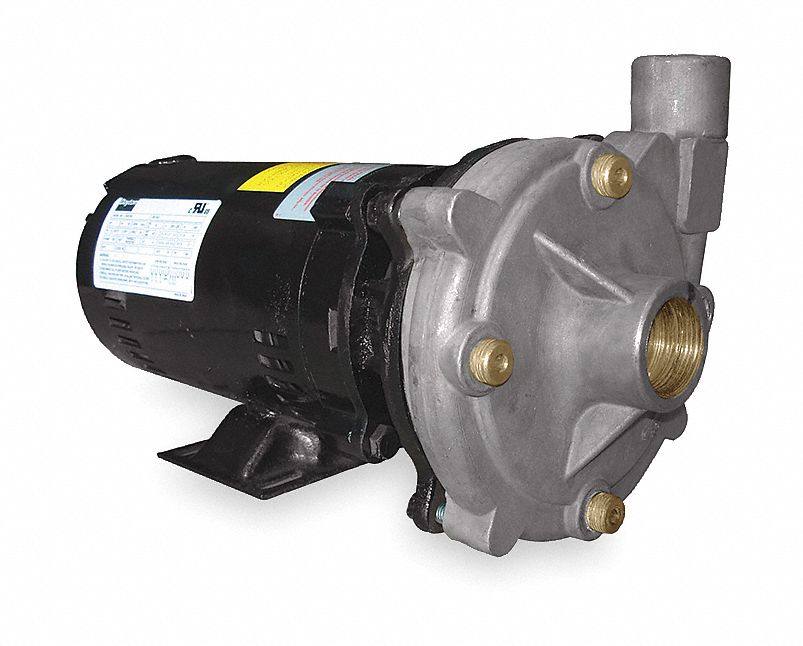

Centrifugal Pump, 1 HP, 3 Ph, 208-230/460V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		High Head
Housing Material		Stainless Steel
HP		1
Phase		3
Voltage		208-230/460
Amps		3.7-3.2/1.6
Hz		60
Inlet (In.)		1-1/4
Outlet (In.)		1
Motor Enclosure		ODP
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		ODP
Service Factor		1.4
Impeller Type		Closed
Impeller Material		Stainless Steel
Volute Material		Stainless Steel
Shaft Material		Stainless Steel
Screw Material		Stainless Steel
Seal Type		Mechanical Carbon on Ceramic
Seal Material		Viton
Seal Application		Long life When Not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)		200
GPM of Water @ 10 Ft. of Head		59
GPM of Water @ 15 Ft. of Head		57
GPM of Water @ 20 Ft. of Head		55
GPM of Water @ 25 Ft. of Head		53
GPM of Water @ 30 Ft. of Head		51
GPM of Water @ 40 Ft. of Head		47
GPM of Water @ 50 Ft. of Head		43
GPM of Water @ 60 Ft. of Head		38
GPM of Water @ 70 Ft. of Head		34
GPM of Water @ 80 Ft. of Head		28
GPM of Water @ 90 Ft. of Head		23
GPM of Water @ 100 Ft. of Head		13
GPM of Water @ 110 Ft. of Head		3
Max. Head (Ft.)		112
Min. GPM @ Head (Ft.)		3 @ 110
Max. GPM @ Head (Ft.)		59 @ 10
Best Efficiency GPM @ Head (Ft.)		34 @ 70
Best Efficiency Range GPM @ Head (Ft.)		23-48 @ 90-40 Ft.
Max. Specific Gravity		1.0
Wetted Materials		SS, Viton, Carbon, Ceramic
Max. Case Pressure (PSI)		200
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		200
Bearing Type		Ball
Duty		Continuous
Port Rotation		4 Position Increments
Drain Plug		Easily Accessible
Manufacturers Warranty Length		1 Year
Application		Rugged Close-Coupled Pumps Continuously Produce High Head Condition
For Use With		Nonflammable and Nonabrasive Liquids
Length (In.)		15-3/4
Width (In.)		10
Height (In.)		8-1/2
Includes		Manual
