DAYTON Centrifugal Pump, 3 HP, 3 Ph, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, High Head, Housing Material Cast Iron, 3 HP, 3 Phase, Voltage 208-230/460, Amps 8.3-7.6/3.8, 60 Hz, Inlet 1 1/2 In., Outlet 1 1/4 In., Motor Enclosure TEFC, Service Factor 1.15, Impeller Type Closed, Impeller Material Cast-Iron, Seal Material Viton, Max. Head 131 Ft., Length 16 7/8 In., Width 8 3/4 In., Height 9 In.

Grainger Item #	2ZXK3
Price (ea.)	$1,288.00
Brand	DAYTON
Mfr. Model #	2ZXK3
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	68.7
Availability	Typically in Stock
Catalog Page No.	4075
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

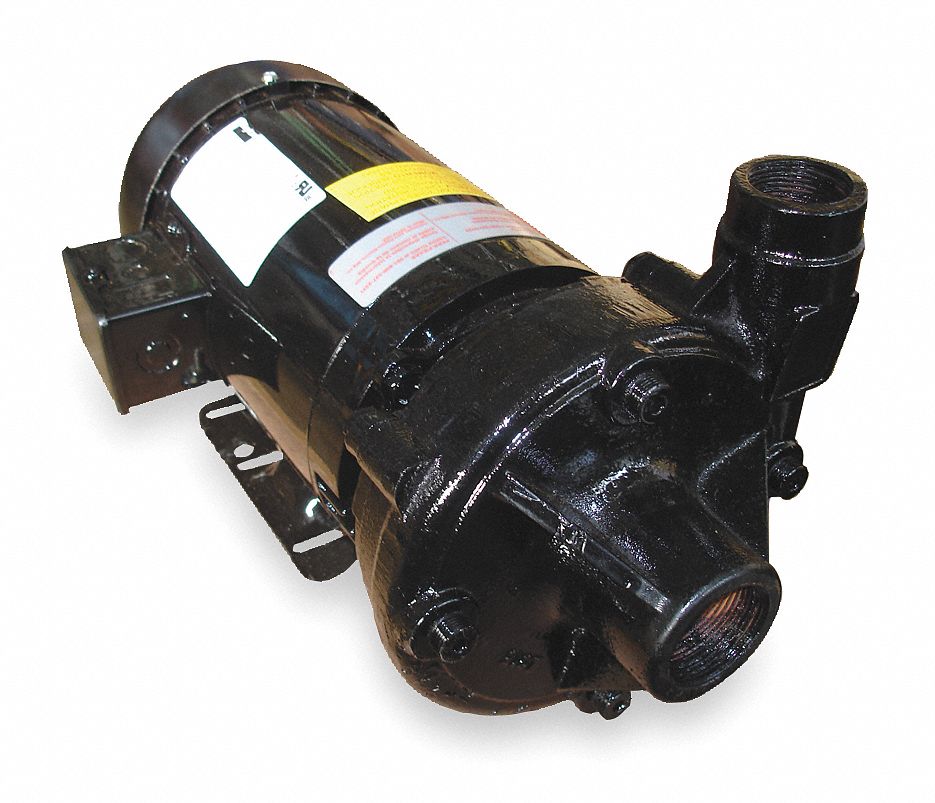

Centrifugal Pump, 3 HP, 3 Ph, 208-230/460V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		High Head
Housing Material		Cast Iron
HP		3
Phase		3
Voltage		208-230/460
Amps		8.3-7.6/3.8
Hz		60
Inlet (In.)		1-1/2
Outlet (In.)		1-1/4
Motor Enclosure		TEFC
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		TEFC
Service Factor		1.15
Impeller Type		Closed
Impeller Material		Cast-Iron
Volute Material		Cast Iron
Shaft Material		Stainless Steel
Screw Material		Zinc Plated
Seal Type		Mechanical Carbon on Ceramic
Seal Material		Viton
Seal Application		Long life When Not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)		200
GPM of Water @ 10 Ft. of Head		107
GPM of Water @ 15 Ft. of Head		105
GPM of Water @ 20 Ft. of Head		103
GPM of Water @ 25 Ft. of Head		100
GPM of Water @ 30 Ft. of Head		98
GPM of Water @ 40 Ft. of Head		92
GPM of Water @ 50 Ft. of Head		87
GPM of Water @ 60 Ft. of Head		79
GPM of Water @ 70 Ft. of Head		72
GPM of Water @ 80 Ft. of Head		63
GPM of Water @ 90 Ft. of Head		55
GPM of Water @ 100 Ft. of Head		43
GPM of Water @ 110 Ft. of Head		32
GPM of Water @ 114 Ft. of Head		25
GPM of Water @ 120 Ft. of Head		17
GPM of Water @ 130 Ft. of Head		2
Max. Head (Ft.)		131
Min. GPM @ Head (Ft.)		2 @ 130
Max. GPM @ Head (Ft.)		107 @ 10
Best Efficiency GPM @ Head (Ft.)		70 @ 72
Best Efficiency Range GPM @ Head (Ft.)		40-87 @ 100-50 Ft.
Max. Specific Gravity		1.0
Wetted Materials		Cast Iron, Viton, Carbon, Ceramic, SS
Max. Case Pressure (PSI)		200
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		200
Bearing Type		Ball
Duty		Continuous
Port Rotation		4 Position Increments
Drain Plug		Easily Accessible
Manufacturers Warranty Length		1 Year
Application		Rugged Close-Coupled Pumps Continuously Produce High Head Condition
For Use With		Nonflammable and Nonabrasive Liquids
Length (In.)		16-7/8
Width (In.)		8-3/4
Height (In.)		9
Includes		Manual
