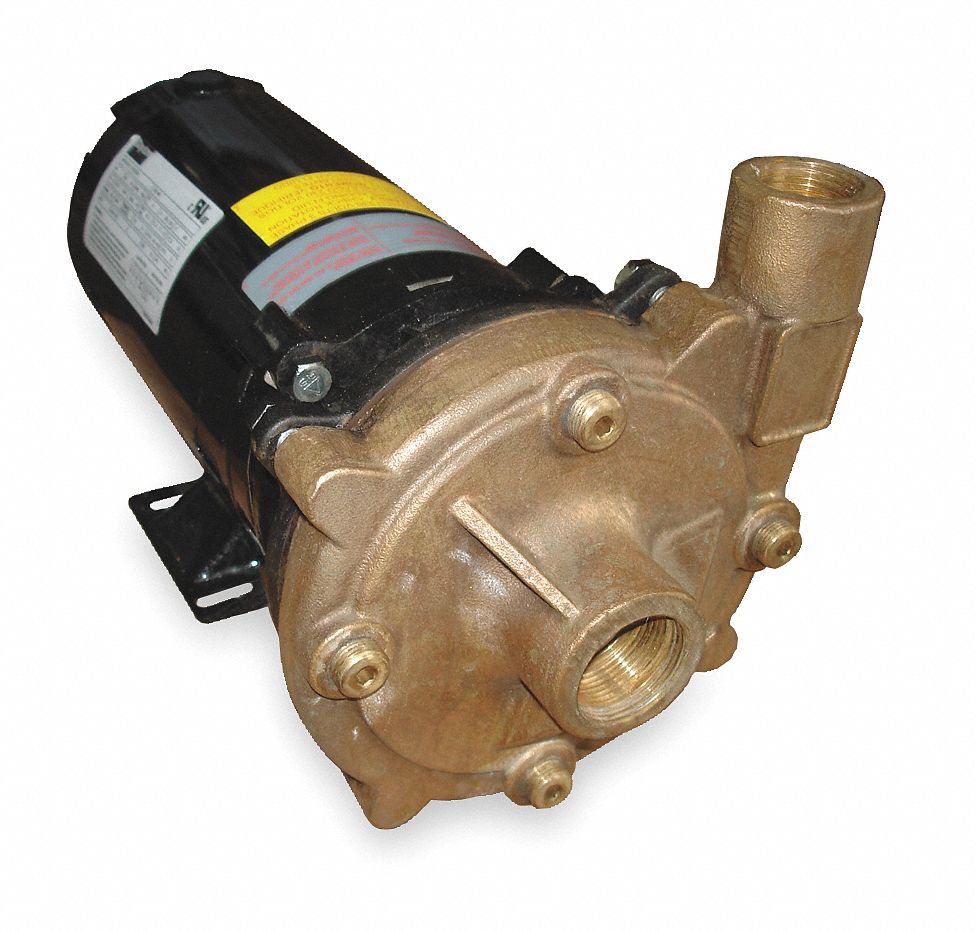

DAYTON Centrifugal Pump, 1 HP, 3 Ph, 208-230/460V

Centrifugal Pump, High Head, Housing Material Bronze, 1 HP, 3 Phase, Voltage 208-230/460, Amps 3.7-3.2/1.6, 60 Hz, Inlet 1 1/4 In., Outlet 1 In., Motor Enclosure ODP, Service Factor 1.4, Impeller Type Closed, Impeller Material 316 Stainless Steel, Seal Material Viton, Max. Head 112 Ft., Length 14 In., Width 10 In., Height 8 1/2 In.
  • Grainger Item #2ZXA2
    Price (ea.)$900.00
    BrandDAYTON
    Mfr. Model #2ZXA2
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)45.65
    Availability Typically in Stock
    Catalog Page No.4075
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCentrifugal Pump
TypeHigh Head
Housing MaterialBronze
HP1
Phase3
Voltage208-230/460
Amps3.7-3.2/1.6
Hz60
Inlet (In.)1-1/4
Outlet (In.)1
Motor EnclosureODP
NEMA/IEC Frame56J
Motor RPM3450
Motor TypeODP
Service Factor1.4
Impeller TypeClosed
Impeller Material316 Stainless Steel
Volute MaterialBronze
Shaft Material303 Stainless Steel
Screw MaterialStainless Steel
Seal TypeMechanical Carbon on Ceramic
Seal MaterialViton
Seal ApplicationLong life When Not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)200
GPM of Water @ 10 Ft. of Head59
GPM of Water @ 15 Ft. of Head57
GPM of Water @ 20 Ft. of Head55
GPM of Water @ 25 Ft. of Head53
GPM of Water @ 30 Ft. of Head51
GPM of Water @ 40 Ft. of Head47
GPM of Water @ 50 Ft. of Head43
GPM of Water @ 60 Ft. of Head38
GPM of Water @ 70 Ft. of Head34
GPM of Water @ 80 Ft. of Head28
GPM of Water @ 90 Ft. of Head23
GPM of Water @ 100 Ft. of Head13
GPM of Water @ 110 Ft. of Head3
Max. Head (Ft.)112
Min. GPM @ Head (Ft.)3 @ 110
Max. GPM @ Head (Ft.)59 @ 10
Best Efficiency GPM @ Head (Ft.)34 @ 70
Best Efficiency Range GPM @ Head (Ft.)23-48 @ 90-40 Ft.
Max. Specific Gravity1.0
Wetted MaterialsBronze, Brass, Viton, Carbon, Ceramic, 316 SS
Max. Case Pressure (PSI)200
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)200
Bearing TypeBall
DutyContinuous
Port Rotation4 Position Increments
Drain PlugEasily Accessible
Manufacturers Warranty Length1 Year
ApplicationRugged Close-Coupled Pumps Continuously Produce High Head Condition
For Use WithNonflammable and Nonabrasive Liquids
Length (In.)14
Width (In.)10
Height (In.)8-1/2
IncludesManual
