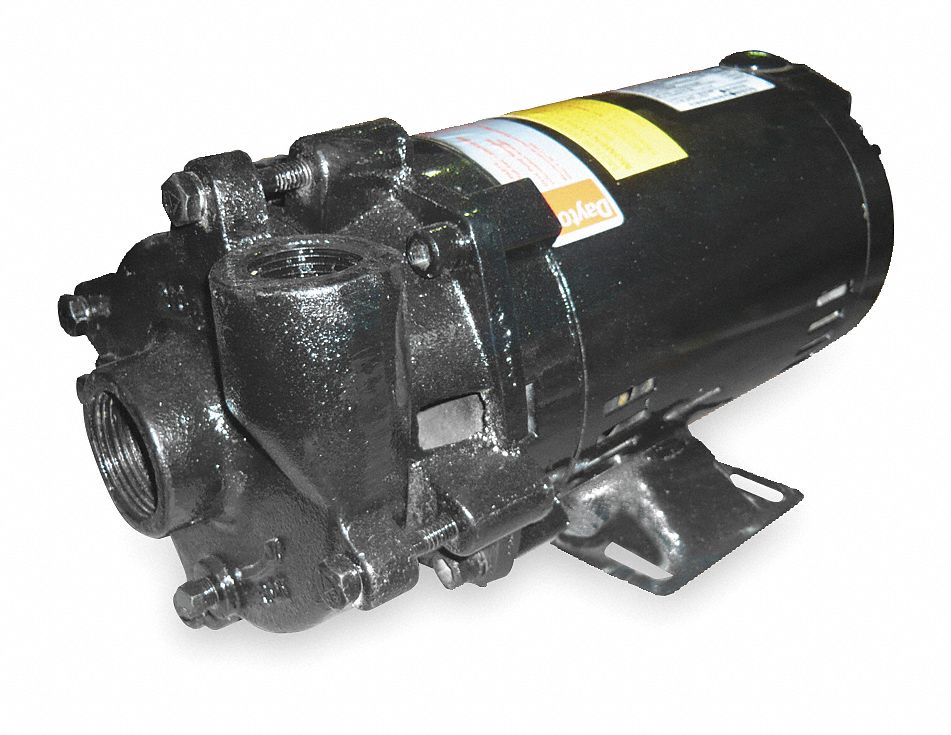

DAYTON Centrifugal Pump, 3/4 HP, 3 Ph, 208-230/460

Centrifugal Pump, 3/4 HP, 3 Phase, Voltage 208-230/460, 2.7-2.5/1.2 Amps, Inlet 1 1/4 In., Outlet 1 In., Motor Enclosure ODP, Housing Material Cast Iron, Impeller Type Semi Open Non-Clogging, Impeller Material Cast-Iron, Max. Head 55 Ft., Seal Type Mechanical, Length 12 3/4 In., Width 6-5/8 In In., Height 5 7/8 In., 3450 Motor RPM, 60 Hz, Service Factor 1.5, Inlet Pressure 200 PSI
  • Grainger Item #2ZWP4
    Price (ea.)$465.75
    BrandDAYTON
    Mfr. Model #2ZWP4
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)34.0
    Availability Typically in Stock
    Catalog Page No.4075
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemPump
TypeCentrifugal
HP3/4
Phase3
Voltage208-230/460
Amps2.7-2.5/1.2
Inlet (In.)1-1/4
Outlet (In.)1
Motor EnclosureODP
Housing MaterialCast Iron
Impeller TypeSemi Open Non-Clogging
Impeller MaterialCast-Iron
Max. GPM @ Head (Ft.)72 @ 10
Best Efficiency GPM @ Head (Ft.)47 @ 36
Min. GPM @ Head (Ft.)22 @ 50
Max. Head (Ft.)55
GPM of Water @ 10 Ft. of Head72
GPM of Water @ 15 Ft. of Head67
Seal TypeMechanical
Seal MaterialBuna-N, Carbon, Ceramic, SS
Length (In.)12-3/4
Width (In.)6-5/8"
Height (In.)5-7/8
NEMA/IEC Frame56J
Motor RPM3450
Hz60
Service Factor1.5
Wetted MaterialsCast Iron, Buna-N, Carbon, Ceramic, SS
Volute MaterialCast Iron
Shaft MaterialStainless Steel
Shaft Size (In.)5/8
Screw MaterialSteel, Zinc Plated
Seal ApplicationLong life When not Run Dry or Pumping Abrasives
Max. Liquid Temp. (F)200
GPM of Water @ 20 Ft. of Head63
GPM of Water @ 25 Ft. of Head58
GPM of Water @ 30 Ft. of Head53
GPM of Water @ 40 Ft. of Head41
GPM of Water @ 50 Ft. of Head22
Best Efficiency Range GPM @ Head (Ft.)35-63 @ 45-20 Ft.
Max. Specific Gravity1.0
Max. Case Pressure (PSI)200
Max. Fluid Viscosity100 SSU
Inlet Pressure (PSI)200
Bearing TypeBall
Max. Pressure (PSI)22.9
DutyContinuous
Port Rotation4 Position
Drain PlugSide and bottom
Manufacturers Warranty Length1 Year
ApplicationHigh Flow at Low Head Pressure
For Use WithNonflammable and Nonabrasive Liquids
IncludesManual
