Centrifugal Pump, Chemical Resistant, 1/2 HP, 1 Phase, Housing Material Noryl, Impeller Material Noryl, Volute Material Noryl, Seal Material Viton, Noryl(TM), Carbon, Ceramic, Voltage 115/208-230, Amps 8.4/4.8, Inlet (In.) 1 1/2 NPT, Outlet (In.) 1 1/2 NPT, Motor Enclosure TEFC, Max. Head 62 Ft., Length 15 7/8 In., Width 7 5/8 In., Height 7 1/2 In., Warranty Length 1 Year

Grainger Item #	2YEV5
Price (ea.)	$938.00
Brand	DAYTON
Mfr. Model #	2YEV5
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	35.21
Availability	Typically in Stock
Catalog Page No.	4089
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

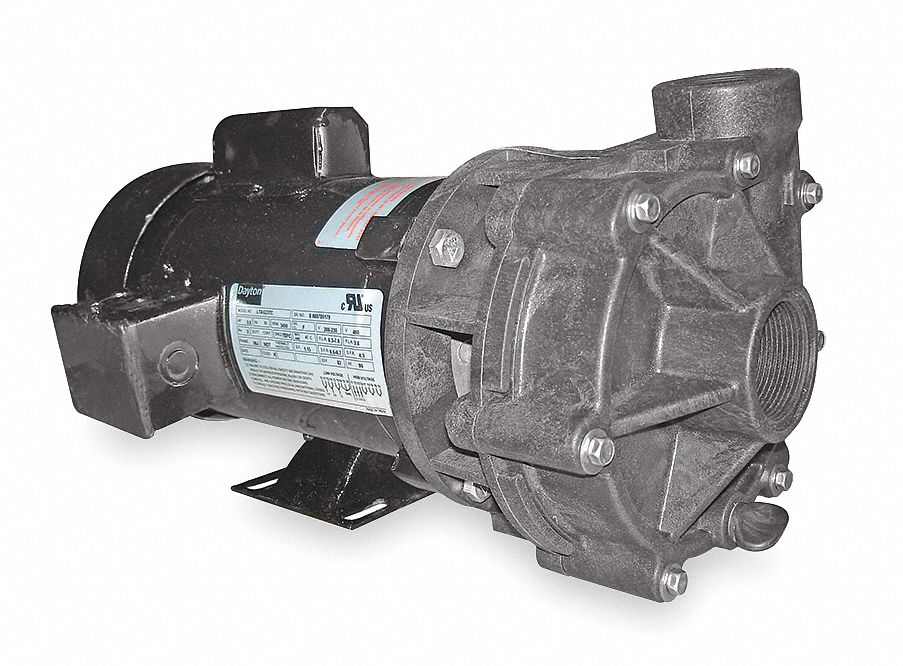

CentrifugalPump, 1/2hp, 1 Ph, 115/208-230V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Chemical Resistant
HP		1/2
Phase		1
Inlet Type		1-1/2" NPT
Voltage		115/208-230
Amps		8.6/4.0-4.3
Housing Material		Noryl
Impeller Material		Noryl
Volute Material		Noryl
Seal Material		Viton, Noryl(TM), Carbon, Ceramic
Seal Type		Mechanical
Outlet (In.)		1 1/2 NPT
Motor Enclosure		TEFC
GPM of Water @ 10 Ft. of Head		26
GPM of Water @ 15 Ft. of Head		24
GPM of Water @ 20 Ft. of Head		23
GPM of Water @ 25 Ft. of Head		21
GPM of Water @ 30 Ft. of Head		19
GPM of Water @ 40 Ft. of Head		14
GPM of Water @ 50 Ft. of Head		11
GPM of Water @ 60 Ft. of Head		9
Max. Head (Ft.)		62
Max. GPM @ Head (Ft.)		35 @ 10
Best Efficiency GPM @ Head (Ft.)		20 @ 35
Min. GPM @ Head (Ft.)		3 @ 60
Best Efficiency Range GPM @ Head (Ft.)		11-20 @ 50-28 Ft.
Length (In.)		15-7/8
Width (In.)		7-5/8
Height (In.)		7-1/2
Hz		60
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		TEFC
Service Factor		1.6
Wetted Materials		Noryl, SS, Viton, Carbon, Ceramic
Shaft Material		Stainless Steel
Screw Material		Stainless Steel
Max. Liquid Temp. (F)		180
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		100
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		75
Impeller Type		Closed
Bearing Type		Ball
Duty		Continuous
Port Rotation		4 Position
Drain Plug		Easily Accessible
Manufacturers Warranty Length		1 Year
Application		Moderate Flow at Moderate Head Pressure
For Use With		Nonflammable and Nonabrasive Liquids
Includes		Manual
