DAYTON Centrifugal Pump, 2 HP, 3 Ph, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Chemical Resistant, 2 HP, 3 Phase, Housing Material Polypropylene, Impeller Material Polypropylene, Volute Material Polypropylene, Seal Material Buna-N, Carbon, Ceramic, SS, Voltage 208-230/460, Amps 5.8/2.9, Inlet (In.) 1 1/2 NPT, Outlet (In.) 1 1/2 NPT, Motor Enclosure TEFC, Max. Head 83 Ft., Length 15 7/8 In., Width 7 5/8 In., Height 7 1/2 In., Warranty Length 1 Year

Grainger Item #	2YEU3
Price (ea.)	$1,256.00
Brand	DAYTON
Mfr. Model #	2YEU3
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	44.05
Availability	Typically in Stock
Catalog Page No.	4089
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

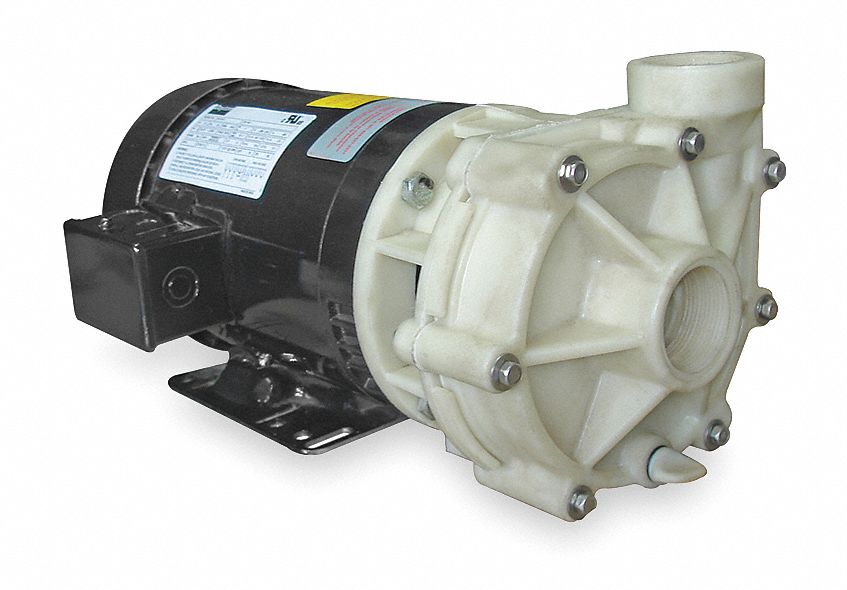

Centrifugal Pump, 2 HP, 3 Ph, 208-230/460V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Chemical Resistant
HP		2
Phase		3
Inlet Type		1-1/2" NPT
Voltage		208-230/460
Amps		6.0-5.8/2.9
Housing Material		Polypropylene
Impeller Material		Polypropylene
Volute Material		Polypropylene
Seal Material		Buna-N, Carbon, Ceramic, SS
Seal Type		Mechanical
Outlet (In.)		1 1/2 NPT
Motor Enclosure		TEFC
GPM of Water @ 10 Ft. of Head		96
GPM of Water @ 15 Ft. of Head		92
GPM of Water @ 20 Ft. of Head		89
GPM of Water @ 25 Ft. of Head		86
GPM of Water @ 30 Ft. of Head		83
GPM of Water @ 40 Ft. of Head		77
GPM of Water @ 50 Ft. of Head		68
GPM of Water @ 60 Ft. of Head		58
GPM of Water @ 70 Ft. of Head		47
GPM of Water @ 80 Ft. of Head		31
Max. Head (Ft.)		83
Max. GPM @ Head (Ft.)		105 @ 10
Best Efficiency GPM @ Head (Ft.)		58 @ 60
Min. GPM @ Head (Ft.)		16 @ 80
Best Efficiency Range GPM @ Head (Ft.)		53-83 @ 75-30 Ft.
Length (In.)		15-7/8
Width (In.)		7-5/8
Height (In.)		7-1/2
Hz		60
NEMA/IEC Frame		56J
Motor RPM		3450
Motor Type		TEFC
Service Factor		1.2
Wetted Materials		Polypropylene, Buna-N, SS, Carbon, Ceramic
Shaft Material		Stainless Steel
Screw Material		Stainless Steel
Max. Liquid Temp. (F)		140
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		100
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		75
Impeller Type		Closed
Bearing Type		Ball
Duty		Continuous
Port Rotation		4 Position
Drain Plug		Easily Accessible
Manufacturers Warranty Length		1 Year
Application		Moderate Flow at Moderate Head Pressure
For Use With		Nonflammable and Nonabrasive Liquids
Includes		Manual
