DAYTON Centrifugal Pump, Self-Priming, 7.5 HP, SS

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Self-Priming, 7-1/2 HP, 3 Phase, Voltage 208-230/460, 18.8-17.8/8.9 Amps, 60 Hz, Inlet 3 In., Outlet 3 In., TEFC Motor Enclosure, NEMA/IEC Frame 184JM, Motor RPM 3450, Service Factor 1.25, Stainless Steel Housing Material, Semi Open Impeller, Stainless Steel Impeller Material, Mechanical Seal, Max. Head 110 Ft., Max. Liquid Temp. 180 F, Inlet Pressure 100 PSI, Max. Dia. Solids 3/8 In., Height 13.2 In., Length 26.75 In., Width 10 In.

Grainger Item #	12N815
Price (ea.)	$3,020.00
Brand	DAYTON
Mfr. Model #	12N815
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	191.0
Availability	Typically in Stock
Catalog Page No.	4078
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

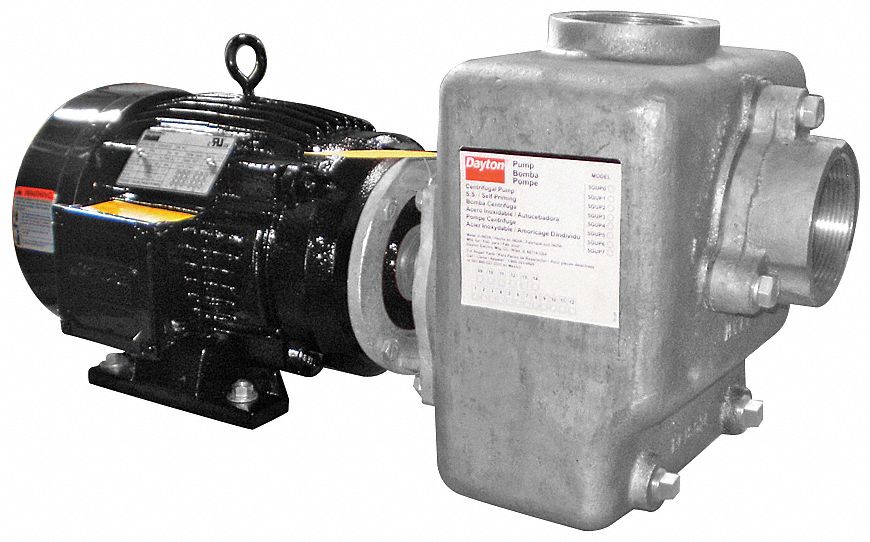

Centrifugal Pump, Self-Priming, 7.5 HP, SS

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Self-Priming
HP		7-1/2
Phase		3
Voltage		208-230/460
Amps		18.8-17.8/8.9
Housing Material		Stainless Steel
Impeller Material		Stainless Steel
Wetted Materials		Stainless Steel,Buna N, Carbon, Ceramic,
Hz		60
Inlet (In.)		3
Outlet (In.)		3
Motor Enclosure		TEFC
NEMA/IEC Frame		184JM
Motor RPM		3450
Motor Type		3 - Phase
Service Factor		1.25
Volute Material		Stainless Steel
Shaft Material		Steel w/Stainless Steel
Screw Material		Stainless Steel
Seal Type		Mechanical
Seal Material		Carbon Ceramic-Viton
Seal Application		Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials up To 200 Degrees F
GPM of Water @ 10 Ft. of Head		352
GPM of Water @ 15 Ft. of Head		342
GPM of Water @ 20 Ft. of Head		333
GPM of Water @ 25 Ft. of Head		323
GPM of Water @ 30 Ft. of Head		309
GPM of Water @ 40 Ft. of Head		285
GPM of Water @ 50 Ft. of Head		257
GPM of Water @ 60 Ft. of Head		228
GPM of Water @ 70 Ft. of Head		195
GPM of Water @ 80 Ft. of Head		157
GPM of Water @ 90 Ft. of Head		121
Max. Head (Ft.)		110
Suction Lift (Ft.)		20
Max. GPM @ Head (Ft.)		352 @ 10
Best Efficiency GPM @ Head (Ft.)		148 @ 82
Min. GPM @ Head (Ft.)		121 @ 90
Best Efficiency Range GPM @ Head (Ft.)		86 to 71 @ 129 to 187
Max. Liquid Temp. (F)		180
Max. Specific Gravity		1.0
Max. Case Pressure (PSI)		125
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		100
Impeller Type		Semi Open
Bearing Type		Ball
Duty		Continuous
Max. Dia. Solids (In.)		3/8
Port Rotation		No
Drain Plug		3/4"-14 NPT
Agency Compliance		UL Approval in Motor
Manufacturers Warranty Length		1 Year
Application		For High Volume Service, Industrial and Commercial Applications, Such as Process Applications, Dewatering, Irrigation, Chemical Transfer, Decorative Water Features
For Use With		Nonflammable and Non-abrasive Liquids Compatible with Pump Component Materials
Height (In.)		13.2
Length (In.)		26.75
Width (In.)		10
Includes		Built In Check Valve, Manual
