Pumps
>
Centrifugal Pumps
>
Straight Center Discharge Pumps

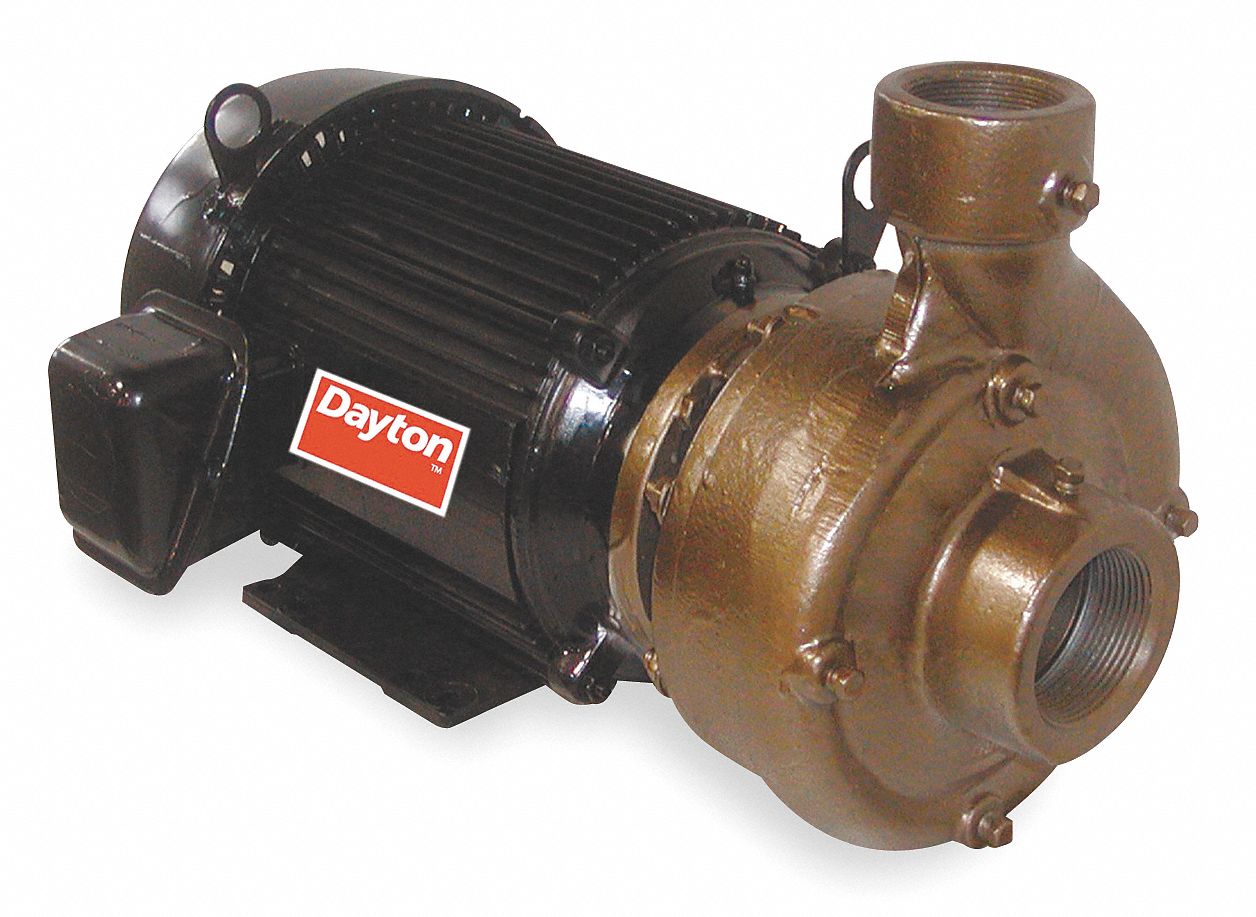

DAYTON Centrifugal Pump, 5 HP, Max. Temp 180F

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Pump, Straight, 5 HP, Voltage 208-230/460, 13.4-12.6/6.3 Amps, 60 Hz, Inlet 2-1/2 NPT In., Outlet 2 NPT In., TEFC Motor Enclosure, NEMA/IEC Frame 184JM, Service Factor 1.25, Naval Bronze Housing Material, Enclosed Impeller, Naval Bronze Impeller Material, Impeller Dia. 5-1/4 In., Max. Dia. Solids 0.48 In., Mechanical Seal, Max. Liquid Temp. 180 F, Max. Head 110 Ft., Inlet Pressure 100 PSI, Length 21.06 In., Height 12.20 In., Width 11.14 In.

Grainger Item #	12A072
Price (ea.)	$2,942.00
Brand	DAYTON
Mfr. Model #	12A072
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	167.75
Availability	Typically in Stock
Catalog Page No.	4077
Country of Origin (Country of Origin is subject to change.)	India

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Pump
Type		Straight
HP		5
Phase		3
Voltage		208-230/460
Amps		13.4-12.6/6.3
Hz		60
Inlet (In.)		2-1/2 NPT
Outlet (In.)		2 NPT
Motor Enclosure		TEFC
NEMA/IEC Frame		184JM
Motor RPM		3450
Motor Type		3 - Phase
Service Factor		1.25
Wetted Materials		Naval Bronze, Carbon, Cermic, Buna N, Stainless Steel
Impeller Material		Naval Bronze
Housing Material		Naval Bronze
Volute Material		Naval Bronze
Shaft Material		Steel
Screw Material		Zinc Plated
Seal Type		Mechanical
Seal Material		Carbon Ceramic, NBR Elastomer, 304 Stainless Steel
Seal Application		Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials
Bearings		Double Sealed Ball Bearing
Max. Liquid Temp. (F)		180
Max. Head (Ft.)		110
Best Efficiency GPM @ Head (Ft.)		155 @ 80
Best Efficiency Range GPM @ Head (Ft.)		68 to 90 @ 188 to 123
Max. Specific Gravity		1.0
Max. Fluid Viscosity		100 SSU
Inlet Pressure (PSI)		100
Impeller Type		Enclosed
Bearing Type		Double Sealed Ball Bearing
Duty		Continuous
Max. Pressure (PSI)		47
Max. Dia. Solids (In.)		0.48
Port Rotation		4 Position Increments
Drain Plug		Easily Accessible
Agency Compliance		UL Approval in Motor
Length (In.)		21.06
Height (In.)		12.20
Width (In.)		11.14
For Use With		Nonflammable and Nonabrasive Liquids Compatible with Pump Component Materials
Application		For High Volume Service, For Industrial and Commercial Applications, Such as Process Applications, Dewatering, Irrigation,Chemical Transfer, Decorative Water Features.
Manufacturers Warranty Length		1 Year
