DAYTON C-Frame Motor, Ball, Shaded Pole, 2 In. L

| Write a Review
| Read all Reviews
| Read all Ask & Answer

C-Frame Motor, Motor Type Shaded Pole, Enclosure Open Air-Over, 1/40 HP, Number of Speeds 1, Nameplate RPM 3000, NEMA/IEC Frame Nonstandard, Voltage 115, Frequency 60 Hz, 1 Phase, 1.44 Full Load Amps, Stud/Hole Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.0, Ball Bearings, Ambient Temperature 40 Degrees C, Rotation CWSE, Length Less Shaft 2-1/2 In., Shaft Dia. 1/4 In., Shaft Length 2 In., Stack Size 1-1/2 In., Stud Quantity 2, Stud Size #8-32, Stud Location Shaft End

Grainger Item #	4M080
Price (ea.)	$61.30
Brand	DAYTON
Mfr. Model #	4M080
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.55
Availability	Typically in Stock
Catalog Page No.	57
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

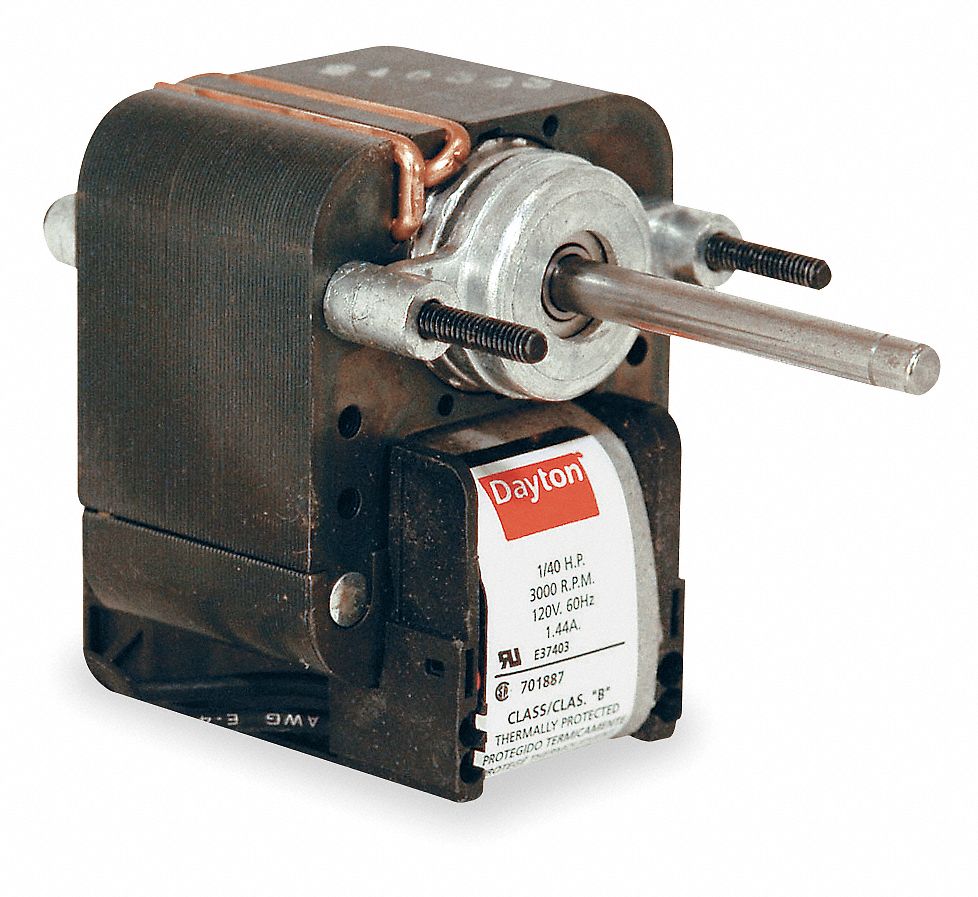

C-Frame Motor, Ball, Shaded Pole, 2 In. L

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		C-Frame Motor
Motor Type		Shaded Pole
Enclosure		Open Air-Over
HP		1/40
Number of Speeds		1
Nameplate RPM		3000
NEMA/IEC Frame		Nonstandard
Voltage		115
Frequency		60 Hz
Phase		1
Full Load Amps		1.44
Mounting		Stud/Hole
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Ambient Temperature		40 Degrees C
Rotation		CWSE
Length Less Shaft		2-1/2"
Shaft Dia.		1/4"
Shaft Length		2"
Stack Size		1-1/2"
Stud Quantity		2
Stud Size		#8-32
Stud Location		Shaft End
Mounting Holes		Opposite Shaft End
O.C. Mounting		1-7/8"
RPM Range		2350-3600
Standards		UL Recognized (E37403/E40077/E47479), CSA Certified (701887)
