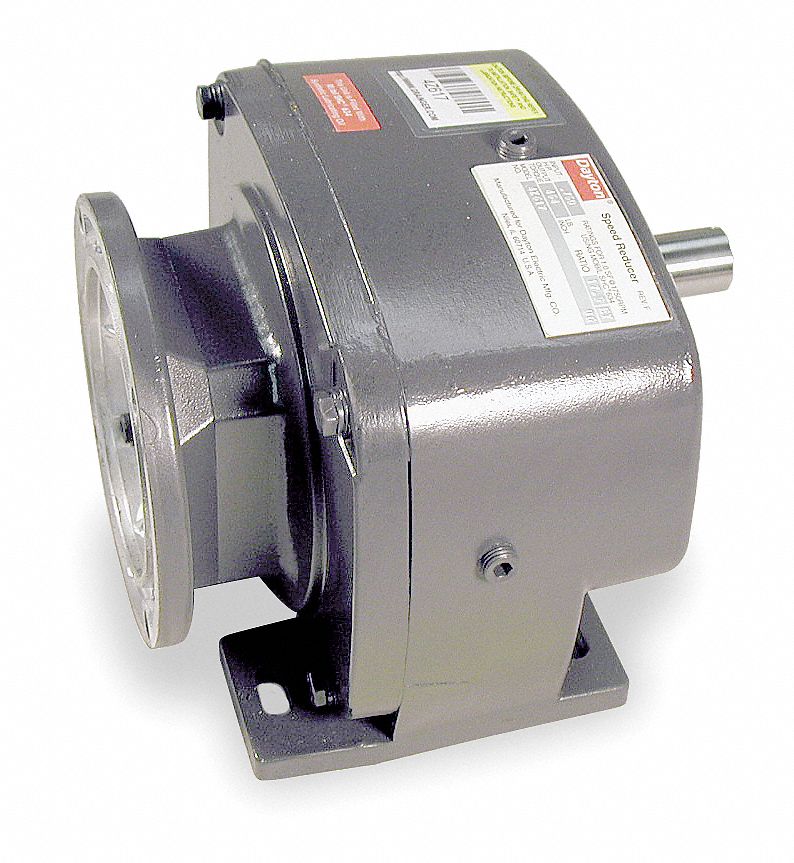

DAYTON Reducer, Speed, 45 RPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

C Face Parallel Shaft Speed Reducer, Nominal Output Speed 45 RPM, Input RPM 1725-1750, NEMA Frame 56C, Nominal Ratio 38.5:1, Overhung Load 863, Output Torque @ 1/4 HP 333 Inch Pounds, Output Torque @ 1/3 HP 443 Inch Pounds, Output Torque @ 1/2 HP 665 Inch Pounds, Output Shaft Height 4.88 Inches, Output Shaft Diameter 1 Inch

Grainger Item #	4Z615
Price (ea.)	$675.00
Brand	DAYTON
Mfr. Model #	4Z615
UNSPSC #	26111503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	26.0
Availability	Typically in Stock
Catalog Page No.	132
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Speed Reducer
Type		C-Face
Shaft Orientation		Parallel
Duty		Standard
Input RPM		1725
Nominal Output RPM		45
NEMA/IEC Frame		56C
Overhung Load (Lb.)		863
Nominal Ratio		38.5:1
Max. Input HP		1/2
Max. Torque (In.-Lbs.)		665
Output Torque @ 1/4 HP (In.-Lb.)		333
Output Torque @ 1/3 HP (In.-Lb.)		443
Output Torque @ 1/2 HP (In.-Lb.)		665
Number of Stages		1
Rotation		Forward/Reverse
Lubrication		Kluber Food Grade
Oil Seal		Double Lip
Bearings		Ball
Pinion		Hardened Steel
Gearing		Helical and Spur
Finish		Powdered Epoxy Paint
Output Shaft Dia. (In.)		1
Output Shaft Height (In.)		4.88
