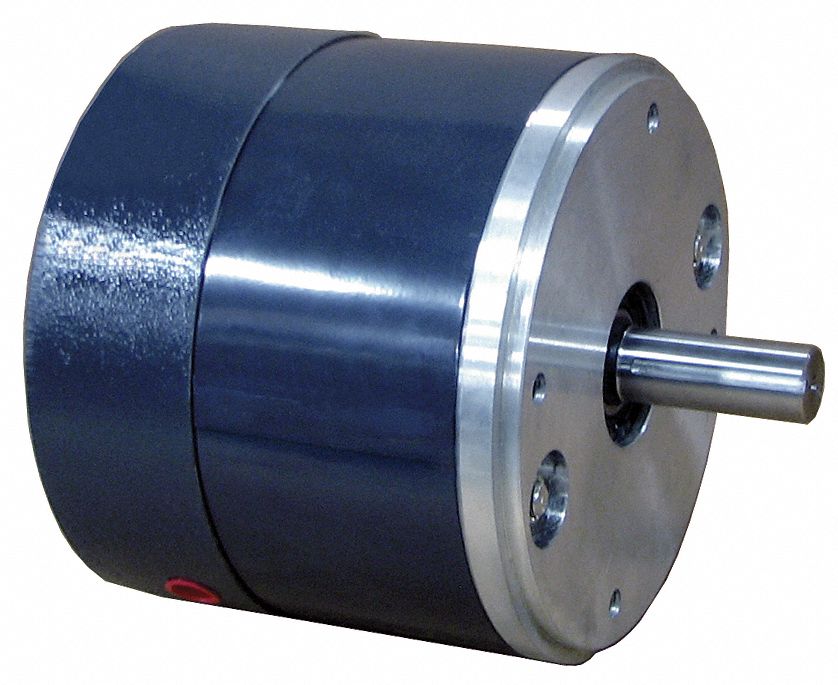

DAYTON Brake, Magnetic Disc, Torque 50 Ft-Lb

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Brake, Double C-Face Magnetic Disc, Static Torque 50 Ft.-Lb., Shaft Dia. 1 3/8 In., Watertight/ Dust Proof Enclosure, Continous Duty, 208-230/460 Voltage @ 60 Hz, 174-190/380 Voltage @ 50 Hz, Single Phase, Max. RPM 3600, Max. HP @ 1725 RPM 10, Max. HP @ 3450 RPM 20, Ambient 40 Degrees C, 60/50 Hz, 0.6/0.3 Amps Holding, 5.3/2.7 Inrush Amps, 1.4 Service Factor, 213/215TC NEMA/IEC Frame, Power Lead Length 18 In., Red Primer/Aluminum Finish, Length 8-1/8 In., Dia. 8.65 In.

Grainger Item #	5URD3
Price (ea.)	$2,594.00
Brand	DAYTON
Mfr. Model #	5URD3
UNSPSC #	25171708
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	55.0
Availability	Typically in Stock
Catalog Page No.	137
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Brake
Type		Double C-Face Magnetic Disc
Static Torque (Ft.-Lb.)		50
Shaft Dia. (In.)		1 3/8
Max. Bore (In.)		1 3/8
Keyseat Size (In.)		5/16 x 5/32
Enclosure		Waterproof/Dust-Tight
Duty		Continous
Voltage @ 60 Hz		208-230/460
Voltage @ 50 Hz		174-190/380
Coil Volts		208-230/460VAC Or 174-190/380VAC
Phase		Single
Max. RPM		3600
Max. HP @ 1725 RPM		10
Max. HP @ 3450 RPM		20
Ambient (C)		40 Degrees
Hz		60/50
Amps Holding		0.6/0.3
Inrush Amps		5.3/2.7
Service Factor		1.4
NEMA/IEC Frame		213/215TC
Power Lead Length (In.)		18
Lever Type		Manual Release
Mounts On		213/215TC Motor Flange
Finish		Red Primer/Aluminum
Length (In.)		8-1/8
Width (In.)		N/A
Dia. (In.)		8.65
Series		85 Series
Function		Stops And Holds A Motor Shaft From Rotating
Application		Brake Attaches To The Drive End Of A Motor And Gear Reducer To Stop And Hold The Load.
Converts		Motor To A Brake Motor
Agency Compliance		CSA, ROHS Compliant
Includes		Brake, Instructions And Mounting Hardware
