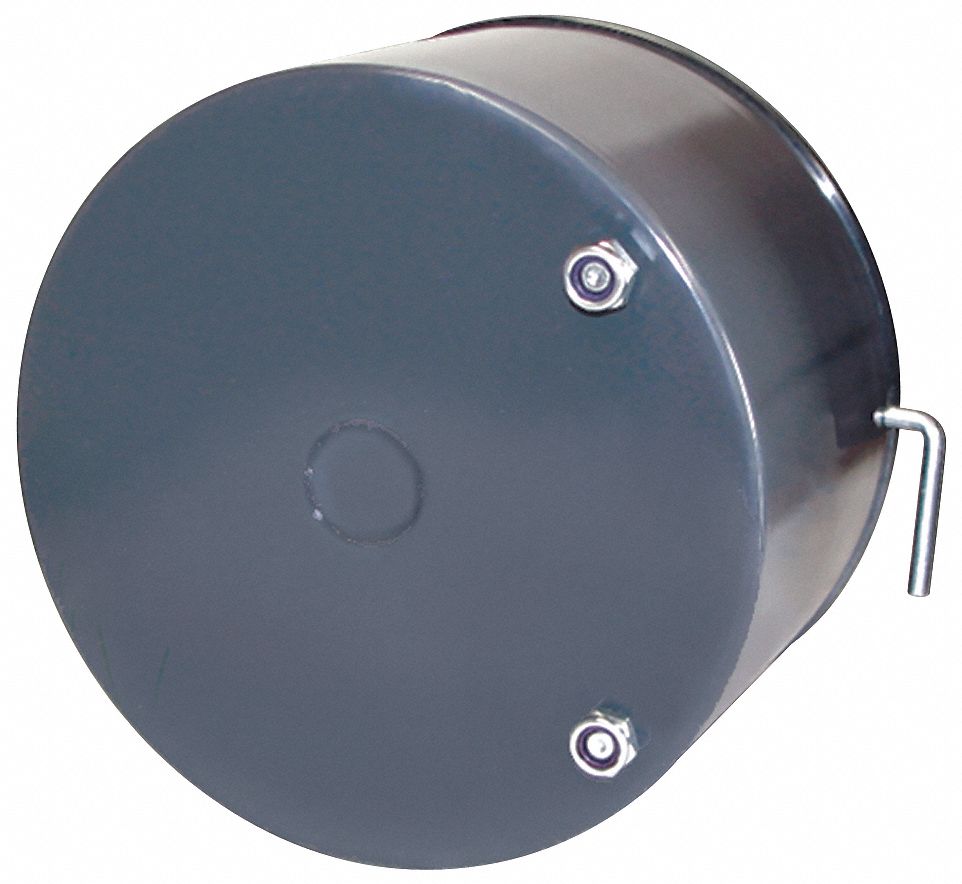

DAYTON Brake, End Mount Disc, Torque 15 Ft.-Lb

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Brake, End Mount Disc, Static Torque 15 Ft.-Lb., Shaft Dia. 7/8 In., Dripproof Enclosure, Continous Duty, 208-230/460 Voltage @ 60 Hz, 174-190/380 Voltage @ 50 Hz, Single Phase, Max. RPM 3600, Max. HP @ 1725 RPM 3, Max. HP @ 3450 RPM 5, Ambient 40 Degrees C, 60/50 Hz, 0.3/0.2 Amps Holding, 5.9/3.0 Inrush Amps, 1.4 Service Factor, 143/145TC NEMA/IEC Frame, Power Lead Length 18 In., Red Primer Finish, Length 4 In., Dia. 6.50 In.

Grainger Item #	5URA7
Price (ea.)	$436.75
Brand	DAYTON
Mfr. Model #	5URA7
UNSPSC #	25171708
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.67
Availability	Typically in Stock
Catalog Page No.	137
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Brake
Type		End Mount Disc
Static Torque (Ft.-Lb.)		15
Shaft Dia. (In.)		7/8
Max. Bore (In.)		7/8
Keyseat Size (In.)		3/16 x 3/32
Enclosure		Dripproof
Duty		Continous
Voltage @ 60 Hz		208-230/460
Voltage @ 50 Hz		174-190/380
Coil Volts		208-230/460VAC or 174-190/380VAC
Phase		Single
Max. RPM		3600
Max. HP @ 1725 RPM		3
Max. HP @ 3450 RPM		5
Ambient (C)		40 Degrees
Hz		60/50
Amps Holding		0.3/0.2
Inrush Amps		5.9/3.0
Service Factor		1.4
NEMA/IEC Frame		143/145TC
Power Lead Length (In.)		18
Lever Type		Manual Release
Mounts On		143/145TC Motor Flange
Finish		Red Primer
Length (In.)		4
Width (In.)		N/A
Dia. (In.)		6.50
Series		5607 Style
Function		Stops And Holds A Motor Shaft From Rotating
Application		Brake Attaches To The Accessory End Of A Motor To Stop And Hold The Motor Shaft
Converts		Motor To A Brake Motor
Agency Compliance		CSA, ROHS Compliant
Includes		Brake And Instruction Manual
