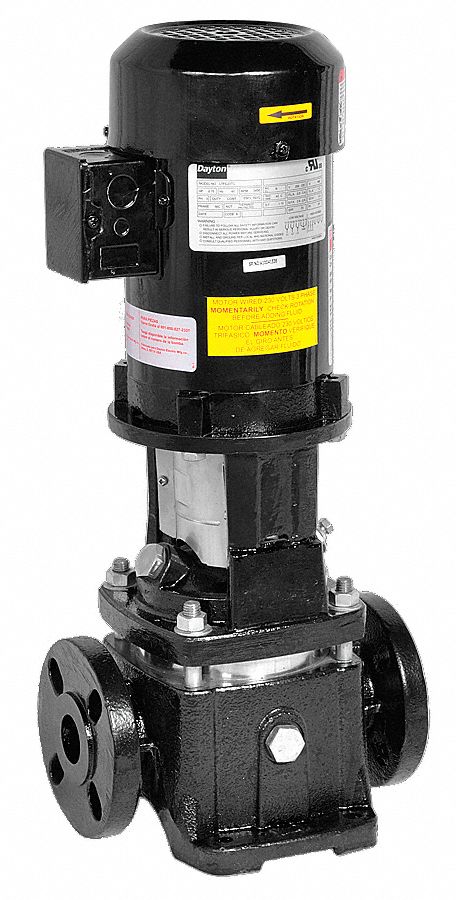

DAYTON Booster Pump, 3/4 HP, 3 Ph, 2 Stages

Booster Pump, Vertical Multi-Stage, 3/4 HP, 3 Phase, Voltage 208-230/460, 2.5-2.4/1.2 Amps, Inlet/Outlet 1-1/4 In. FNPT, Stages 2, Max. Pressure (PSI) 27, Housing Material Cast Iron, Max. Case Pressure (PSI) 362, Max. Liquid Temp. (F) 248, Motor Enclosure TEFC, Motor RPM 3450, For Use With Nonflammable Liquids Compatible with Pump Component Materials, Agency Compliance UL, Manufacturers Warranty Length 1 Year, Includes Manual
  • Grainger Item #5UWH8
    Price (ea.)$997.50
    BrandDAYTON
    Mfr. Model #5UWH8
    UNSPSC #40151503
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)68.4
    Availability Item ships within 4 business days from supplier
    Catalog Page No.4081
    Country of Origin
    (Country of Origin is subject to change.)
    India
  • Price shown may not reflect your price. Sign in or register.
ItemBooster Pump
TypeVertical Multi-Stage
HP3/4
Phase3
Voltage208-230/460
Amps2.5-2.4/1.2
Inlet/Outlet1-1/4" FNPT
Stages2
GPM @ 10 PSI40
Max. Pressure (PSI)27
Housing MaterialCast Iron
Impeller MaterialStainless Steel
Impeller TypeClosed
Max. Case Pressure (PSI)362
Max. Fluid Viscosity100 SSU
Max. Liquid Temp. (F)248
Motor EnclosureTEFC
Seal TypeBalanced Cartridge
Seal MaterialSilicon Carbide, Stainless Steel, EPDM
Wetted MaterialsCast Iron, Stainless Steel, Silicon Carbide, EPDM
Motor RPM3450
Motor Type3 Phase
NEMA/IEC Frame56C
For Use WithNonflammable Liquids Compatible with Pump Component Materials
ApplicationPressure Boosting in Buildings and Industries, Reverse Osmosisand Ultra Filtration, Fire Fighting Systems, Boiler Feed and Condensate Systems, Washing and Cleaning Systems
Agency ComplianceUL
Manufacturers Warranty Length1 Year
IncludesManual
Length (In.)9-7/8
Width (In.)8-3/4
Height (In.)22
Bearing TypeBall
Best Efficiency GPM @ Head (Ft.)30 @ 38
Best Efficiency Range GPM @ Head (Ft.)42-13 @ 19-58
Diffuser MaterialStainless Steel
DutyContinuous
GPM @ 20 PSI20
Hz60
Motor Ambient Temp. Rating40 Degrees C
Plug or Connector Type1/2" BSP THD.
Seal ApplicationNonflammable Liquids Compatible with Pump Component Materials
Service Factor1.15
Shaft MaterialStainless Steel
Suction Lift (Ft.)NA

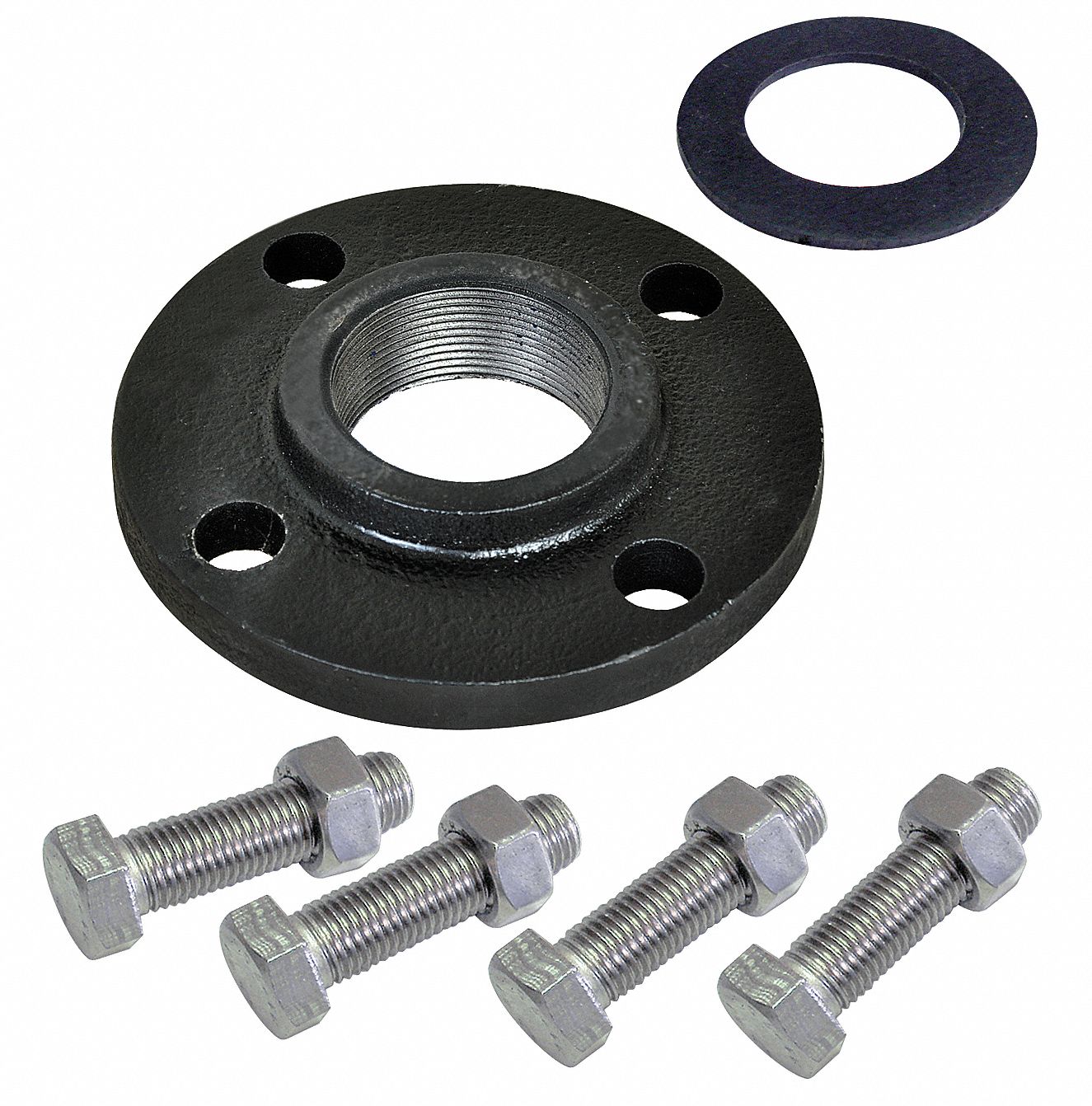

Optional Accessories
