Pumps
>
Centrifugal Pumps
>
Booster Pumps and Systems

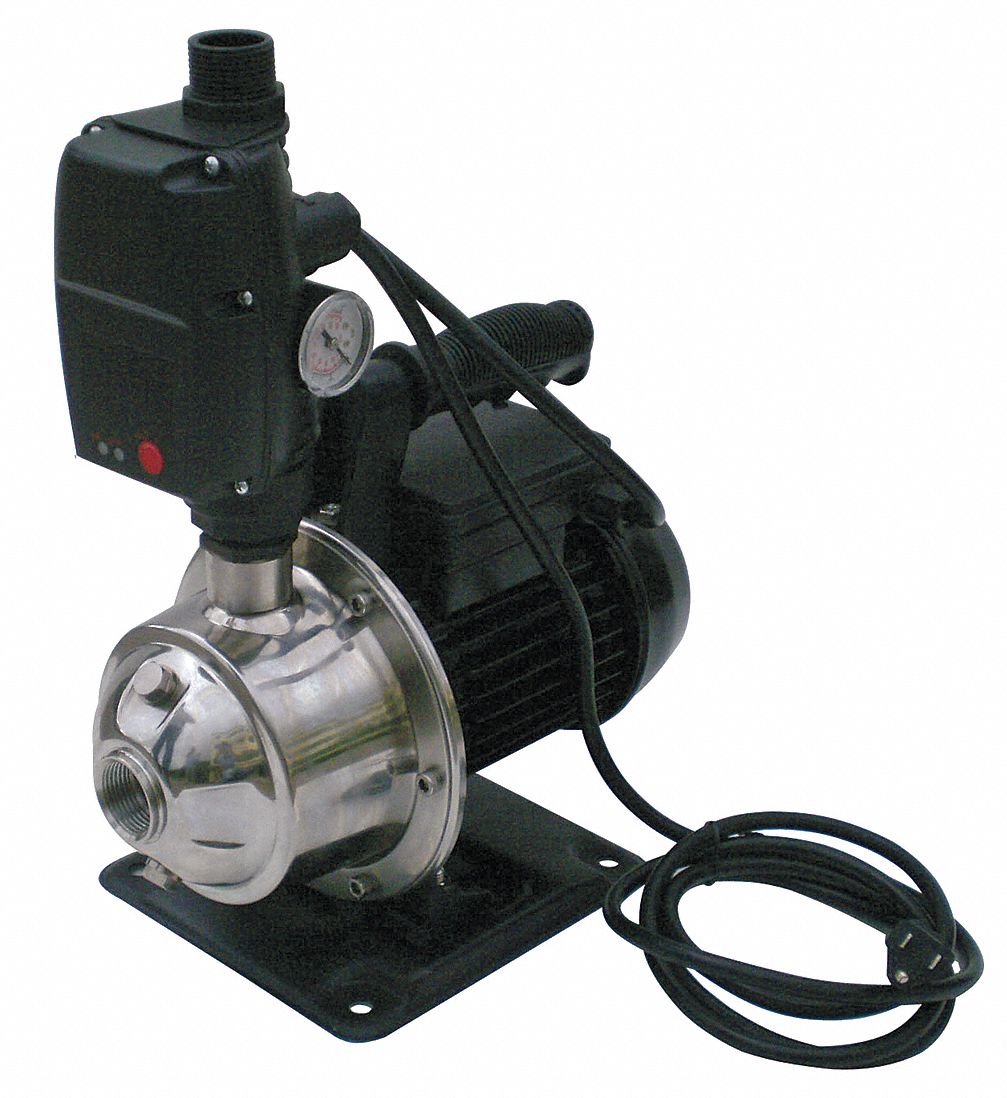

DAYTON Booster Pump, Stainless Steel, 1 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Booster Pump, Housing Material Stainless Steel, 1 HP, 1 Phase, Voltage 115, 7.7 Amps, Inlet 1 In., Outlet 1 In., Max. Case Pressure 75 PSI, Impeller Material Thermoplastic, Impeller Type Closed, Max. Liquid Temp. 90 F, Stages 2, Max. Dia. Solids 1 In., Pressure Switch Setting 14.5-45, Service Factor 1.1, For Use With Nonflammable Liquids Compatible with Pump Component Materials, Agency Compliance CSA CUS, Warranty Length 1 Year

Grainger Item #	4HFA8
Price (ea.)	$614.00
Brand	DAYTON
Mfr. Model #	4HFA8
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	22.35
Availability	Typically in Stock
Catalog Page No.	4080
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Booster Pump
Motor Enclosure		TEFC
Housing Material		Stainless Steel
HP		1
Phase		1
Voltage		115
Amps		7.7
Hz		60
Inlet (In.)		1
Outlet (In.)		1
GPM @ 15 PSI		21.4
GPM @ 20 PSI		20.4
GPM @ 25 PSI		18.7
GPM @ 30 PSI		15.2
GPM @ 35 PSI		11.8
GPM @ 40 PSI		7.7
Max. Pressure (PSI)		47.1
Suction Lift (Ft.)		25
Max. Case Pressure (PSI)		75
Max. PSI Boost @ 2-10 GPM		47.1
Max. PSI Boost @ 20 GPM		20.4
Max. PSI Boost @ 30 GPM		18.7
Max. GPM @ PSI		28.6 @ 47.1
Best Efficiency GPM @ PSI		15.2 @ 30
Min. GPM @ PSI		28.6 @ 47.1
Pressure Range (PSI)		0-47.1
Best Efficiency GPM @ Head (Ft.)		15.2 @ 67
Best Efficiency Range GPM @ Head (Ft.)		15-21 GPM @ 45-67.8 Ft
Motor RPM		3450
Motor Type		PSC
Duty		Continuous
Wetted Materials		Thermoplastic,CI,416 SS,Buna N,Carbon,Ceramic,BR
Impeller Material		Thermoplastic
Impeller Type		Closed
Diffuser Material		Cast Iron
Seal Material		Buna
Seal Type		Mechanical Seal
Shaft Material		Stainless Steel
Seal Application		Clear Water Below 200 PSI
Max. Liquid Temp. (F)		90
Min. Inlet Flow Required		28.6
Max. Inlet Pressure (PSI)		50
Stages		2
Max. Dia. Solids (In.)		1
Max. Fluid Viscosity		100 SSU
Plug or Connector Type		Direct Wire
Pressure Switch Setting		14.5-45
Length (In.)		17
Width (In.)		10
Height (In.)		18
Motor Ambient Temp. Rating		65C/149F
Service Factor		1.1
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Home Water System
Agency Compliance		CSA CUS
Manufacturers Warranty Length		1 Year

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	4HFA7 Parts Info	Booster Pump, Stainless Steel, 3/4 HP >More Details... Country of Origin: China	DAYTON 4HFA7	Typically in Stock	$504.50
