HVAC and Refrigeration
>
Blowers
>
Belt Drive Single Inlet Forward Curve Blowers

460 V, 3 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Blower, Forward Curve, Belt Drive, Unassembled, Wheel Diameter 24 1/2 Inches, Shaft Diameter 1 7/16 Inch, Airflow @ 0.500/0.750/1.000 Inch Static Pressure 8210/7075/4485 CFM, Blower Speed 398 RPM, Includes 2 HP 230/460 Volt 3 Phase Motor, Drives And Weatherproof Drive Cover, Height 48 Inches, Width 46 Inches, Depth 43 Inches, Inlet Diameter 26 3/8 Inches, Outlet Height 26 1/4 Inches, Outlet Width 19 1/4 Inches, Maximum Inlet Air Temperature 250 Degrees F, CW Rotation Viewed From Drive Side

Grainger Item #	7C901
Price (ea.)	$3,933.00
Brand	DAYTON
Mfr. Model #	7C901
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	508.62
Availability	Typically in Stock
Catalog Page No.	4519
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

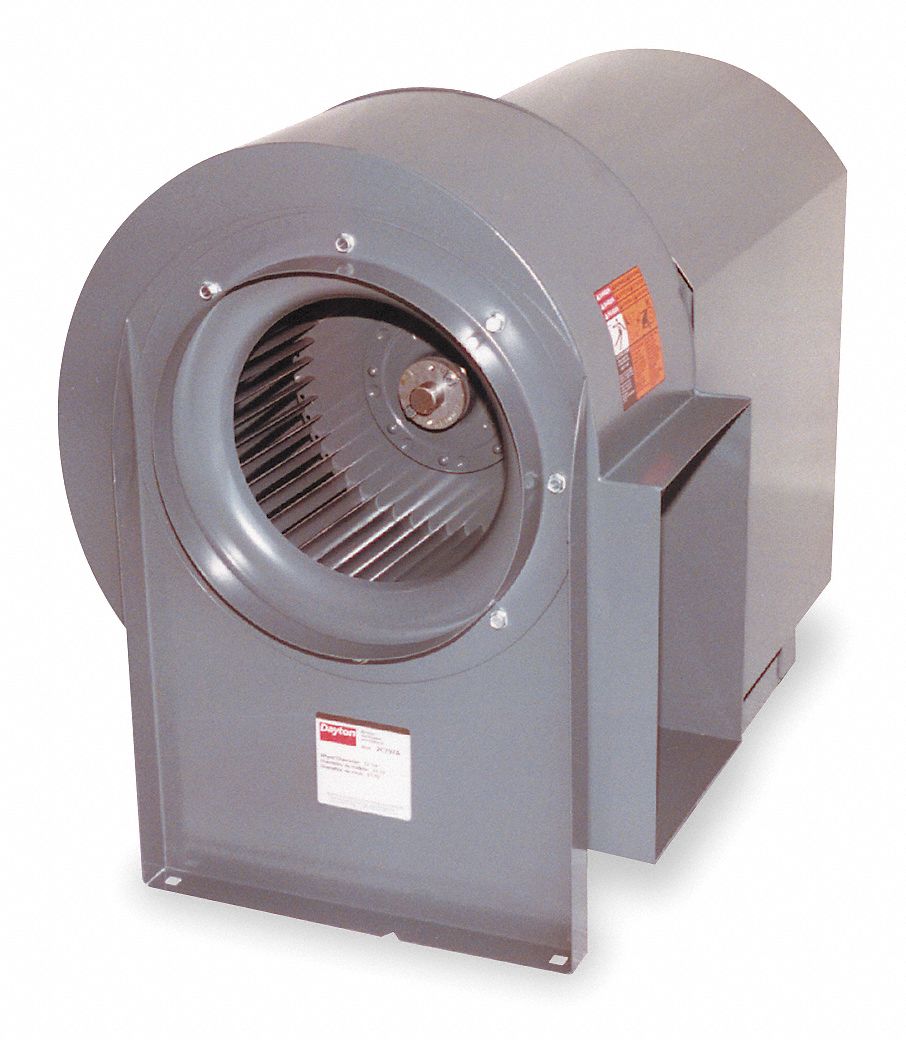

Blower, 24 1/2 In, 2 HP, 230/460 V, 3 Ph

Enlarge Image

Item		Blower
Type		With Drive Package
Wheel Dia. (In.)		24-1/2
CFM @ 0.125-In. SP		#
CFM @ 0.250-In. SP		#
CFM @ 0.375-In. SP		#
CFM @ 0.500-In. SP		8210
CFM @ 0.750-In. SP		7075
CFM @ 1.000-In. SP		4485
dBA @ 5 Feet		58
Max. Inlet Temp. (Deg. F)		250
Max. Ambient Temp. (F)		104
Voltage		230/460
Phase		3
Hz		60
Full Load Amps		6.0/3.0
Motor HP		2
Motor RPM		1740
Motor Enclosure		Open Dripproof
Motor Frame		145T
Motor Type		Three Phase
Shaft Dia. (In.)		1-7/16
Height (In.)		48
Width (In.)		46
Depth (In.)		43
Inlet Dia. (In.)		26-3/8
Discharge Height (In.)		26-1/4
Discharge Width (In.)		19-1/4
Wheel Width (In.)		12-7/16
Blower RPM		398
Rotation		CW
Bearing Type		Ball
Wheel Material		Steel
Housing Material		Steel
Housing Finish		Gray Baked Polyester Epoxy
Footnotes		# Motor Overload Condition
Includes		Weather Proof Drive Cover
