HVAC and Refrigeration
>
Blowers
>
Direct Drive Single Inlet Forward Curve Blowers

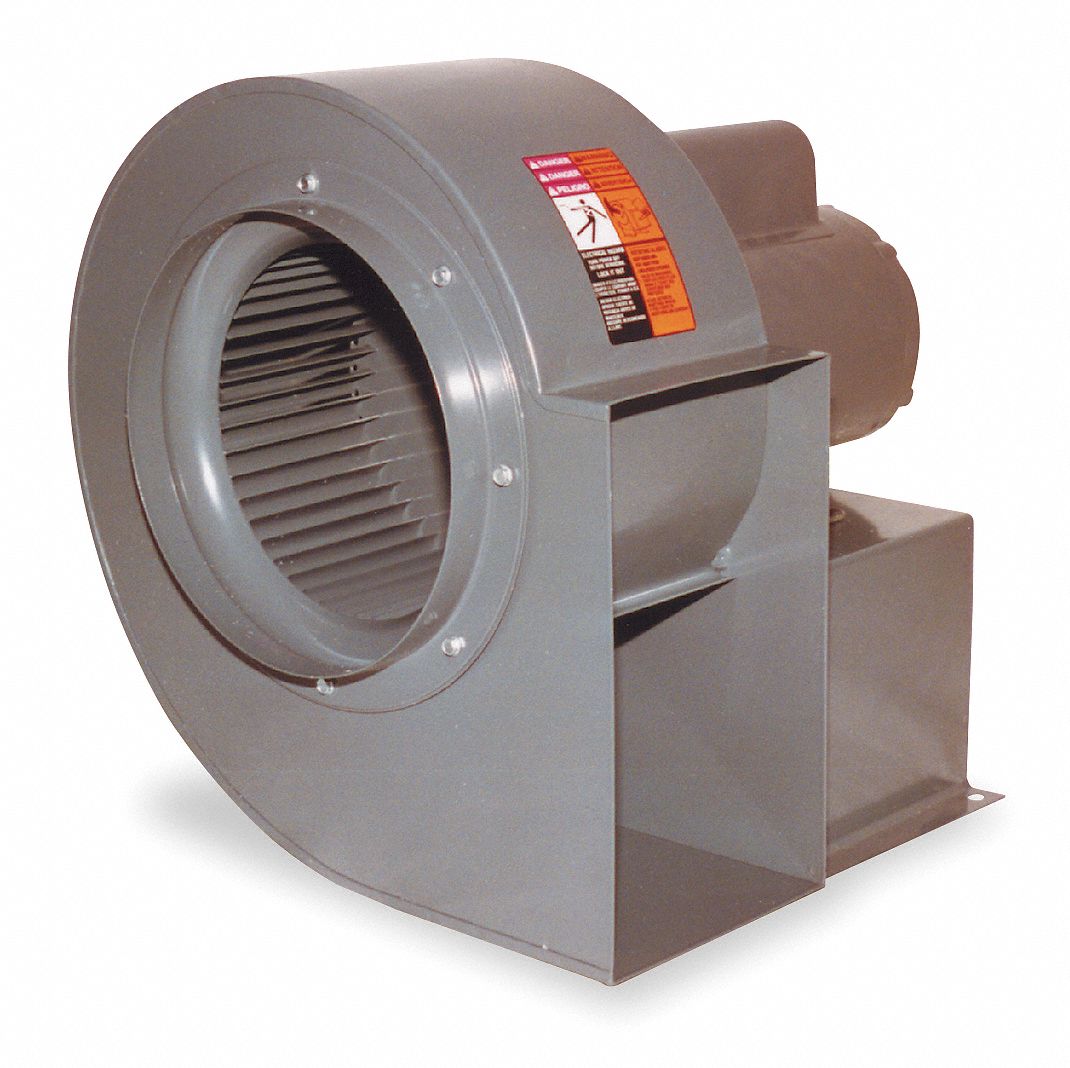

DAYTON Direct Drive Blower, 115/230 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Blower, Direct Drive Forward Curve With Motor, Wheel Dia 9 In, CFM @ 0000-In SP 1005, @ 0125-In SP 968, @ 0250-In SP 930, dBA @ 5 Feet 58, Blower RPM 1725, Max Inlet Temp 180 Deg F, Max Ambient Temp 104 F, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 6.1/3.1, Motor HP 1/3, Height 18 In, Width 16 In, Depth 15 In, Inlet Dia 9 In, Outlet Height 10 3/4 In, Outlet Width 6 1/2 In, Rotation CW Viewing Drive Side, Housing Finish Gray Polyester Epoxy

Grainger Item #	7AP76
Price (ea.)	$493.50
Brand	DAYTON
Mfr. Model #	7AP76
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	43.4
Availability	Typically in Stock
Catalog Page No.	4518
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Blower
Type		With Motor
Wheel Dia. (In.)		9
CFM @ 0.000-In. SP		1005
CFM @ 0.125-In. SP		968
CFM @ 0.250-In. SP		930
CFM @ 0.500-In. SP		850
CFM @ 0.750-In. SP		773
CFM @ 1.250-In. SP		480
dBA @ 5 Feet		58
Blower RPM		1725
Max. Inlet Temp. (Deg. F)		180
Max. Ambient Temp. (F)		104
Voltage		115/230
Hz		60
Phase		1
Full Load Amps		6.1/3.1
Motor HP		1/3
Motor RPM		1725
Motor Type		Capacitor-Start
Motor Enclosure		Totally Enclosed Fan-Cooled
Bearing Type		Ball
Height (In.)		18
Width (In.)		16
Depth (In.)		15
Inlet Dia. (In.)		9
Outlet Height (In.)		10-3/4
Outlet Width (In.)		6-1/2
Wheel Width (In.)		4-1/2
Wheel Bore (In.)		1/2
Wheel Material		Steel
Rotation		CW Viewing Drive Side
Housing Material		Steel
Housing Finish		Gray Polyester Epoxy
