HVAC and Refrigeration
>
Blowers
>
Direct Drive Double Inlet Fwd Curve Blowers w/Dr Pkg

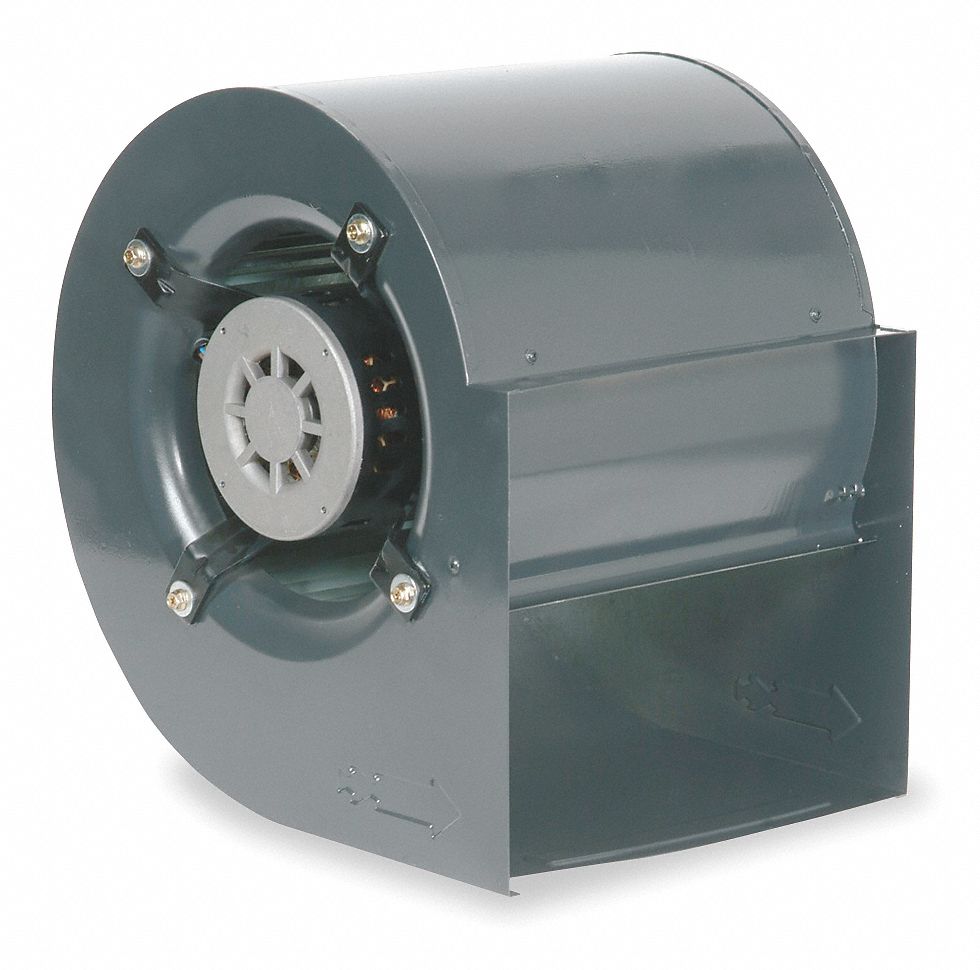

DAYTON Blower, Assembled, 115 Volt, 4 Speed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Blower, Assembled, Double Inlet Forward Curve, Direct Drive, With Motor, 4 Speed, Wheel Dia 9 7/16 In, CFM Range 1638 to 813 @ 0.300-In SP to 0.900-In SP, Max Inlet Temp 104 Deg F, Voltage 115, 60 Hz, Single Phase, Motor HP 1/3, Housing Height 15 9/32 In, Housing Width 12 5/16 In, Housing Depth 15 In, Discharge Height 10 1/4 In, Discharge Width 11 13/16 In, Housing Material Steel, Housing Finish Gray Enamel

Grainger Item #	1XJX9
Price (ea.)	$384.00
Brand	DAYTON
Mfr. Model #	1XJX9
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.2
Availability	Typically in Stock
Catalog Page No.	4511
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Blower
Type		Assembled, Double Inlet Forward Curve, Direct Drive, With Motor
Speed		4
Wheel Dia. (In.)		9-7/16
Wheel Width (In.)		9-7/16
CFM Range		1638 to 813 @ 0.300-In SP to 0.900-In SP
CFM @ 0.000-In. SP		# # # #
CFM @ 0.300-In. SP		1638 1516 1368 1132
CFM @ 0.400-In. SP		1610 1496 1310 1101
CFM @ 0.500-In. SP		1545 1437 1280 1083
CFM @ 0.600-In. SP		1457 1373 1256 1046
CFM @ 0.700-In. SP		1358 1320 1185 1012
CFM @ 0.800-In. SP		1225 1139 1052 896
CFM @ 0.900-In. SP		1050 926 826 813
CFM @ 1.000-In. SP		- - - -
CFM @ 1.10-In. SP		- - - -
CFM @ 1.200-In. SP		- - - -
CFM @ 1.250-In. SP		- - - -
CFM @ 1.30-In. SP		- - - -
CFM @ 1.40-In. SP		- - - -
CFM @ 1.500-In. SP		- - - -
CFM @ 1.600-In. SP		- - - -
CFM @ 1.70-In. SP		- - - -
CFM @ 1.80-In. SP		- - - -
Max. Inlet Temp. (Deg. F)		104
Max. Ambient Temp. (F)		104
Voltage		115
Hz		60
Phase		Single
Full Load Amps		6.9
Motor HP		1/3
Motor RPM		10851040937858
Motor Type		Permanent Split Capacitor
Bearing Type		Ball
Motor Enclosure		Open Dripproof
Housing Height (In.)		15-9/32
Housing Width (In.)		12-5/16
Housing Depth (In.)		15
Discharge Height (In.)		10-1/4
Discharge Width (In.)		11-13/16
Mounting		Multipostion
Housing Material		Steel
Housing Finish		Gray
Wheel Material		Steel
Speed Controllable		No
Agency Compliance		CE
Footnotes		# Motor Overload Condition

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

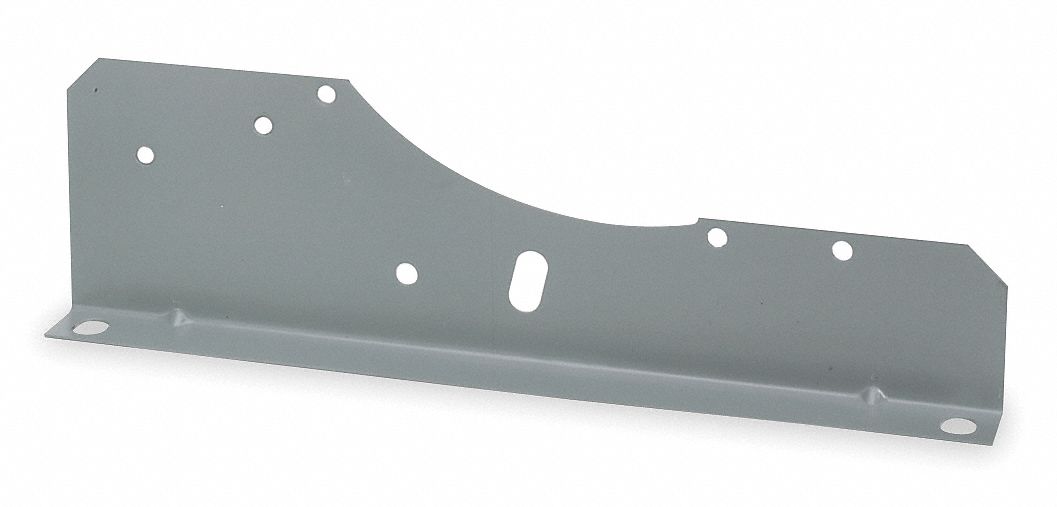

Blower Support for Dayton Blowers
