DAYTON Motor, 1/2 HP, Split Ph, 1725 RPM, 115 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Belt Drive Motor, Split-Phase, 1/2 HP, Nameplate RPM 1725, Voltage 115, 1 Phase, Frame 48Y, Open Dripproof, Full Load Amps 7.6, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.25Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 1/2 In., Shaft Length 1-1/2 In.

Grainger Item #	6K589
Price (ea.)	$177.00
Brand	DAYTON
Mfr. Model #	6K589
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	18.94
Availability	Typically in Stock
Catalog Page No.	81
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

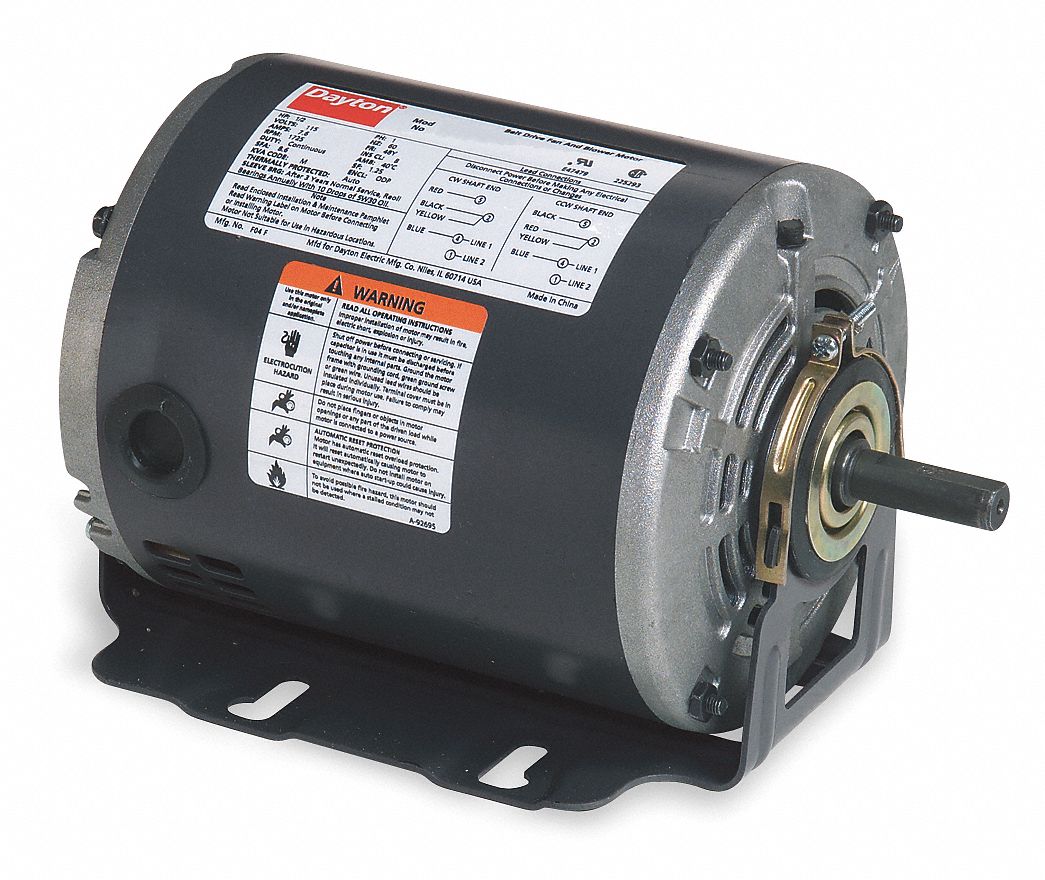

Motor, 1/2 HP, Split Ph, 1725 RPM, 115 V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Belt Drive Motor
Motor Type		Split-Phase
HP		1/2
Nameplate RPM		1725
Voltage		115
Frame		48Y
Enclosure		Open Dripproof
Mounting		Cradle
Hz		60
Full Load Amps		7.6
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.25
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1/2"
Shaft Length		1-1/2"
Body Dia.		5-5/8"
Duty		Continuous
RPM Range		1400-1800
Phase		1
