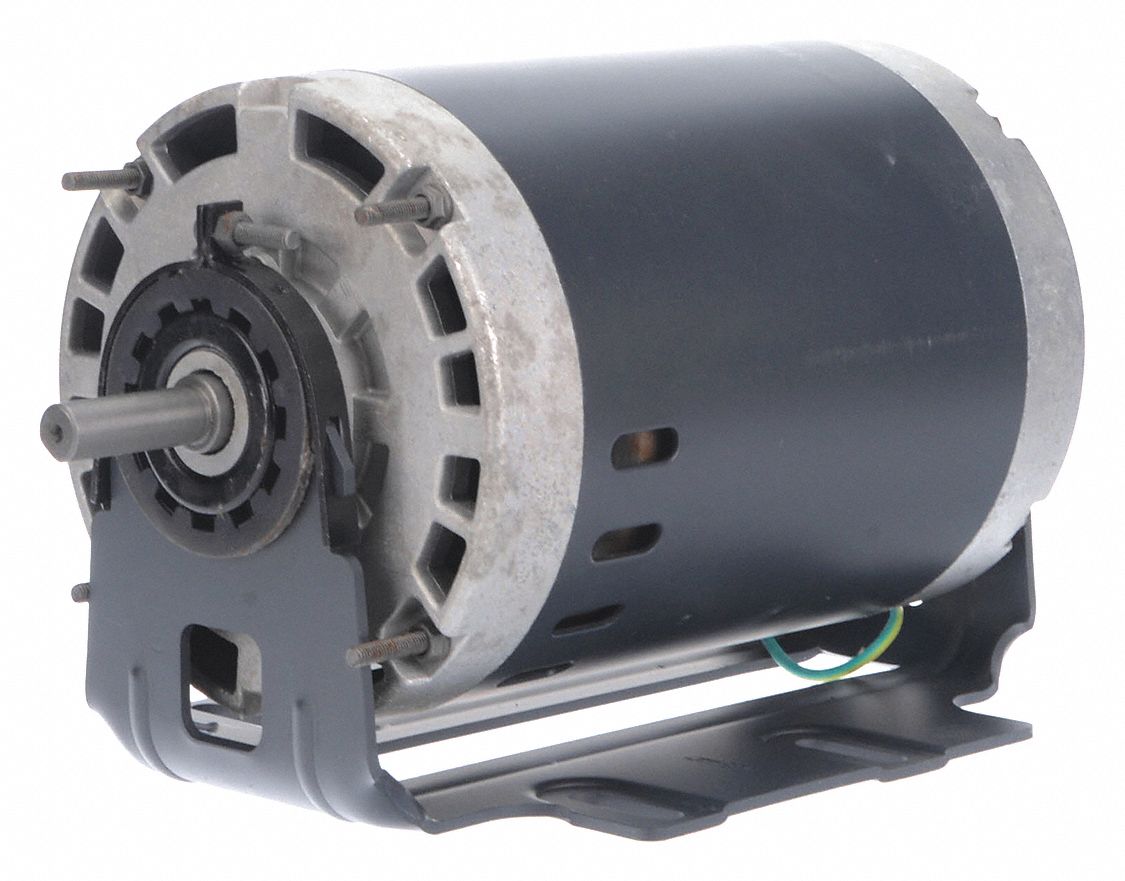

DAYTON Motor, 1/4, 1/8 HP, 1725/1140 RPM, 115 V

Belt Drive Motor, Split-Phase, 1/4, 1/8 HP, Nameplate RPM 1725/1140, Voltage 115, 1 Phase, Frame 56Z, Open Dripproof, Full Load Amps 6.2/4.0, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.35, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 1/2 In., Shaft Length 1-1/2 In., Includes 1/2 to 5/8 In. Diameter Shaft Bushing, 3/16 x 3/16 x 1 1/4 In. Shaft Key
  • Grainger Item #6K425
    Price (ea.)$173.83
    BrandDAYTON
    Mfr. Model #6K425
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)18.0
    Availability Typically in Stock
    Catalog Page No.81
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Sale Item
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemBelt Drive Motor
Motor TypeSplit-Phase
HP1/4, 1/8
Nameplate RPM1725/1140
Voltage115
Frame56Z
EnclosureOpen Dripproof
MountingCradle
Hz60
Full Load Amps6.2/4.0
Thermal ProtectionAuto
Insulation ClassB
Service Factor1.35
BearingsBall
Max. Ambient Temp.40 Degrees C
RotationCW/CCW
Shaft Dia.1/2"
Shaft Length1-1/2"
Length Less Shaft9-1/16"
Body Dia.5-5/8"
Stud Pattern3-5/8 x 3-5/8"
Resilient Ring Dia.2-1/2"
Ring to Ring Center8-7/8"
Nominal Efficiency50.0%
DutyContinuous
RPM Range1400-1800
Phase1
StandardsUL Recognized (E37403), CSA Certified (247478), CE
Footnotes45,66
Includes1/2 to 5/8" Diameter Shaft Bushing, 3/16 x 3/16 x 1 1/4" Shaft Key

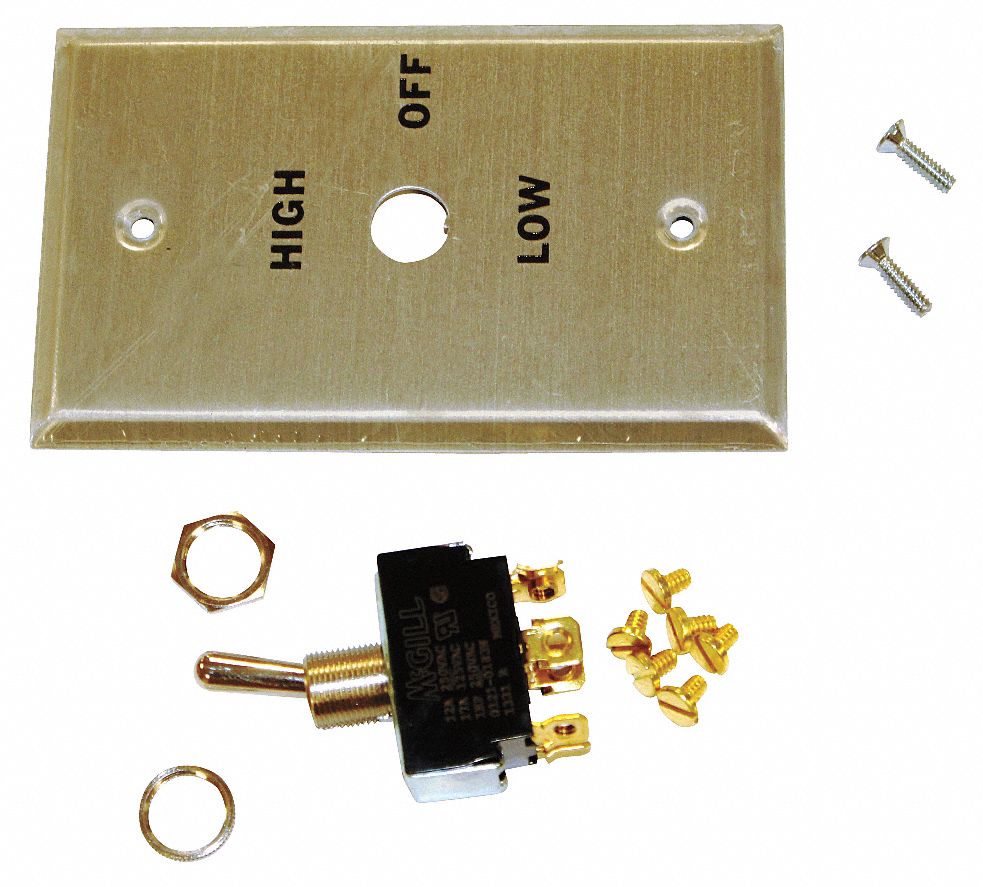

Optional Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

1DGZ9

Price (ea.):

$19.42
