DAYTON Motor, 1/4 HP, Split Ph, 1725 RPM, 115 V

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Belt Drive Motor, Split-Phase, 1/4 HP, Nameplate RPM 1725, Voltage 115, 1 Phase, Frame 48Y, Open Dripproof, Full Load Amps 4.8, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.35, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 1/2 In., Shaft Length 1-1/2 In.

Grainger Item #	5K907
Price (ea.)	$97.45
Brand	DAYTON
Mfr. Model #	5K907
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.32
Availability	Typically in Stock
Catalog Page No.	81
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

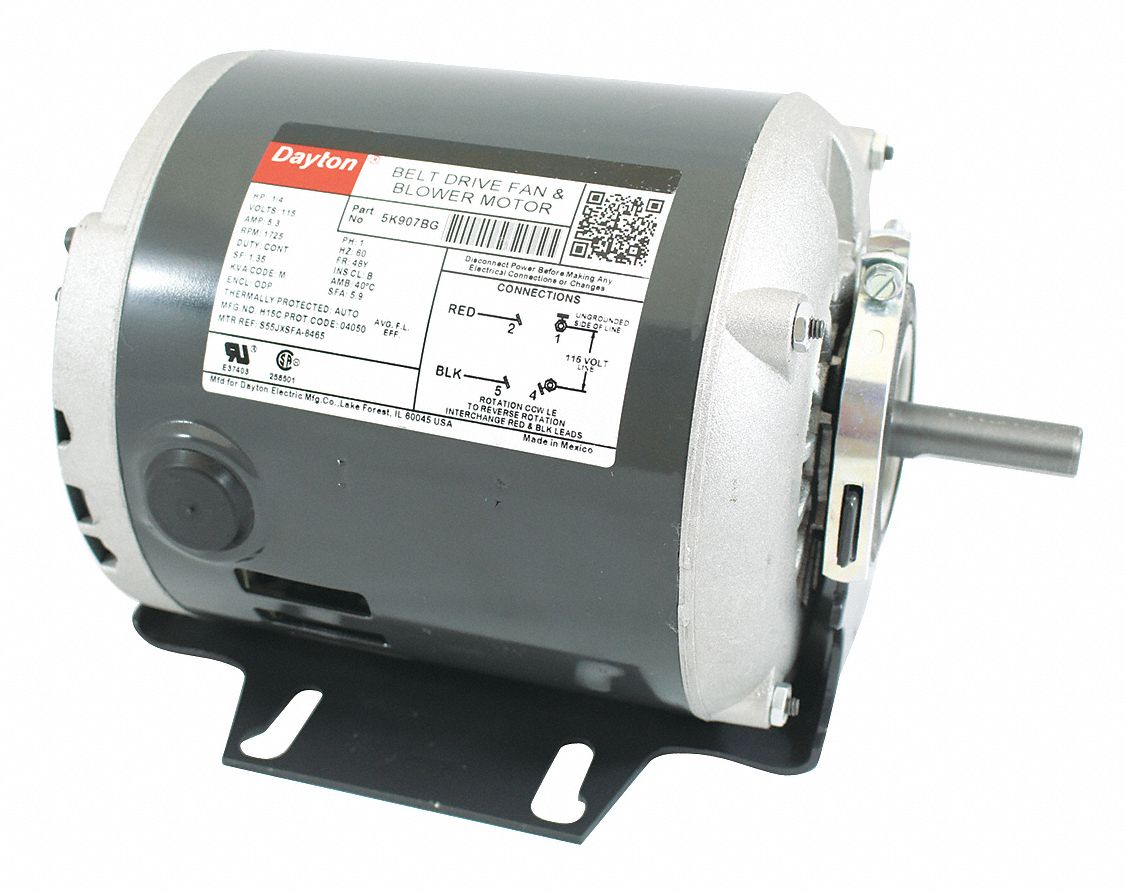

Motor, 1/4 HP, Split Ph, 1725 RPM, 115 V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Belt Drive Motor
Motor Type		Split-Phase
HP		1/4
Nameplate RPM		1725
Voltage		115
Frame		48Y
Enclosure		Open Dripproof
Mounting		Cradle
Hz		60
Full Load Amps		4.8
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.35
Bearings		Sleeve
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1/2"
Shaft Length		1-1/2"
Body Dia.		5-5/8"
Resilient Ring Dia.		2-1/2"
Duty		Continuous
RPM Range		1400-1800
Phase		1
