HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Axial Fans

8In W

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Axial Fan, Shape SquareCFM @ 0.000-In. SP 36.5, Voltage 24VDC, 0.05 Amps, 1.3 Watts, Electrical Connections 12 In. Leads, 31 dBA, Bearings Sleeve, - Hz, - Phase, Fan RPM 2700, Height 3-1/8 In., Width 3-1/8 In., Depth 1 In.Mounting Position Vertical, Mounting Eye O.C. 2-13/16 In., Motor Type Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene Terephthalate, Housing Material PBT Plastic, Housing Finish Black Painted

Grainger Item #	4WT38
Price (ea.)	$36.63
Brand	DAYTON
Mfr. Model #	4WT38
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.25
Availability	Clearance - limited quantity available
Catalog Page No.	4471
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Axial Fan
Shape		Square
CFM @ 0.000-In. SP		36.5
Voltage		24VDC
Amps		0.05
Watts		1.3
Electrical Connections		12" Leads
dBA		31
Bearings		Sleeve
Fan RPM		2700
Height		3-1/8"
Width		3-1/8"
Depth		1"
Mounting Position		Vertical
Mounting Eye O.C.		2-13/16"
Motor Type		Brushless DC
Motor Insulation		Class A
Thermal Protection		Impedance
Max. Ambient Temp.		158 Degrees F
Blade Material		Polybutylene Terephthalate
Housing Material		PBT Plastic
Housing Finish		Black Painted
Standards		UL and cUL Component Recognized

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Item #	Description	Brand Mfr. Model #	Availability	Price
4YD96	Fan Guard, Wire, 3 In D >More Details... Country of Origin: Taiwan	DAYTON 4YD96	Typically in Stock	$2.23
Be the First to Write a Review



4YD95	Pl Filter Guard Assy >More Details... Country of Origin: Taiwan	DAYTON 4YD95	Typically in Stock	$3.70
Be the First to Write a Review



4YD94	Fan Guard, PL, 3 5/32D >More Details... Country of Origin: Taiwan	DAYTON 4YD94	Typically in Stock	$1.47
Be the First to Write a Review



4YD93	Air Filter, 45 Ppi, Fan Size 3 1/8 In, Pk5 >More Details... Country of Origin: Taiwan	DAYTON 4YD93	Typically in Stock	$2.87
Be the First to Write a Review



4YD92	Air Filter, 30 Ppi, Fan Size 3 1/8 In, Pk5 >More Details... Country of Origin: Taiwan	DAYTON 4YD92	Typically in Stock	$2.88
Be the First to Write a Review

HVAC and Refrigeration > Cooling Fans and Accessories > Axial Fans

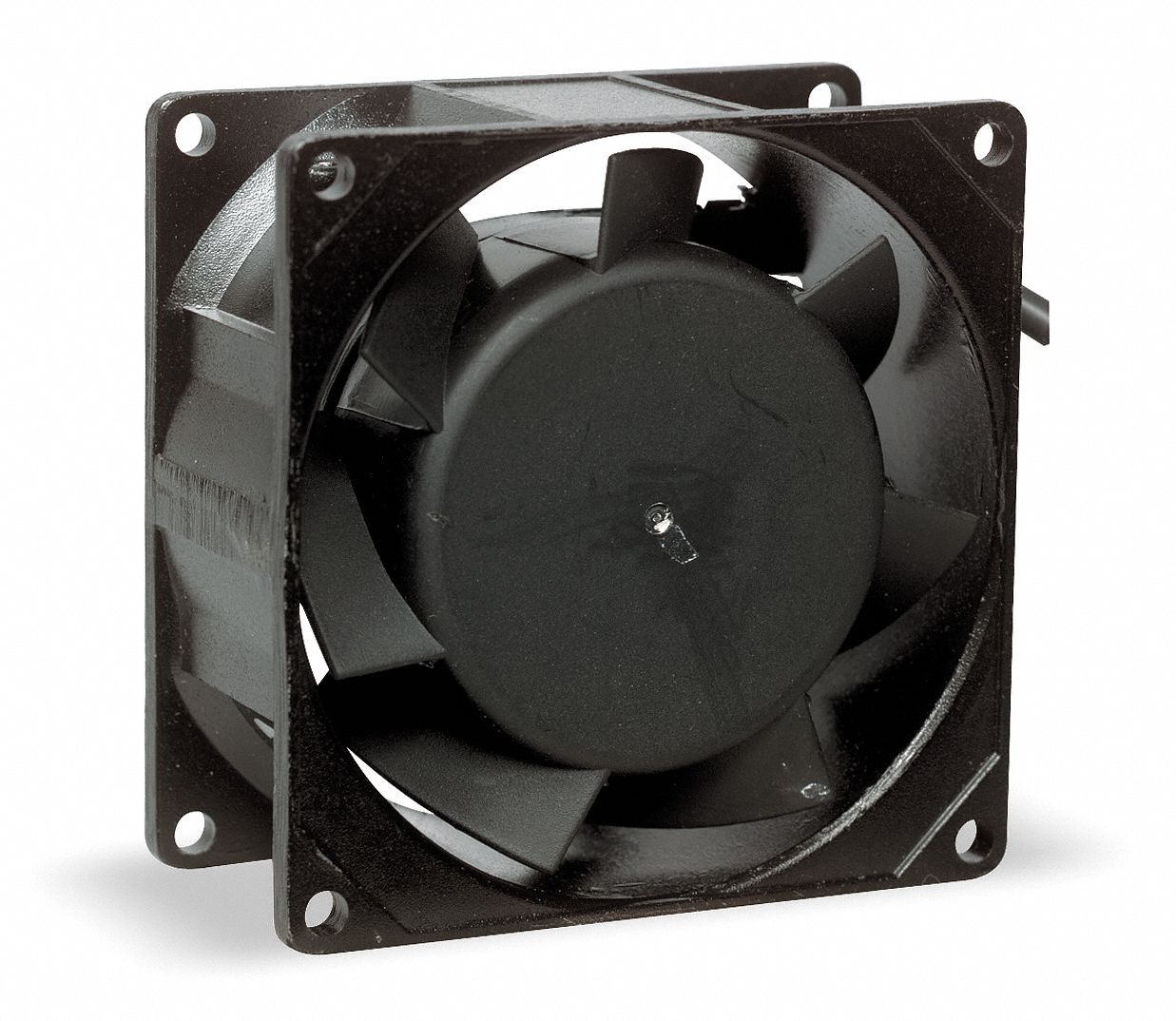

DAYTON Axial Fan, 24VDC, 3-1/8In H, 3-1/8In W
