HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

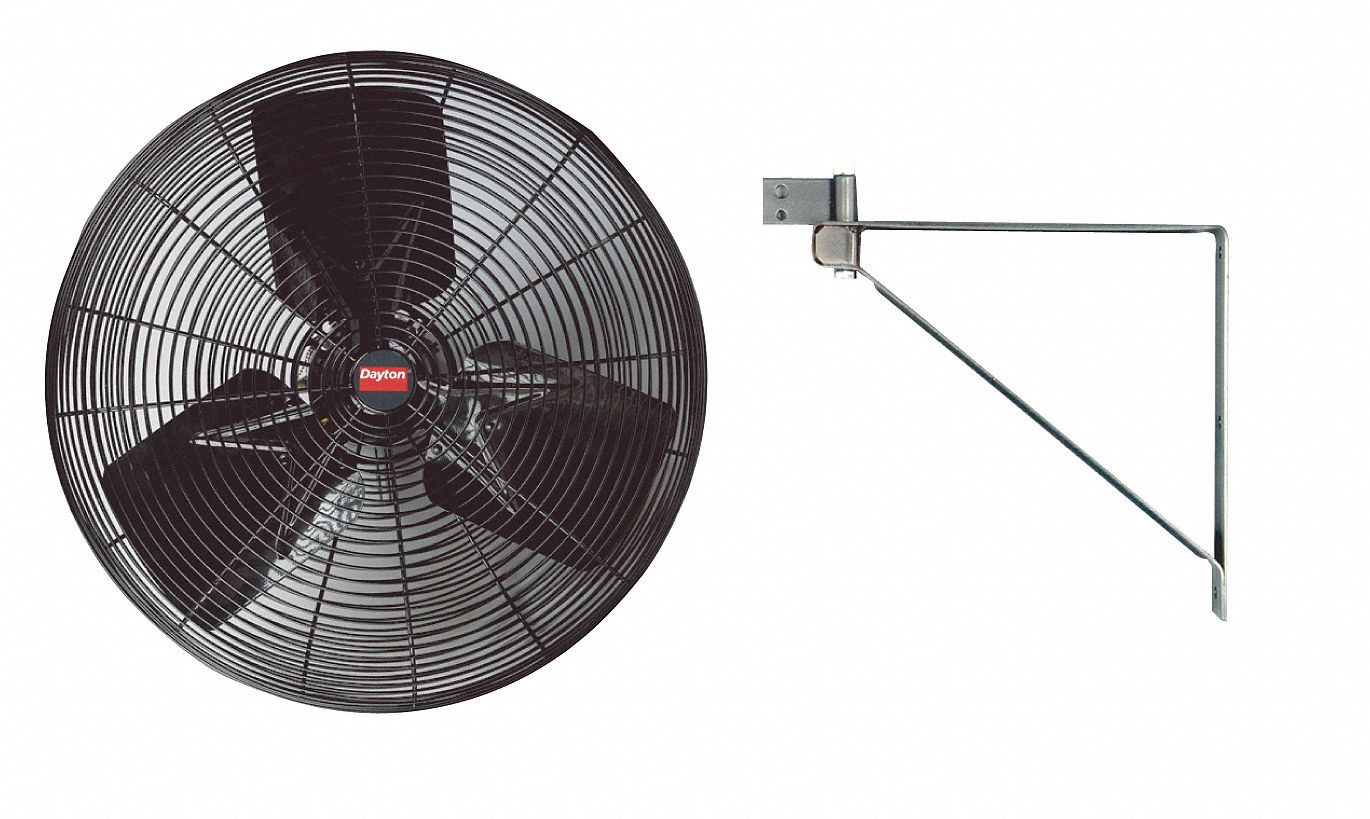

DAYTON Air Circulator, 18 In, 3480 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 18 In., Stationary, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 3480, CFM Low 2460, Air Velocity (FPM) @ 20 Ft. 330/273, Motor HP 1/5, Motor RPM 1120/1030, Operating Amps 1.88/1.36, Mounting Location Wall, Fan RPM 1120/1030, Commercial, Assembled UnassembledCFM/Watt 26.2/25.6Includes Wall Bracket and Secondary Support Cable

Grainger Item #	6ALE7
Price (ea.)	$225.75
Brand	DAYTON
Mfr. Model #	6ALE7
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	30.08
Availability	Typically in Stock
Catalog Page No.	4443
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Circulator
Blade Dia.		18"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		3480
CFM Low		2460
Air Velocity (FPM) @ 20 Ft.		330/273
Motor HP		1/5
Motor RPM		1120/1030
Operating Amps		1.88/1.36
Mounting Location		Wall
Fan RPM		1120/1030
Environmental Applications		Commercial
Assembled		Unassembled
CFM/Watt		26.2/25.6
Air Velocity (FPM) @ 10 Ft.		480/420
Air Velocity (FPM) @ 40 Ft		120/80
Air Velocity (FPM) @ 60 Ft.		24/0
Sound Level		59dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		225/160
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Open Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Height		37 1/2"
Width		21-5/8"
Max. Depth		23"
Cord Length		9 ft.
Number of Blades		3
Blade Material		Aluminum
Shaft Dia.		12mm
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Gloss Black Powder Coat
Application		Spot Cooling and People Cooling
Standards		UL/cUL
Includes		Wall Bracket and Secondary Support Cable
