HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

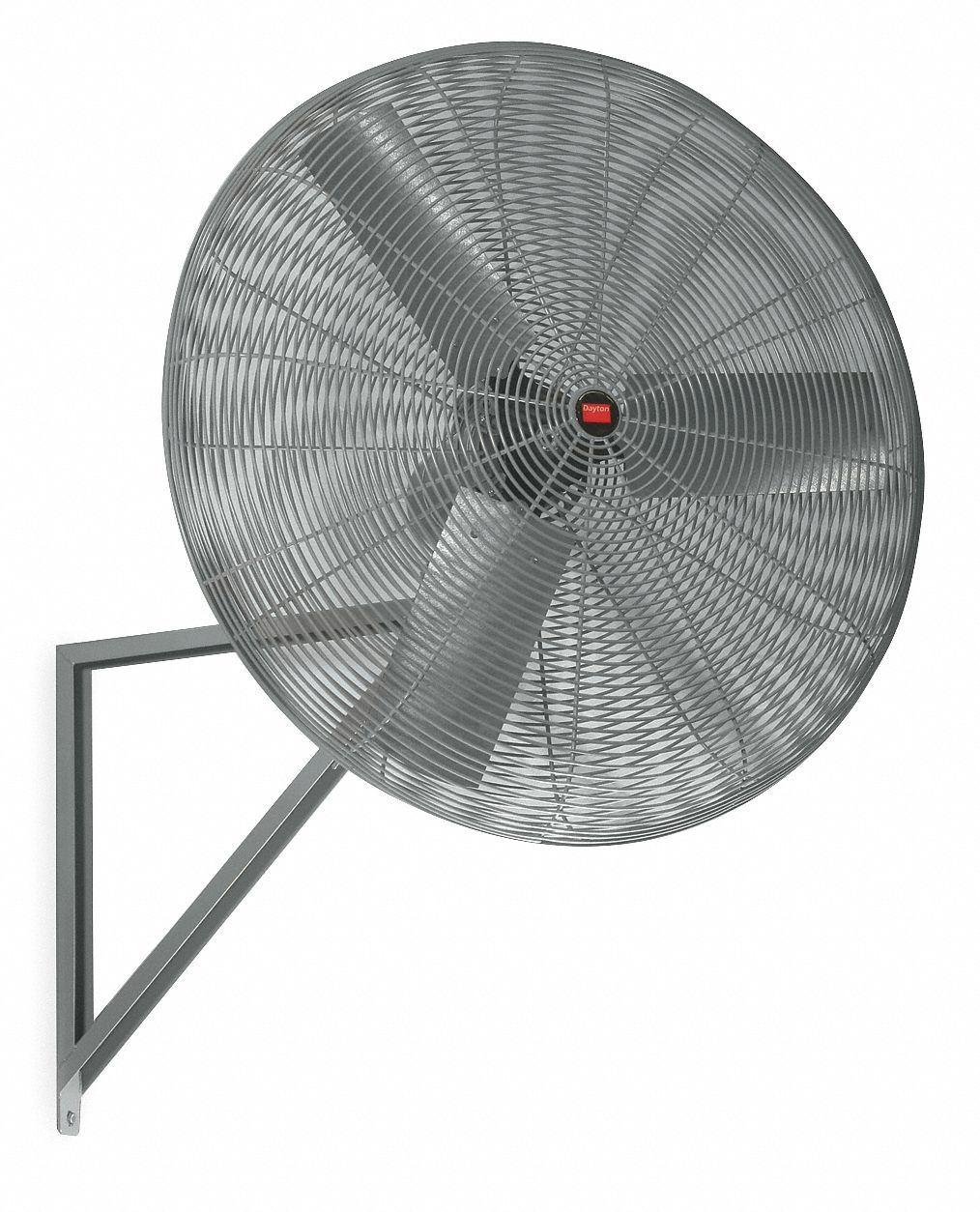

DAYTON Air Circ, 36 In, 12, 500 cfm, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 36 In., Stationary, Non-Oscillating, Speeds 1, Voltage 208-230/460V, 3 Phase, CFM High 12, 500Air Velocity (FPM) @ 20 Ft. 1000, Motor HP 1/2, Motor RPM 1075, Operating Amps 1.5/0.75, Mounting Location Wall, Ceiling or IBeam, Fan RPM 1075, Industrial, Assembled AssembledOutside Dia. 39 In., Includes Conduit Box, Mounting Device and Mounting Bolts

Grainger Item #	3PEH2
Price (ea.)	$710.00
Brand	DAYTON
Mfr. Model #	3PEH2
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	89.0
Availability	Typically in Stock
Catalog Page No.	4433
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Circulator
Blade Dia.		36"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		1
Voltage		208-230/460V
Phase		3
CFM High		12,500
Air Velocity (FPM) @ 20 Ft.		1000
Motor HP		1/2
Motor RPM		1075
Operating Amps		1.5/0.75
Mounting Location		Wall, Ceiling or IBeam
Fan RPM		1075
Environmental Applications		Industrial
Assembled		Assembled
Air Velocity (FPM) @ 10 Ft.		1330
Air Velocity (FPM) @ 40 Ft		415
Air Velocity (FPM) @ 60 Ft.		240
Sound Level		82dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		500
Motor Type		3 Phase
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		39"
Height		39"
Width		39"
Max. Depth		25-1/2"
Number of Blades		3
Blade Material		Galvanized Steel
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Gray Polyester Powder Coat
Application		Industrial Spot Cooling
Standards		UL, cUL, OSHA
Includes		Conduit Box, Mounting Device and Mounting Bolts
