DAYTON Air Circulator, 36 In, 12, 250 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 36 In., Mobile, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 12, 250, CFM Low 8350, Air Velocity (FPM) @ 20 Ft. 490/370, Motor HP 1/2, Motor RPM 850/750, Operating Amps 4.9/4.5Fan RPM 850/750, Outdoor, Assembled Partially AssembledOutside Dia. 41 In., Includes Cord Wrap and Tilt Wheel, 8 In. Steel and Rubber Casters

Grainger Item #	2RDZ3
Price (ea.)	$1,007.00
Brand	DAYTON
Mfr. Model #	2RDZ3
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	115.0
Availability	Typically in Stock
Catalog Page No.	4437
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

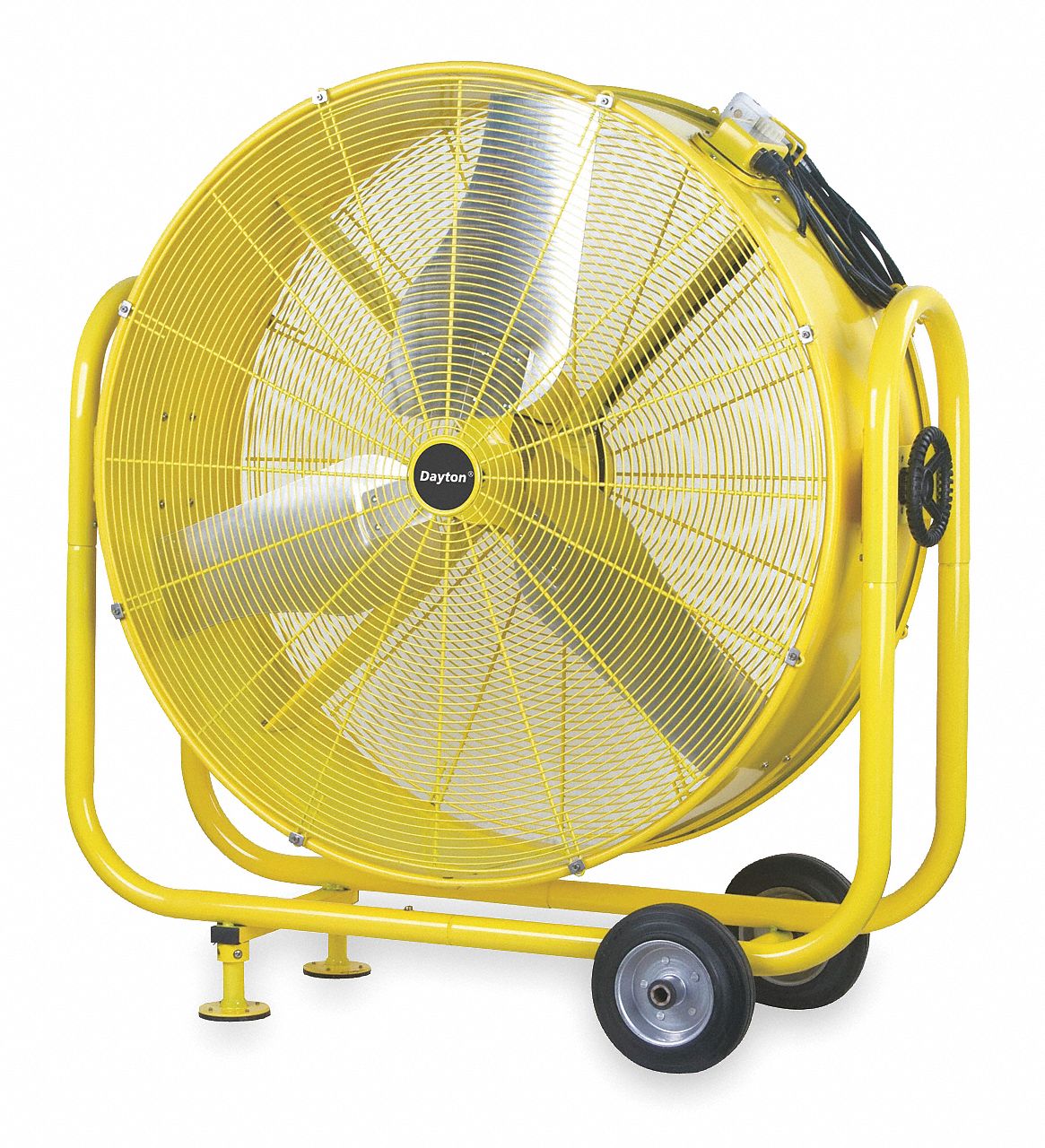

Air Circulator, 36 In, 12, 250 cfm, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Circulator
Blade Dia.		36"
Mobile/Stationary		Mobile
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		12,250
CFM Low		8350
Air Velocity (FPM) @ 20 Ft.		490/370
Motor HP		1/2
Motor RPM		850/750
Operating Amps		4.9/4.5
Fan RPM		850/750
Environmental Applications		Outdoor
Assembled		Partially Assembled
Air Velocity (FPM) @ 40 Ft		260/220
Air Velocity (FPM) @ 60 Ft.		210/80
Max. Ambient Temp.		104 Degrees F
Hz		60
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Sealed Ball
Outside Dia.		41"
Height		45"
Width		43"
Max. Depth		15"
Cord Length		9 ft.
Number of Blades		3
Blade Material		Aluminum
Shaft Dia.		5/8"
Housing Material		Galvanized Steel with Yellow Polyester Powder Coat
Guard Material		Galvanized Steel
Wire Guard Finish		Yellow Polyester Powder Coat
Application		Spot Cooling
Standards		UL/CSA/OSHA
Includes		Cord Wrap and Tilt Wheel, 8" Steel and Rubber Casters
