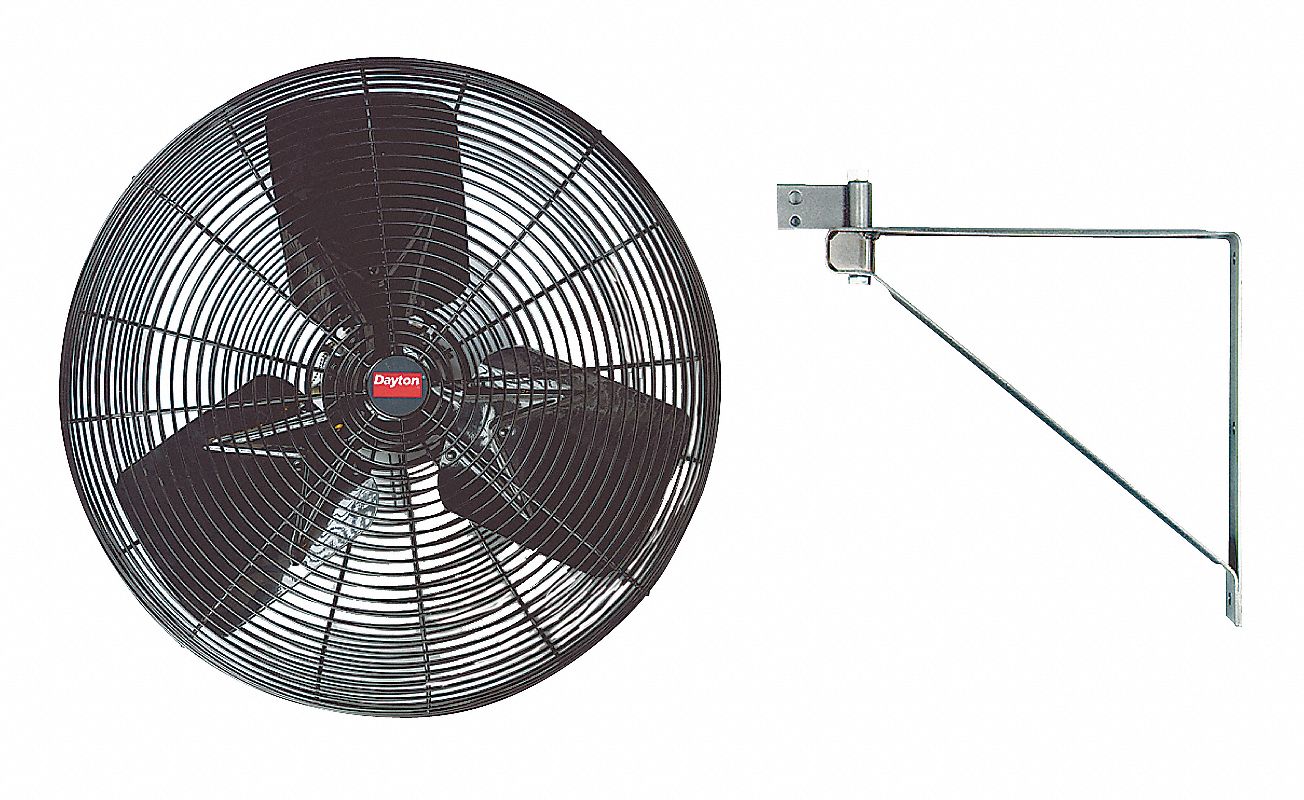

DAYTON Air Circulator, 24 In, 5450 cfm, 115V

Air Circulator, Blade Dia. 24 In., Stationary, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 5450, CFM Low 3800, Air Velocity (FPM) @ 20 Ft. 590/300, Motor HP 1/4, Motor RPM 1100/900, Operating Amps 3.4/2.0, Mounting Location Wall or Ceiling, Fan RPM 900/1100, Commercial, Assembled UnassembledCFM/Watt 15.1/17.7, Outside Dia. 27 In., Includes Wall/Ceiling Bracket and Secondary Support Cable
  • Grainger Item #2MA10
    Price (ea.)$264.75
    BrandDAYTON
    Mfr. Model #2MA10
    UNSPSC #40101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)41.0
    Availability Typically in Stock
    Catalog Page No.4443
    Country of Origin
    (Country of Origin is subject to change.)    		China
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemAir Circulator
Blade Dia.24"
Mobile/StationaryStationary
Oscillating/Non-OscillatingNon-Oscillating
Speeds2
Voltage115V
Phase1
CFM High5450
CFM Low3800
Air Velocity (FPM) @ 20 Ft.590/300
Motor HP1/4
Motor RPM1100/900
Operating Amps3.4/2.0
Mounting LocationWall or Ceiling
Fan RPM900/1100
Environmental ApplicationsCommercial
AssembledUnassembled
CFM/Watt15.1/17.7
Air Velocity (FPM) @ 10 Ft.1000/700
Air Velocity (FPM) @ 40 Ft360/180
Air Velocity (FPM) @ 60 Ft.150/115
Sound Level74dBA
Max. Ambient Temp.105 Degrees F
Hz60
Watts355/215
Motor TypePermanent Split Capacitor
Drive TypeDirect
Motor EnclosureOpen Air-Over
Motor InsulationClass A
Thermal ProtectionAuto
Bearing TypeBall
Outside Dia.27"
Height40-1/2"
Width27"
Max. Depth23"
Cord Length10 ft.
Number of Blades3
Blade MaterialGloss Black Powder Coated Steel
Shaft Dia.17mm
Housing MaterialSteel
Guard MaterialSteel
Wire Guard FinishGloss Black Powder Coat
ApplicationSpot Cooling and People Cooling
StandardsUL/cUL
IncludesWall/Ceiling Bracket and Secondary Support Cable
