HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

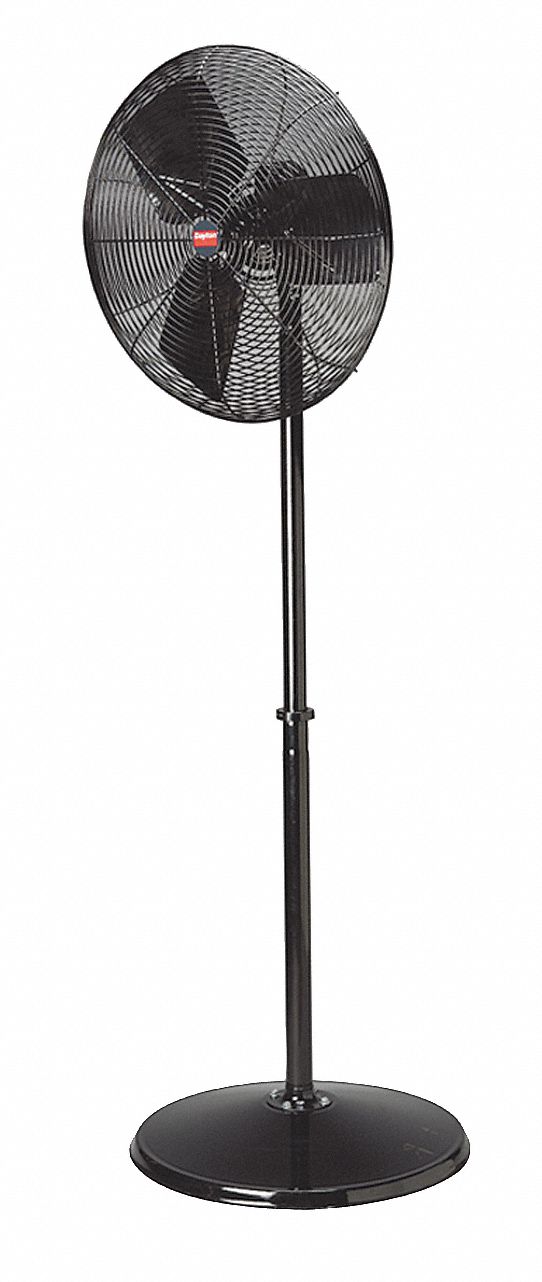

DAYTON Air Circulator, 30 In, 7250 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 30 In., Stationary, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 7250, CFM Low 4650, Air Velocity (FPM) @ 20 Ft. 715/480, Motor HP 1/4, Motor RPM 1100/900, Operating Amps 3.4/2.0, Mounting Location Pedestal, Fan RPM 1100/900, Commercial, Assembled UnassembledCFM/Watt 19.9/24.3, Outside Dia. 33 In., Includes Pedestal, Column and Hex Key

Grainger Item #	1RWB5
Price (ea.)	$349.00
Brand	DAYTON
Mfr. Model #	1RWB5
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	86.0
Availability	Typically in Stock
Catalog Page No.	4443
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Circulator
Blade Dia.		30"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		7250
CFM Low		4650
Air Velocity (FPM) @ 20 Ft.		715/480
Motor HP		1/4
Motor RPM		1100/900
Operating Amps		3.4/2.0
Mounting Location		Pedestal
Fan RPM		1100/900
Environmental Applications		Commercial
Assembled		Unassembled
CFM/Watt		19.9/24.3
Air Velocity (FPM) @ 10 Ft.		1010/680
Air Velocity (FPM) @ 40 Ft		370/350
Air Velocity (FPM) @ 60 Ft.		280/250
Sound Level		77dBA
Max. Ambient Temp.		105 Degrees F
Hz		60
Watts		364/220
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Open Air-Over
Motor Insulation		Class A
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		33"
Height		Adj 64 to 86"
Width		33"
Max. Depth		26"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		17mm
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Gloss Black
Application		Spot Cooling and People Cooling
Standards		UL/cUL
Includes		Pedestal, Column and Hex Key
