HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

DAYTON Air Circulator, 48 In, 19, 100 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 48 In., Stationary, Non-Oscillating, Speeds 1, Voltage 115V, 1 Phase, CFM High 19, 100Air Velocity (FPM) @ 20 Ft. 543, Motor HP 1, Motor RPM 850, Operating Amps 9.1, Mounting Location Ceiling, Fan RPM 850, Industrial, Assembled AssembledIncludes Secondary Safety Support Cable, Ceiling Mount Bracket

Grainger Item #	1LXN3
Price (ea.)	$1,839.00
Brand	DAYTON
Mfr. Model #	1LXN3
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	281.0
Availability	Typically in Stock
Catalog Page No.	4441
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

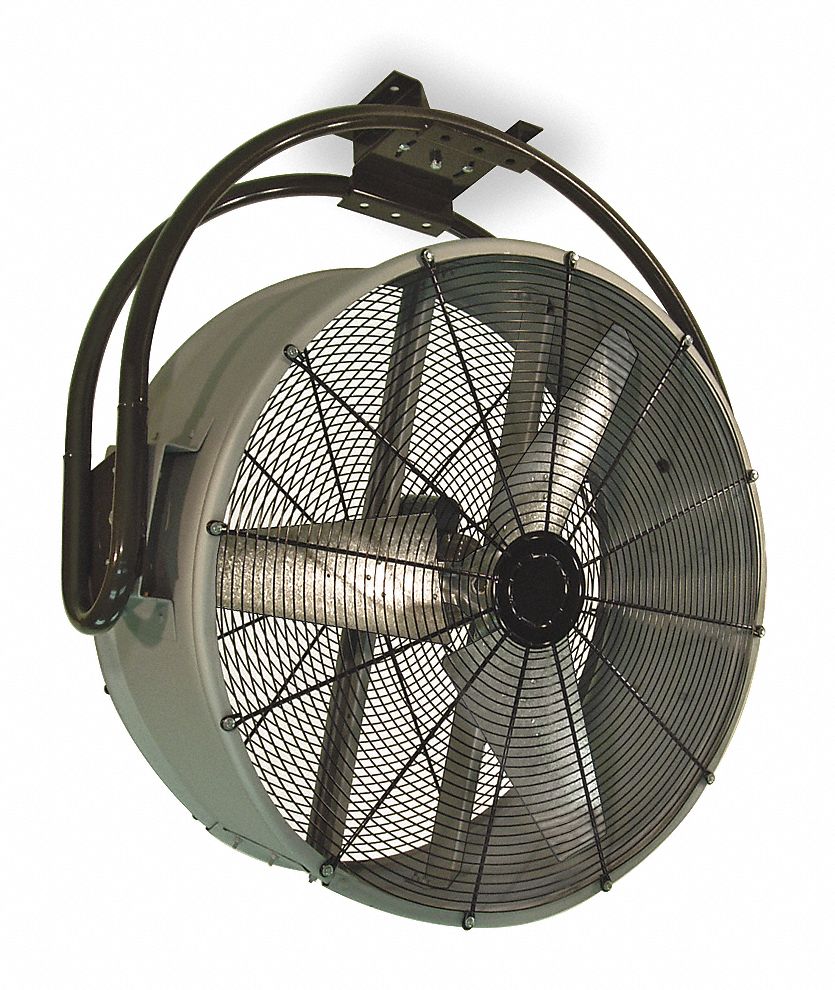

Air Circulator, 48 In, 19, 100 cfm, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Circulator
Blade Dia.		48"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		1
Voltage		115V
Phase		1
CFM High		19,100
Air Velocity (FPM) @ 20 Ft.		543
Motor HP		1
Motor RPM		850
Operating Amps		9.1
Mounting Location		Ceiling
Fan RPM		850
Environmental Applications		Industrial
Assembled		Assembled
Air Velocity (FPM) @ 10 Ft.		735
Air Velocity (FPM) @ 40 Ft		400
Air Velocity (FPM) @ 60 Ft.		320
Air Velocity (FPM) @ 80 Ft.		270
Max. Ambient Temp.		104 Degrees F
Hz		60
Motor Type		Capacitor Start
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Height		61-1/2"
Width		56"
Max. Depth		22"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Black Powder Coat
Application		Spot Cooling and People Cooling
Standards		UL/OSHA
Includes		Secondary Safety Support Cable, Ceiling Mount Bracket

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	1LXN2 Parts Info	Air Circulator, 36 In, 10, 900 cfm, 115V >More Details... Country of Origin: USA	DAYTON 1LXN2	Typically in Stock	$1,179.00
